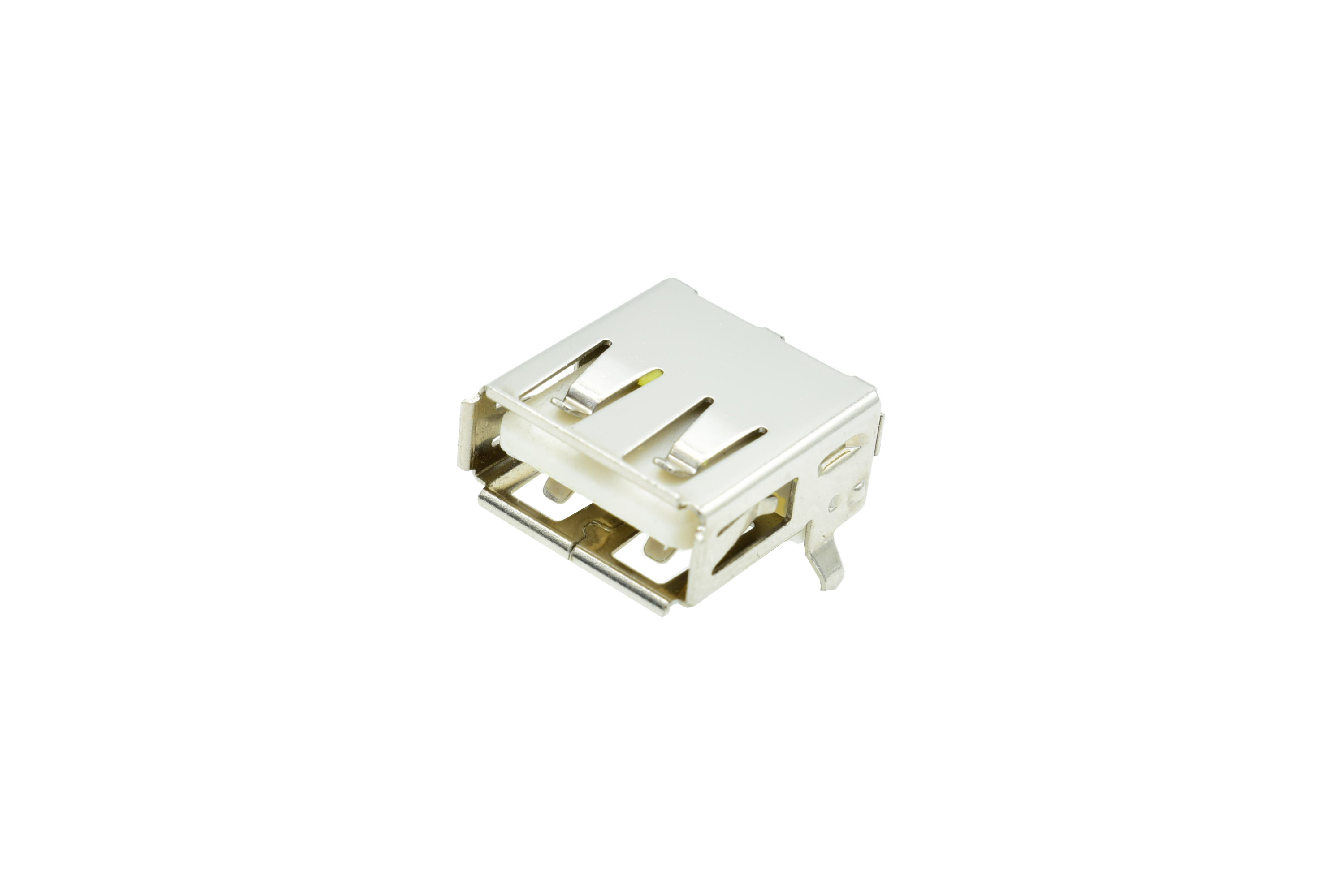

USB-A type connector

Model name: USB-A type female seat (90 degree curved foot)

Performance parameters:

Operating temperature range Temperature: -25~85°
rated load Rated Load: DC12V/0.1A
contact resistance Contact Resistance: <=0.03 ohm
insulation resistance Insulation Resistance: >=100
megaohms Withstand Voltage: AC 500V(50Hz)/min
Insert Force: 3-20N
Life: 5000 times
