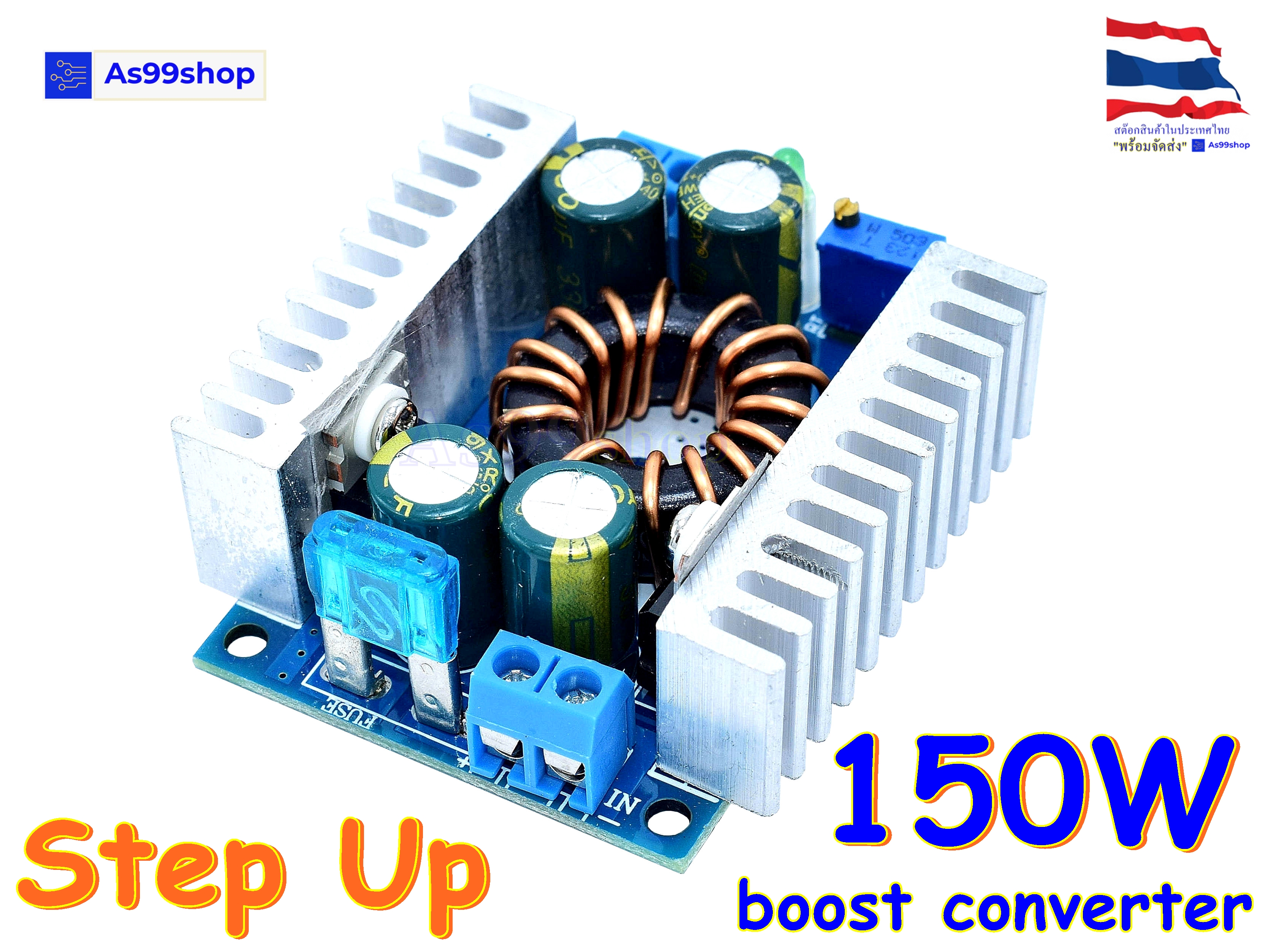

DC-DC boost 8-32V  to 9-46V module 150W high power boost (Step-up)
Specifications:

  • Module name: 150W booster module
  • Module nature: non-isolated boost module (BOOST)
  • Input voltage: two input voltage ranges are optional, (selected through jumpers on the back of the PCB)
  •       1. 8-16V input (for three string lithium battery and 12V battery applications)
  •
  •        2. 10-32V input (for wide input voltage range applications)
  •
  • Input current: 16A (MAX) exceeds 8A, please strengthen the heat dissipation
  • Static working current: 15mA (When 12V rises to 20V, the higher the output voltage, the higher the static current will increase)
  • Output voltage: 9-46V continuously adjustable
  • Output current: 8 A MAX more than 4A, please strengthen the heat dissipation (related to the input and output pressure difference, the greater the pressure difference, the smaller the output current)
  • Output power: Natural heat dissipation 90W, enhanced heat dissipation 150W
  • Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
  • Working frequency: 150KHz
  • Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current, pressure drop)
  • Short circuit protection: yes (input 15A fuse)
  • Input reverse connection protection: none, (if necessary, please connect a diode in the input)
  • Installation method: 4 3mm screws

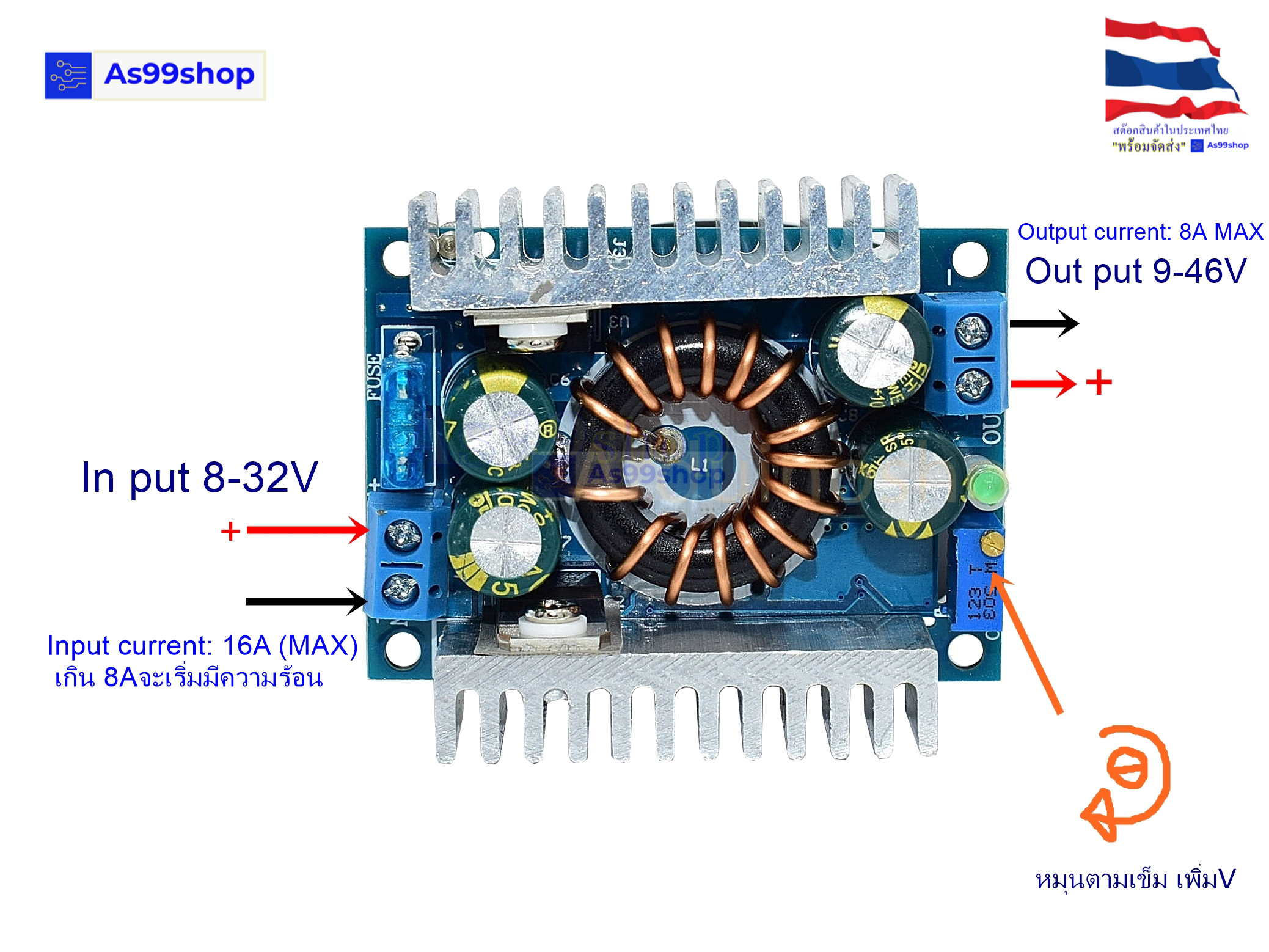

  • Wiring method: the terminal is free of welding output, and the shell is welded output. (V- IN is input, V-OUT is output)
  • Module size: length 60mm width 50mm height 20mm
  • Weight: 80g
  • product description:
  • The ultra-small size and ultra-dense reinforced aluminum radiator make the module's working temperature lower and more stable. Input two 470uF/35V, output two 330uF/50V, 60V output is 220uF/63V switching power supply special high-frequency low-resistance capacitor, so that the output ripple is lower, the onboard LED work indicator, more intuitive when working. Full materials and perfect design are your perfect choice to pursue perfection. The unique PCB hollow design minimizes the instability of the work caused by the temperature changes to the parameters of important parts. There are 4 M3 screw holes on the board for easy installation.

Scope of application:

1. DIY a regulated power supply, the input is 12V, and the output can be adjusted from 12-46V.

2. Power supply for your electronic equipment, you can set the output value according to your system voltage.

3. As a car power supply, power your laptop, PDA or various digital products. Can be equipped with high-grade thickened frosted aluminum alloy shell, directly PK off the ordinary car power supply or inverter on the market, is your best choice if you like metal texture.

4. DIY a high-power notebook mobile power supply: equipped with a large-capacity 12V lithium battery pack, so that your books can be lit wherever you go.

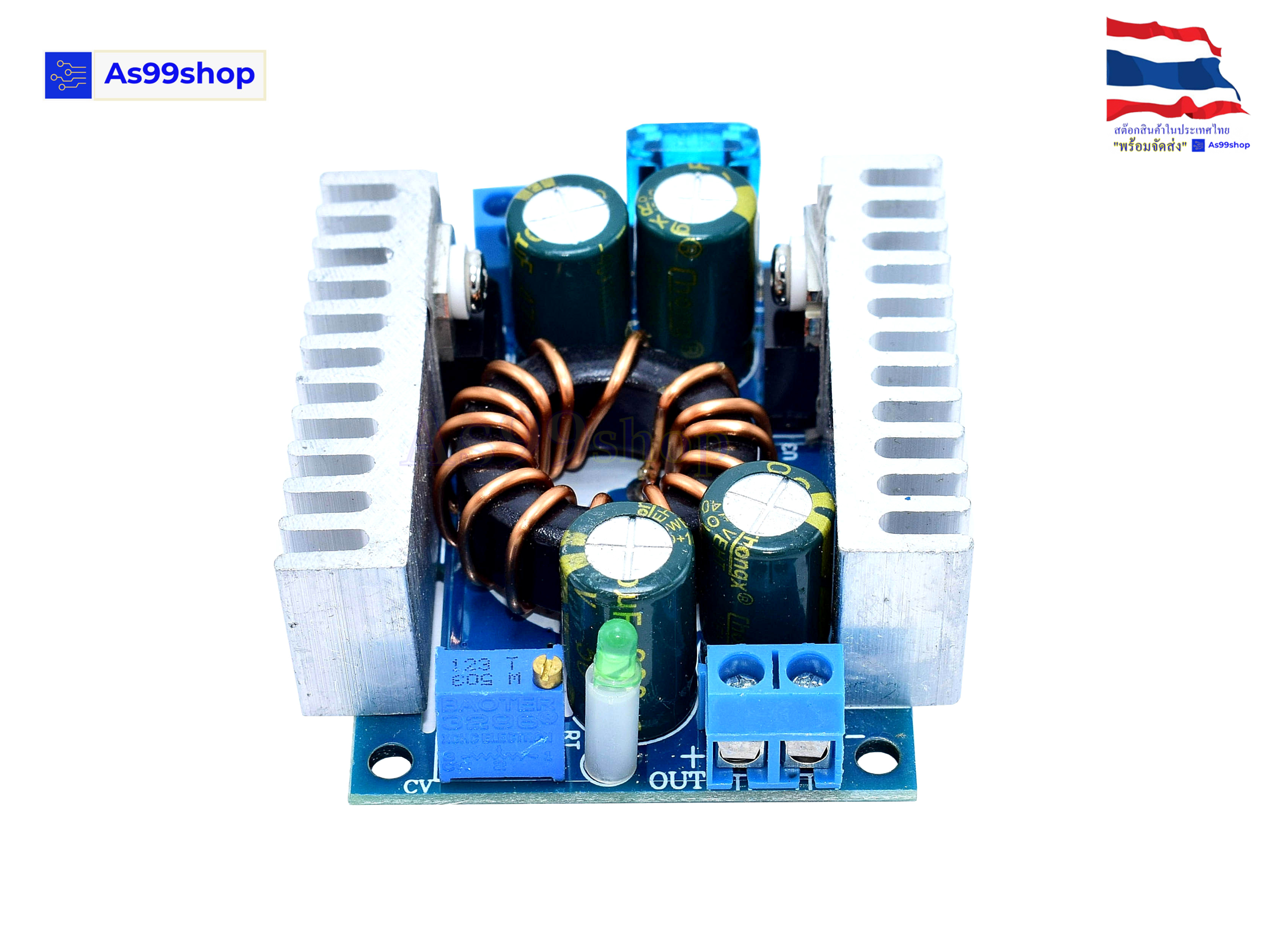

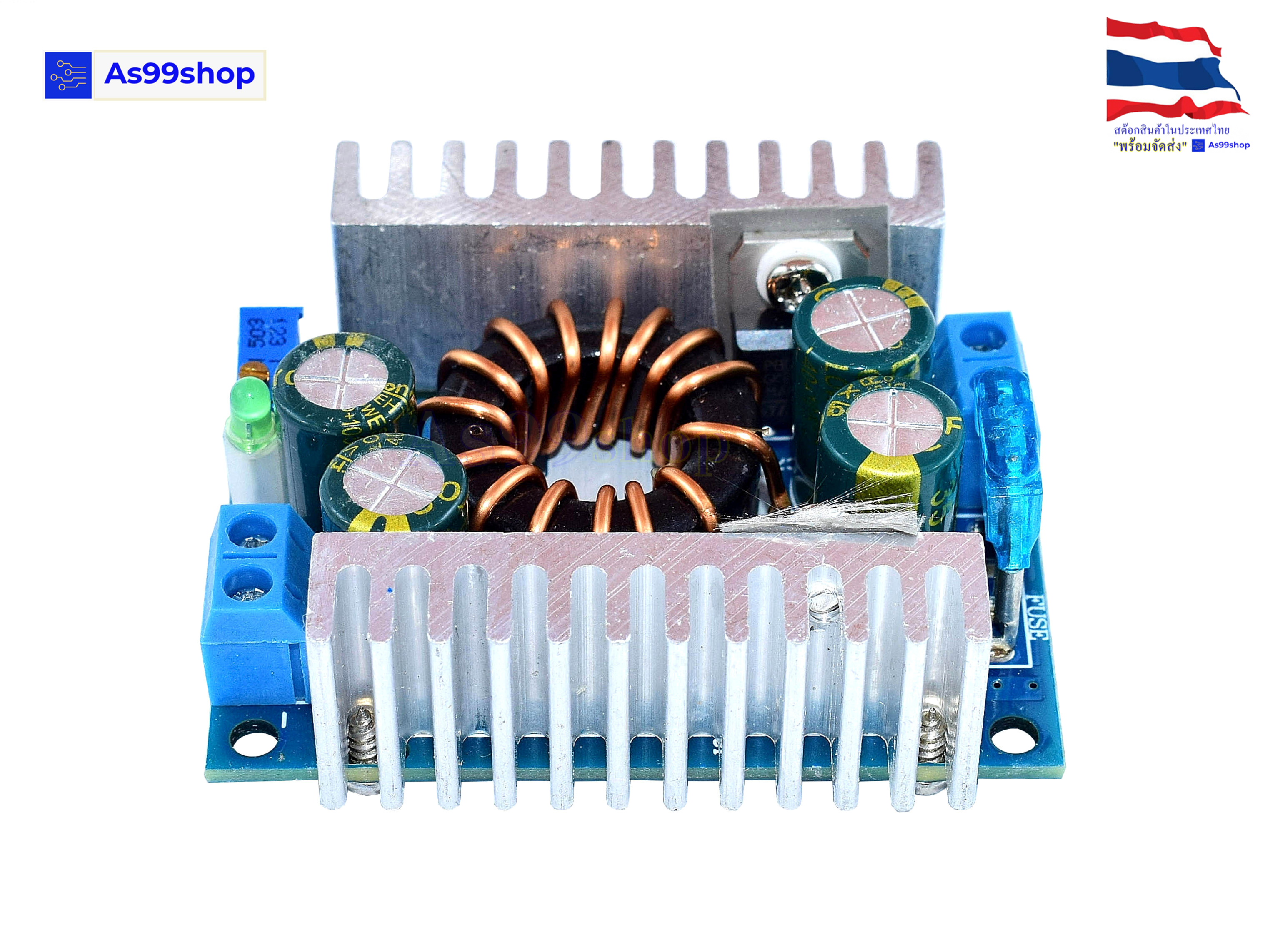

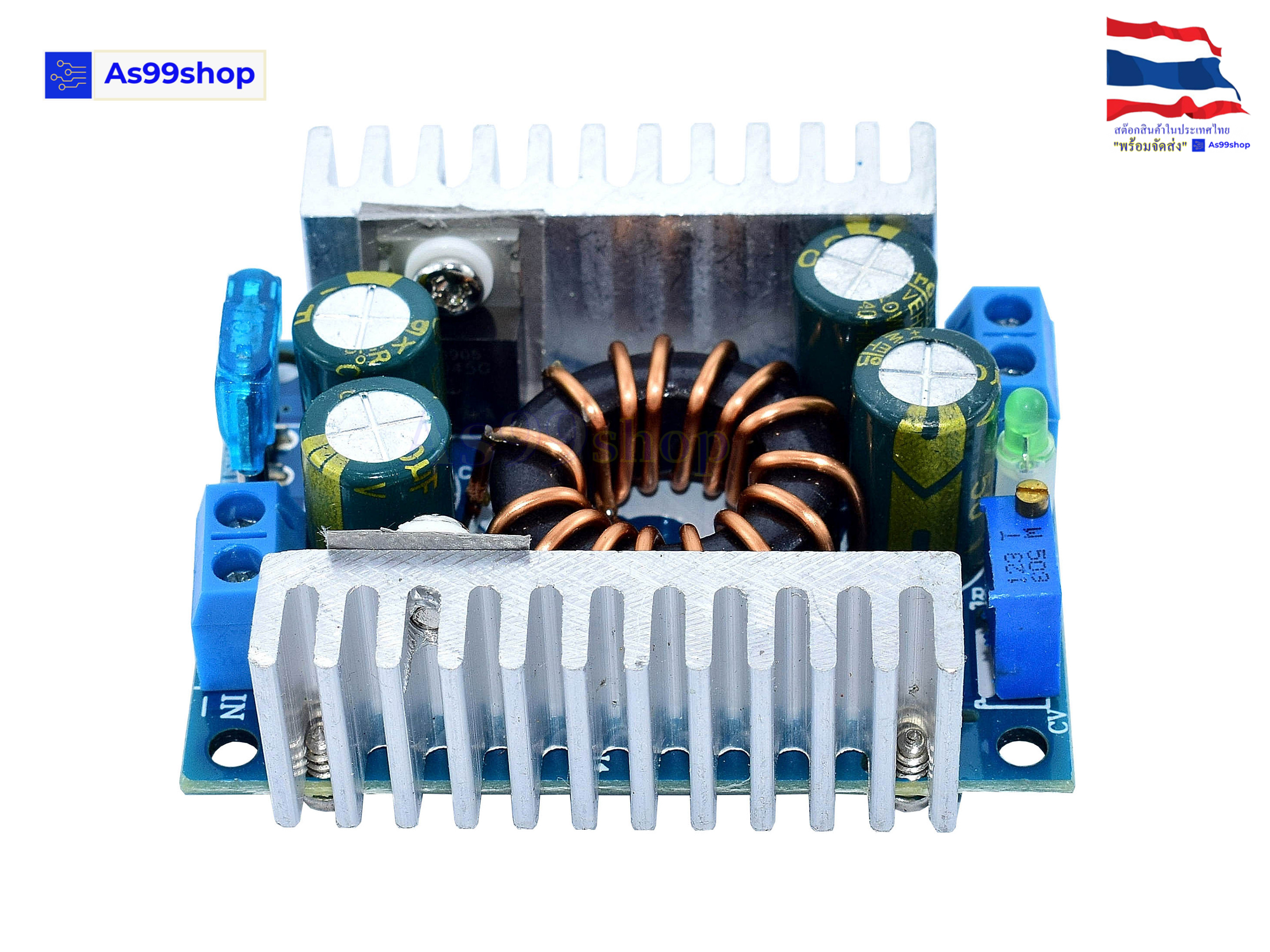

DC-DC boost 8-32V to 9-46V module 150W high power boost (Step-up)
DC-DC boost 8-32V to 9-46V module 150W high power boost (Step-up)
DC-DC boost 8-32V to 9-46V module 150W high power boost (Step-up)
DC-DC boost 8-32V to 9-46V module 150W high power boost (Step-up)
DC-DC boost 8-32V to 9-46V module 150W high power boost (Step-up)
DC-DC boost 8-32V to 9-46V module 150W high power boost (Step-up)
