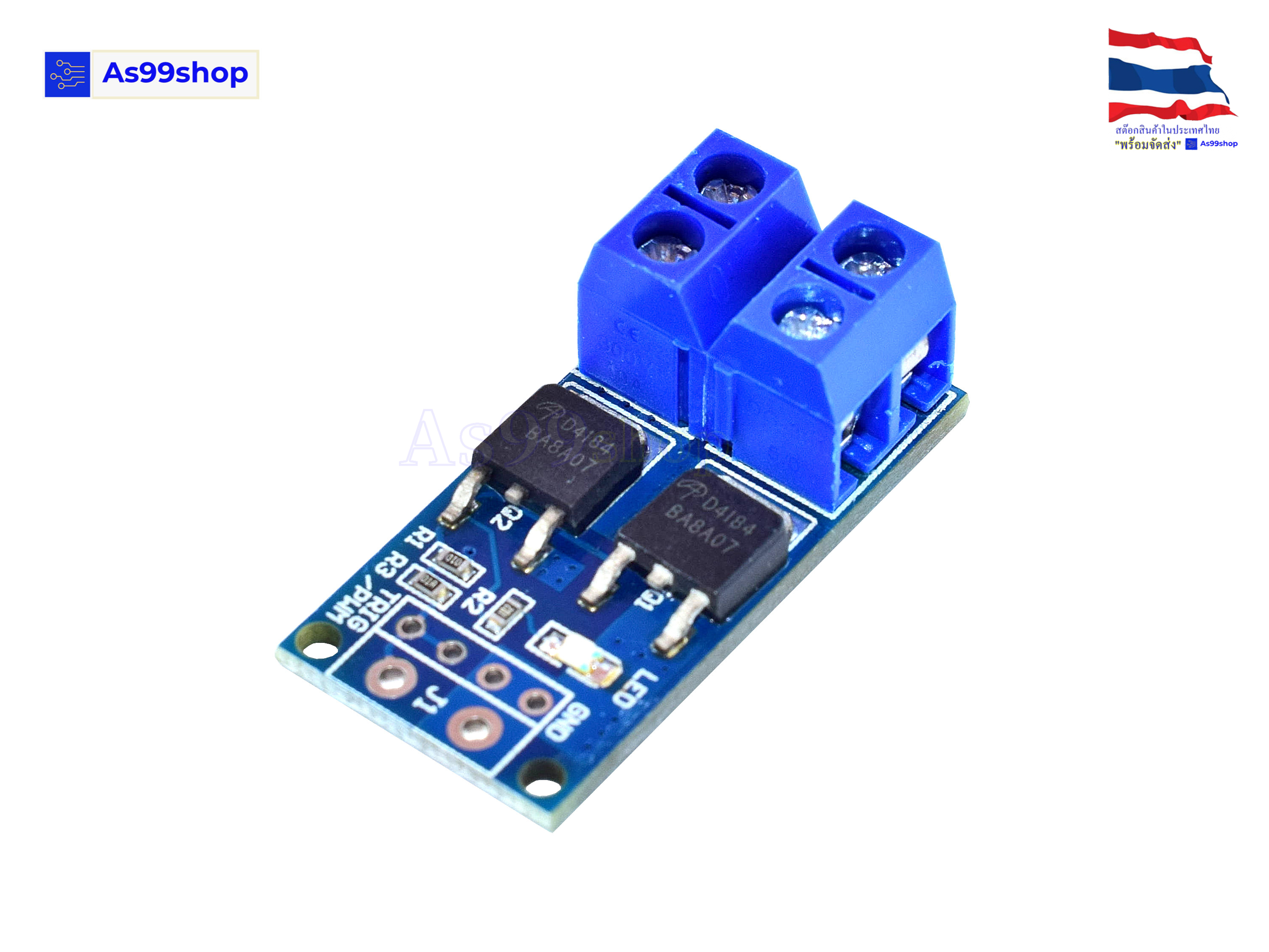

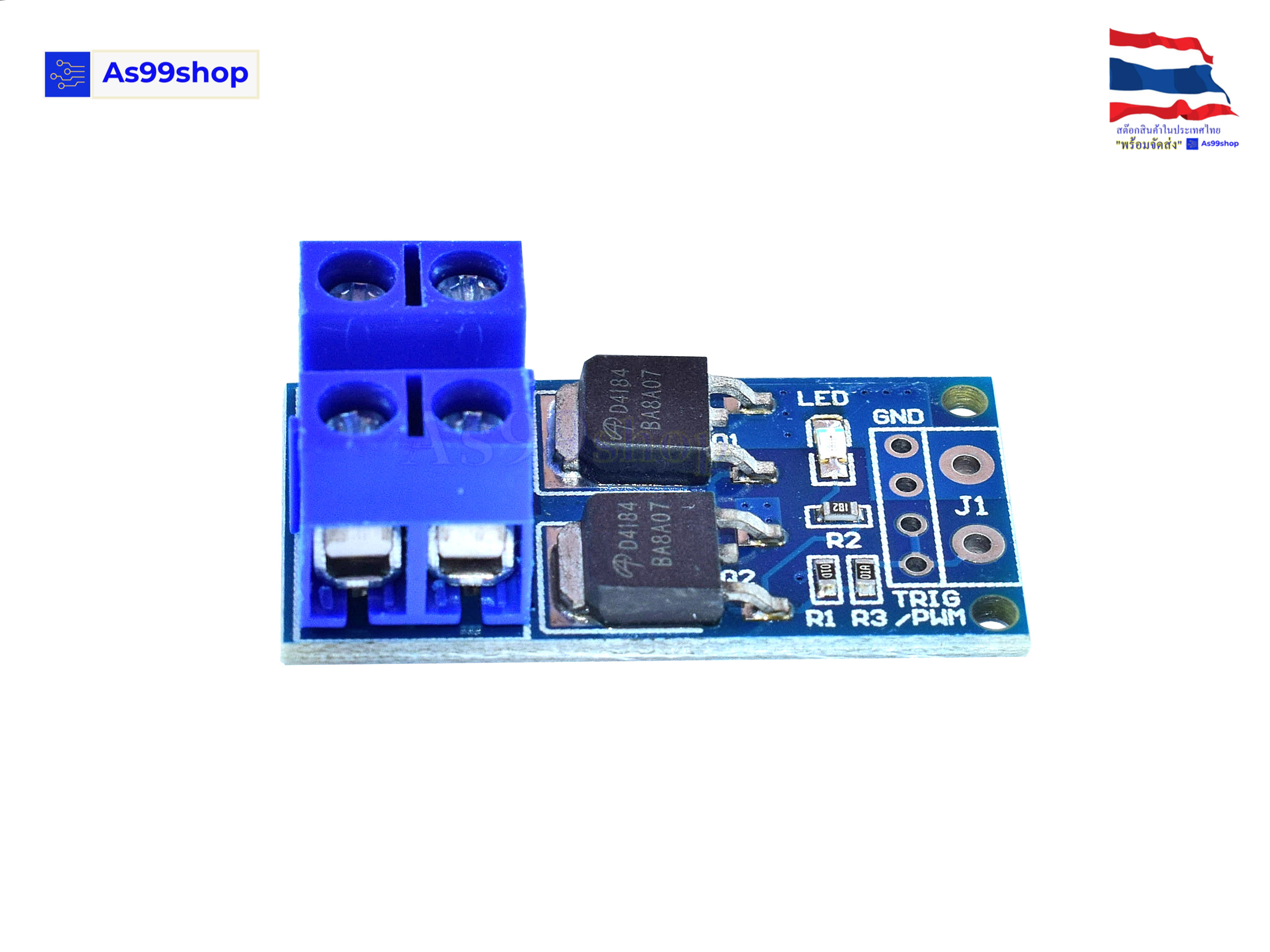

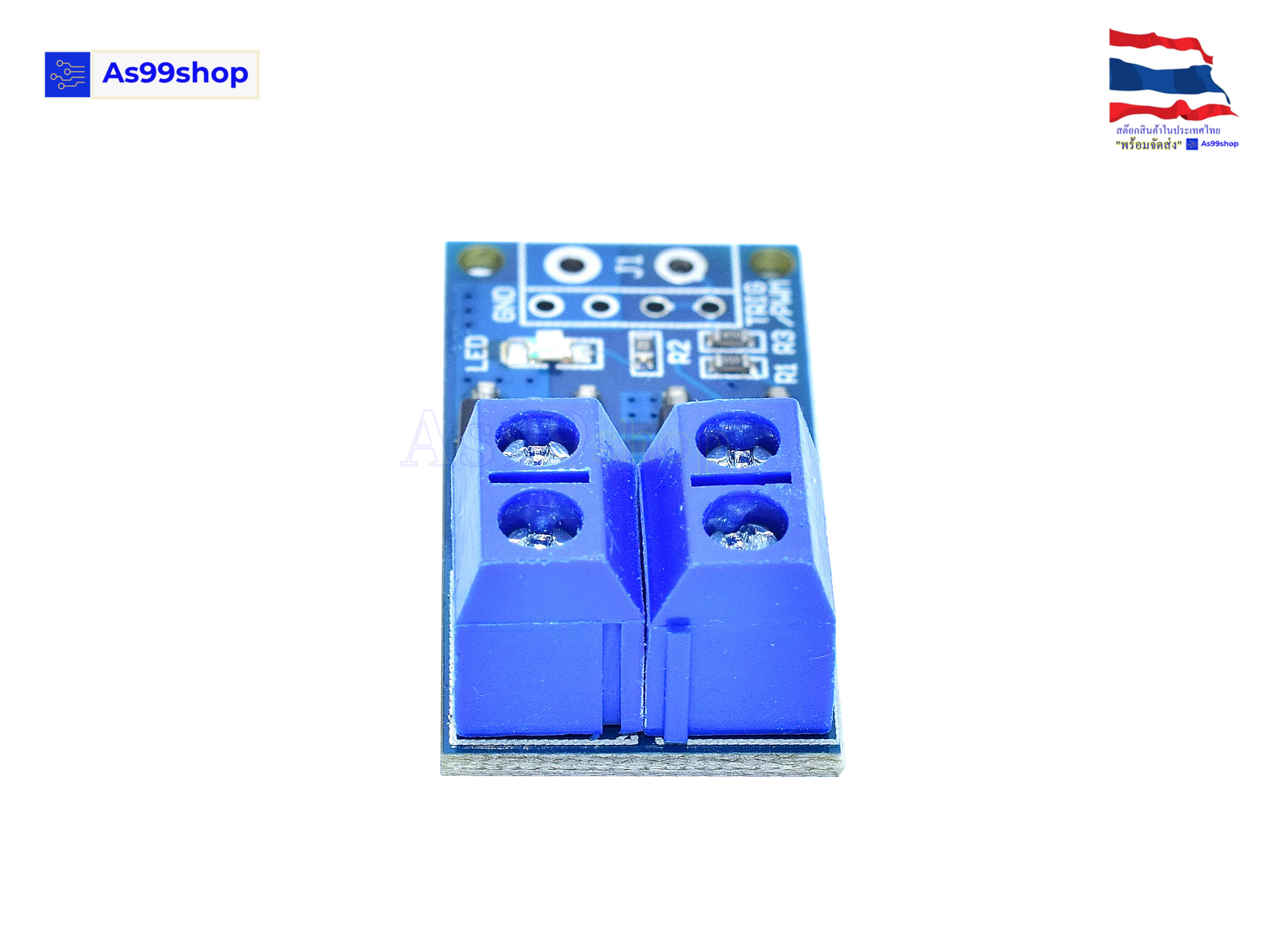

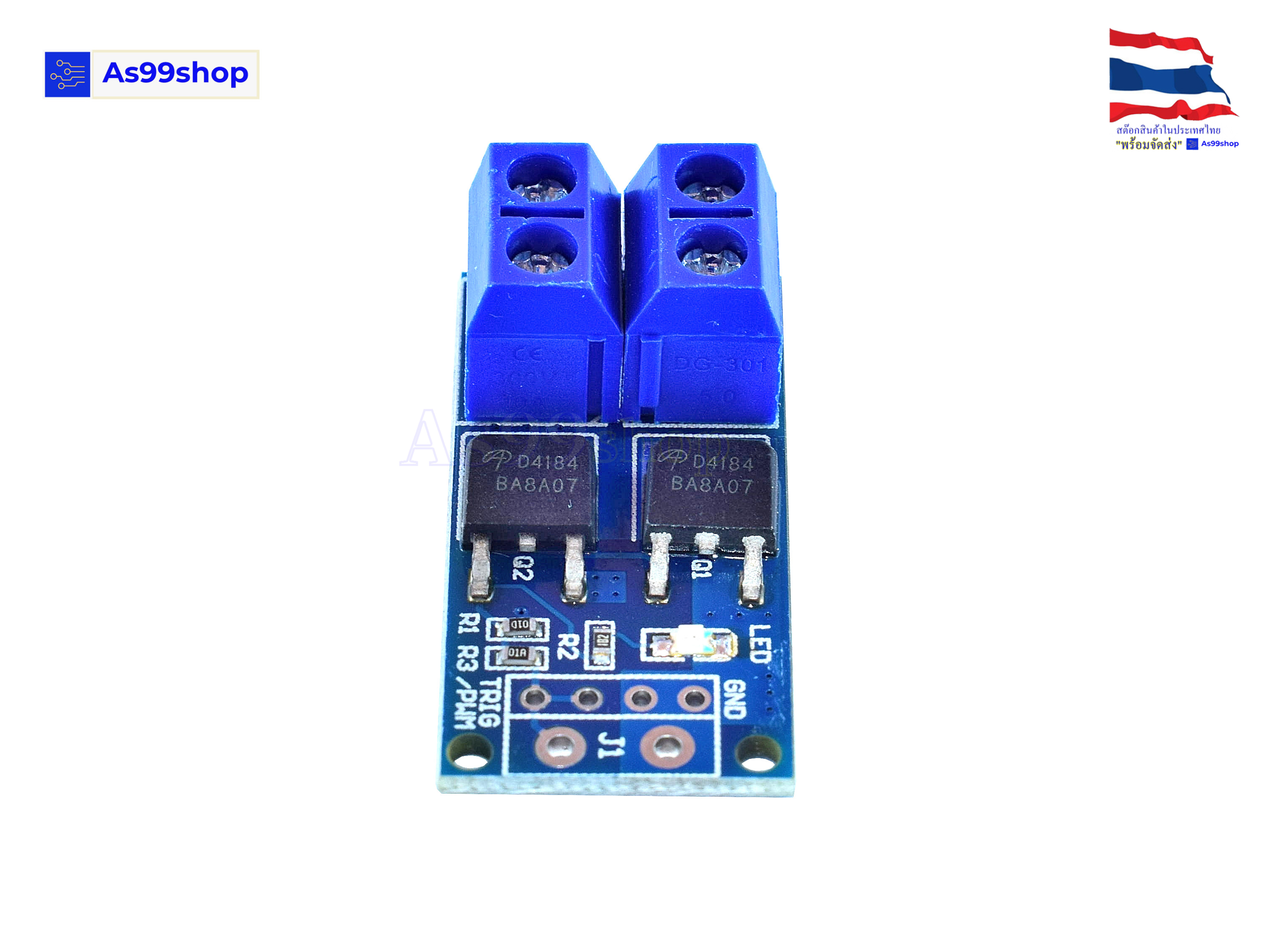

15A 400W MOS FET Trigger Switch Drive Module PWM Regulator Control Current Panel

High power MOS field effect tube trigger switch driver module PWM regulating electronic switch panel.

Adopts imported large power dual-mos transistor parallel active output, lower resistance, higher current and strong power.

Perfect support PWM signal: the PWM controller can access PWM signal, which can perfectly supported the frequency of 0-20khz.

This motor control module can tolerate wide input Voltage (DC 5-36v) it can be applied in various high power equipments,

Applications: motor,lamp bulb,LED lamp strip, micro water pump etc.



Operating Voltage:DC 5V-36V

Trigger Signal Source: digital high/low level (DC 3.3-20V),can connect with MCU IO port, PLC interface, DC power etc; can connect with PWM signal; support signal frequency 0--20KHz.

Output Power: DC 5v-36v, room temperature sustained current 15A, power 400W! Auxiliary cooling conditions, the maximum current can be up to 30A.

Operating Temperature: -40~85 Celsius

Size(LxWxH): 34x17x12mm/13.39x6.69x4.72in



1 x 15A 400W MOS FET Trigger Switch Drive Module PWM Regulator Control Current Panel Board

Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
