เสาอากาศ 2.4G 3dBi

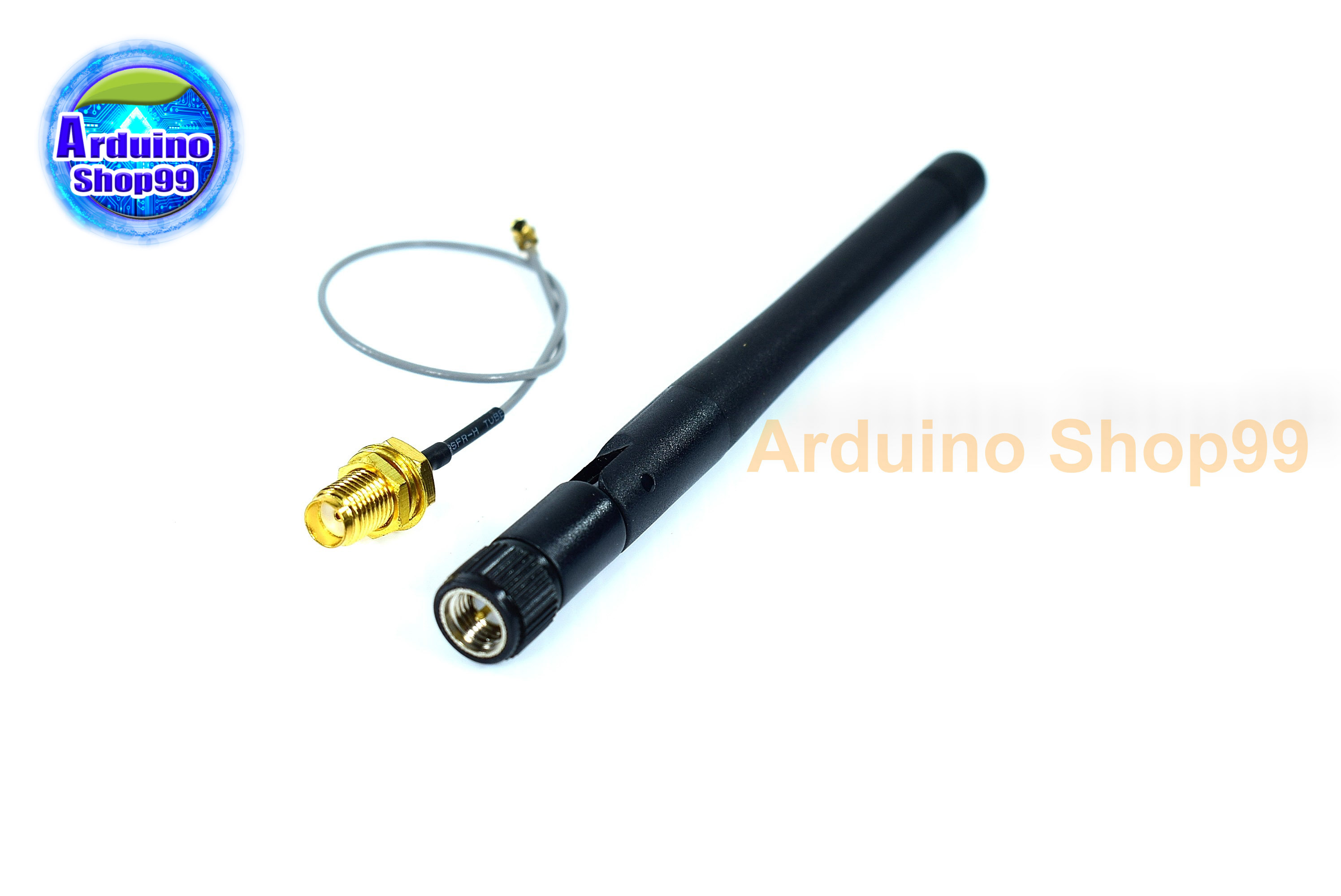

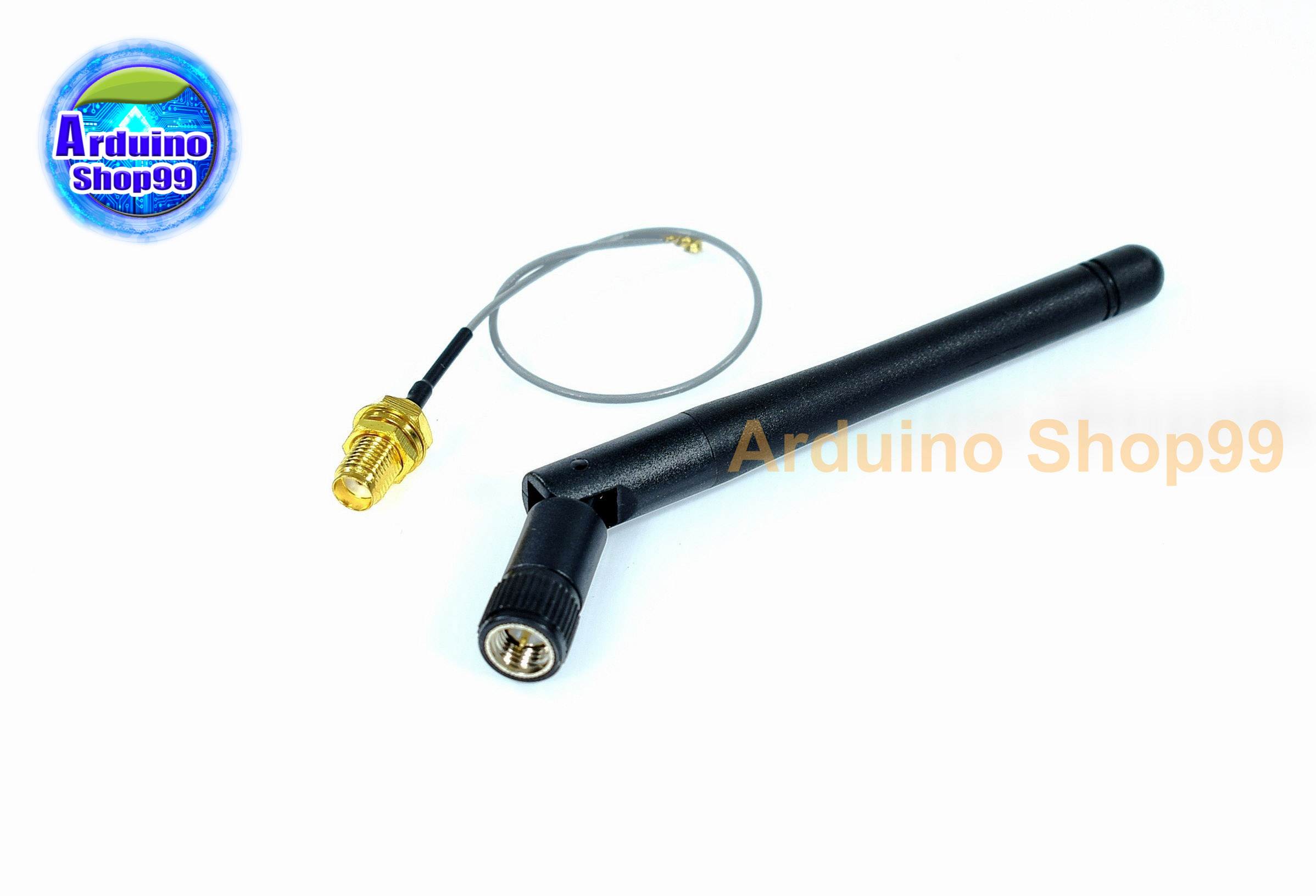

Name: 2.4G Omnidirectional Antenna
Band: 2400-2500

Detailed index: Electrical performance Electrical Specifications
Band Frequency Range (MHz) 2400-2500
Gain Gain (dBi) > 2.5
Standing wave ratio VSWR <1.5
Polarization Polarization Vertical
Non-Circularity (dB) ±0.5
Input Impedance Impedance (Ω) 50
Lightning Protection Direct Ground
Maximum Power Maximum Input Power(W) 50

Mechanical Specifications
Connector Specifications Connector Type SMA
Radiation Material Radiating Element Material Copper
Radome Material Radome Material EVA
Radome Color Radome Color Gray

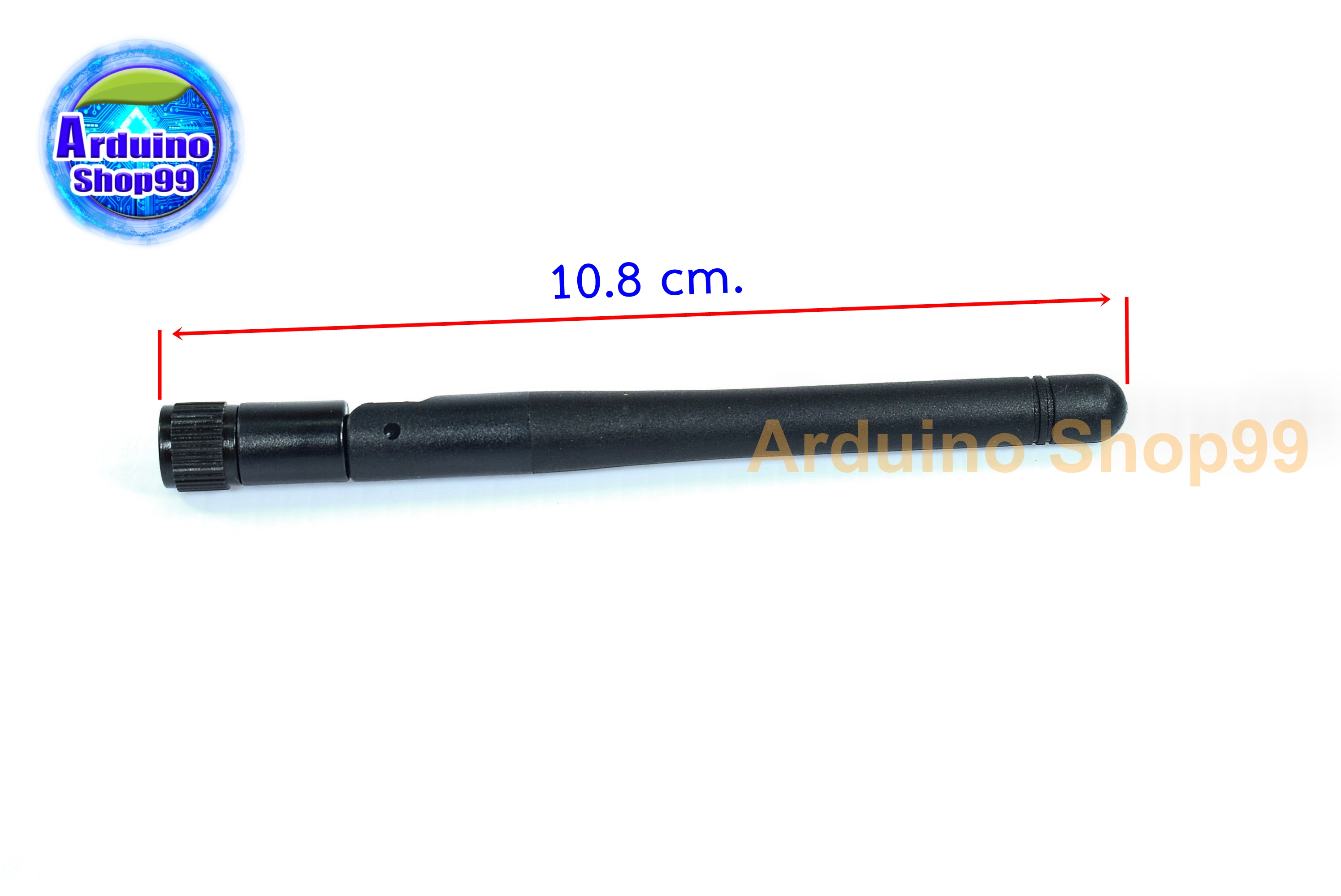

Antenna Dimension (mm) 110 (Unbend) 92 (Bend)
Tail Length Tailing Cable Length (mm) 100/120/200
Packing Size Packing Size (mm) 295×110×60
Weight Wight(Kg) 0.009/12
Use Environment Application Condition Indoor
Operating Temperature (°C) -40~+70
Storage Temperature Reposition Temperature(°C) - 55~+80
