หลอด LED RGB LED 5mm 1 หลอด Common Anode สามารถควบคุมการแสดงสีของแต่ละสีได้อย่างอิสระ สามารถผสมสีได้หลากหลายสี ด้วยแม่สีส่วนผสมทางแสง RGB

Description

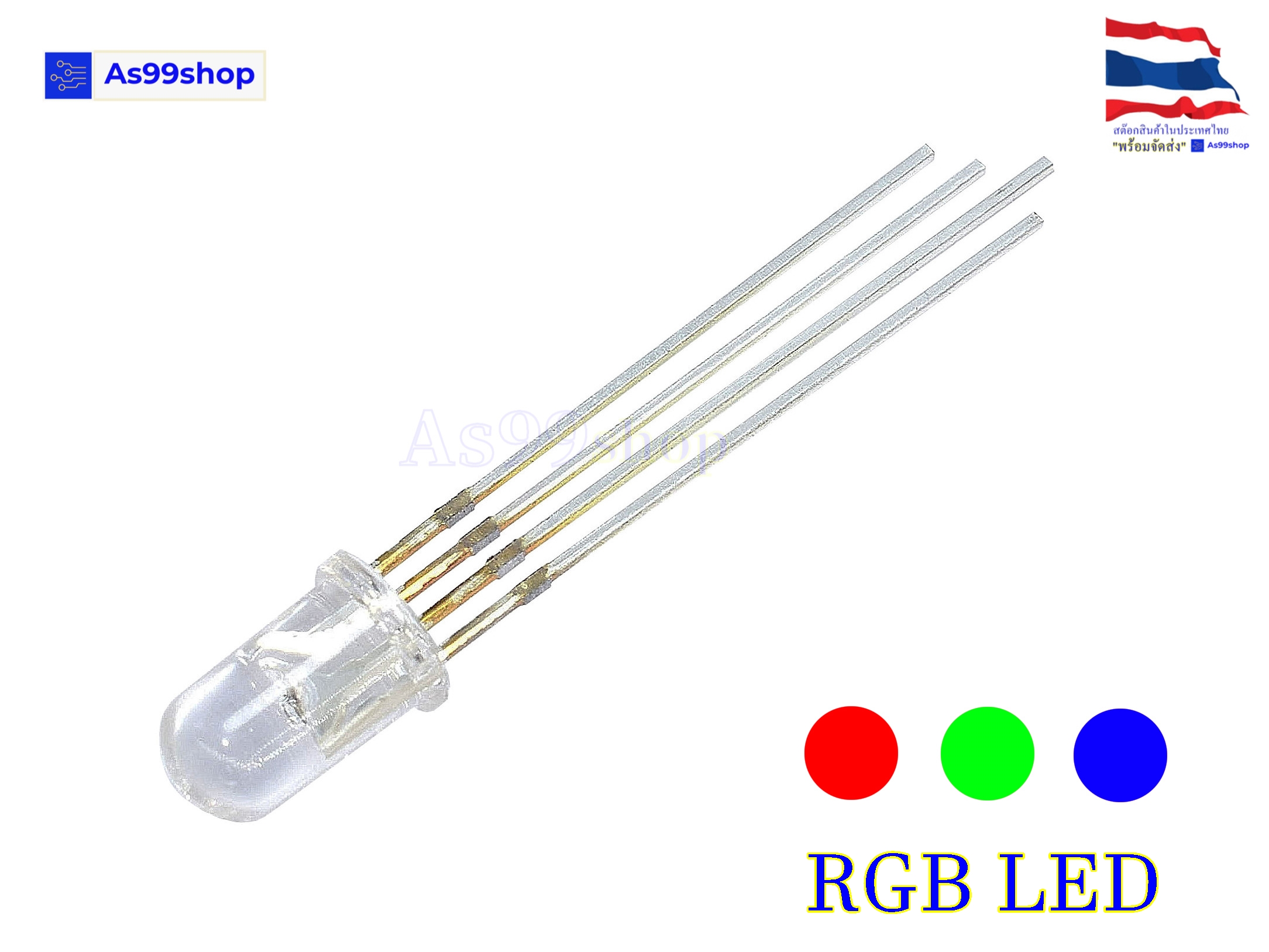

5mm RGB LED Common Cathode

This is a 5mm RGB LED (Red Green Blue) with four pins. Triple output one for each color with a common cathode. This LED can be used for three status indicators or pulse width modulation by mixing the different colors at different brightnesses you could get 257x257x257 different colors which is 16,974,593 colors to choose from!

The price is per RGB LED.

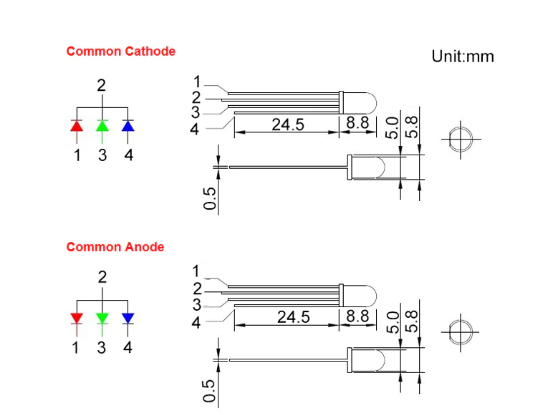

5mm RGB LED Common Cathode specification

• Pin length: >20mm
• Diameter: 5mm
• Emitting Color: RGB

        RED

• Brightness: 1000—1200MCD
• Voltage Range: 1.8 — 2.0V
• Wavelength: 630—640nm

        Green

• Brightness: 3000—500MCD
• Voltage Range: 3.2 — 3.4V
• Wavelength: 515—525nm

        Blue

• Brightness: 2000—300MCD
• Voltage Range: 3.2 — 3.4V
• Wavelength: 465—475nm
