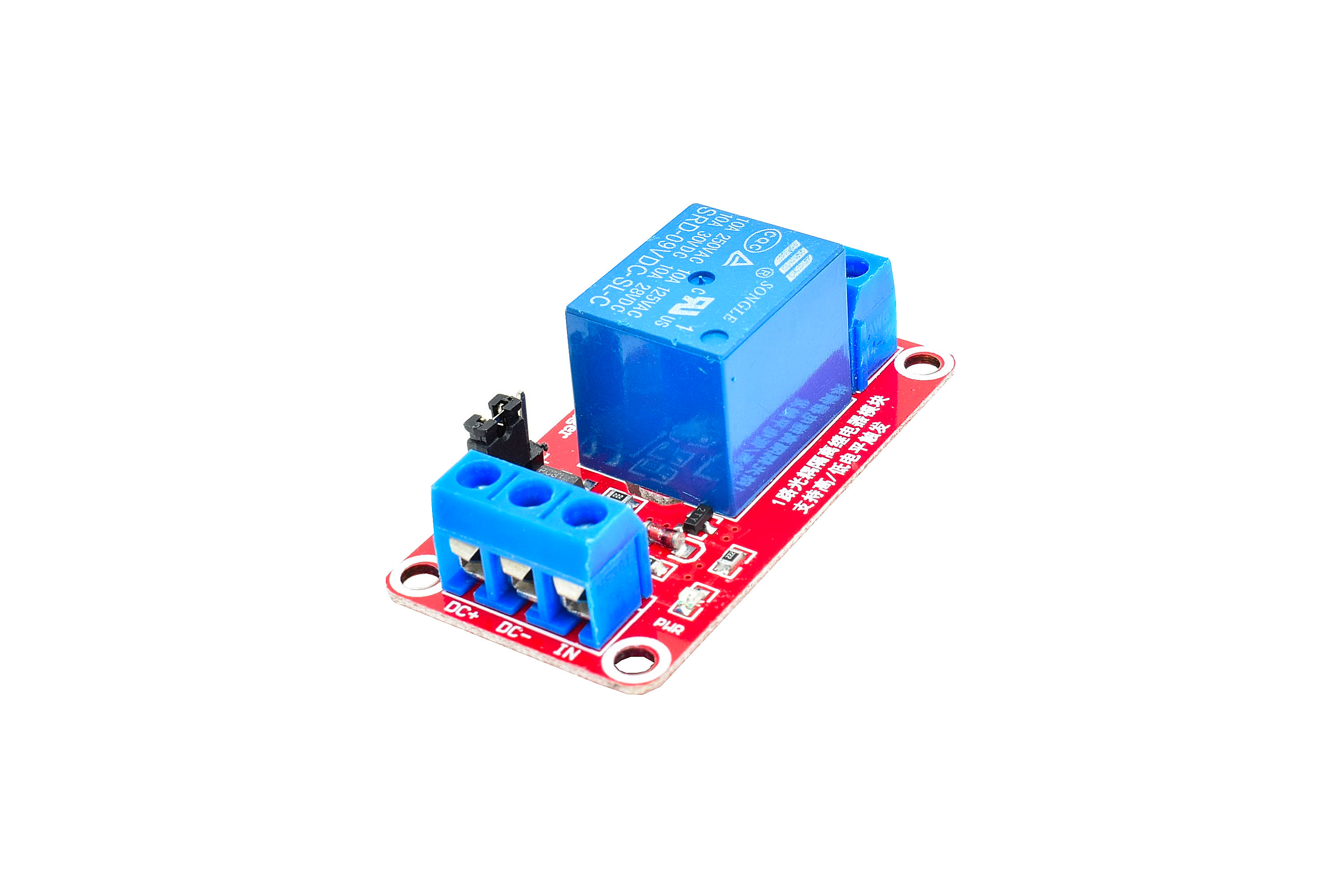

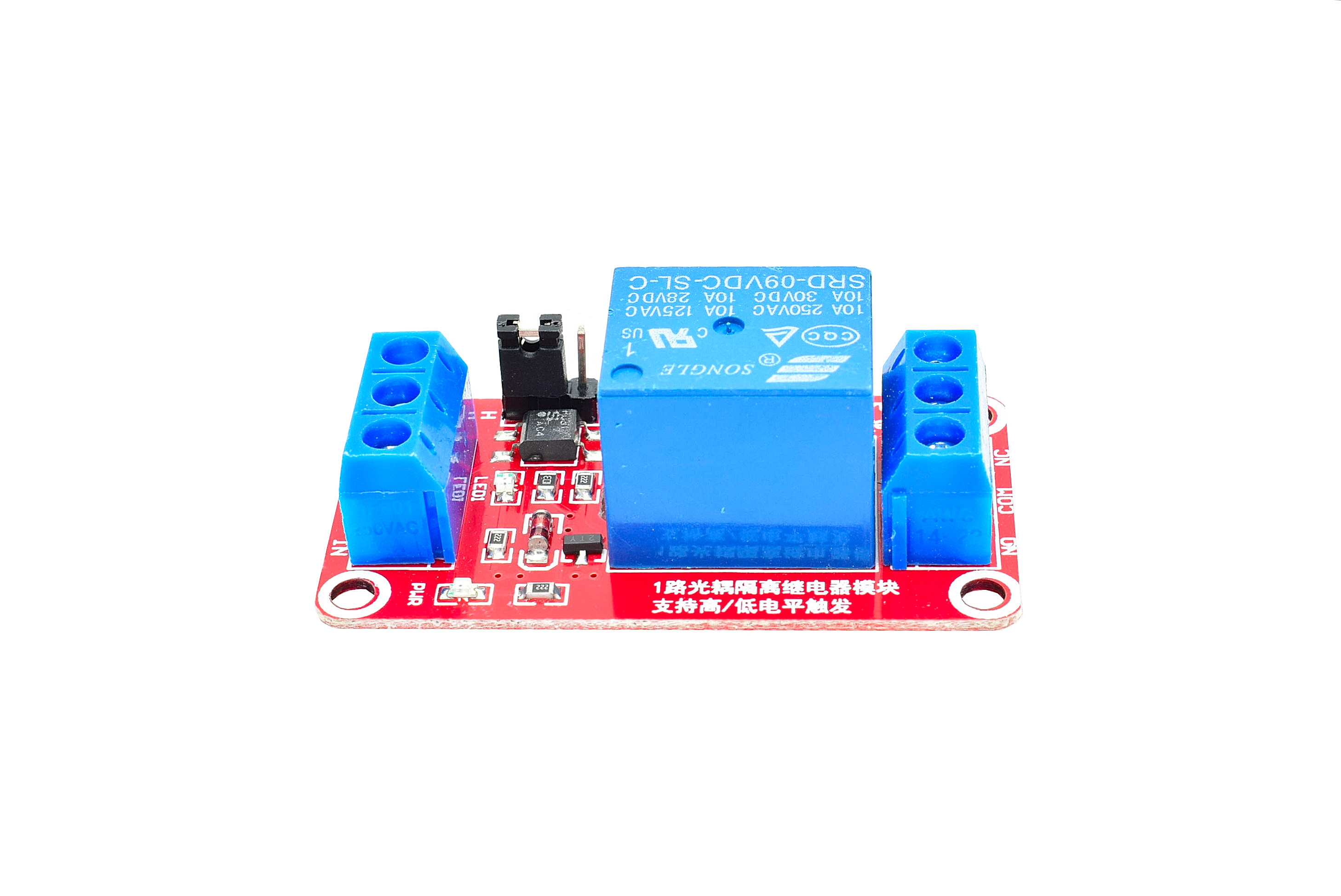

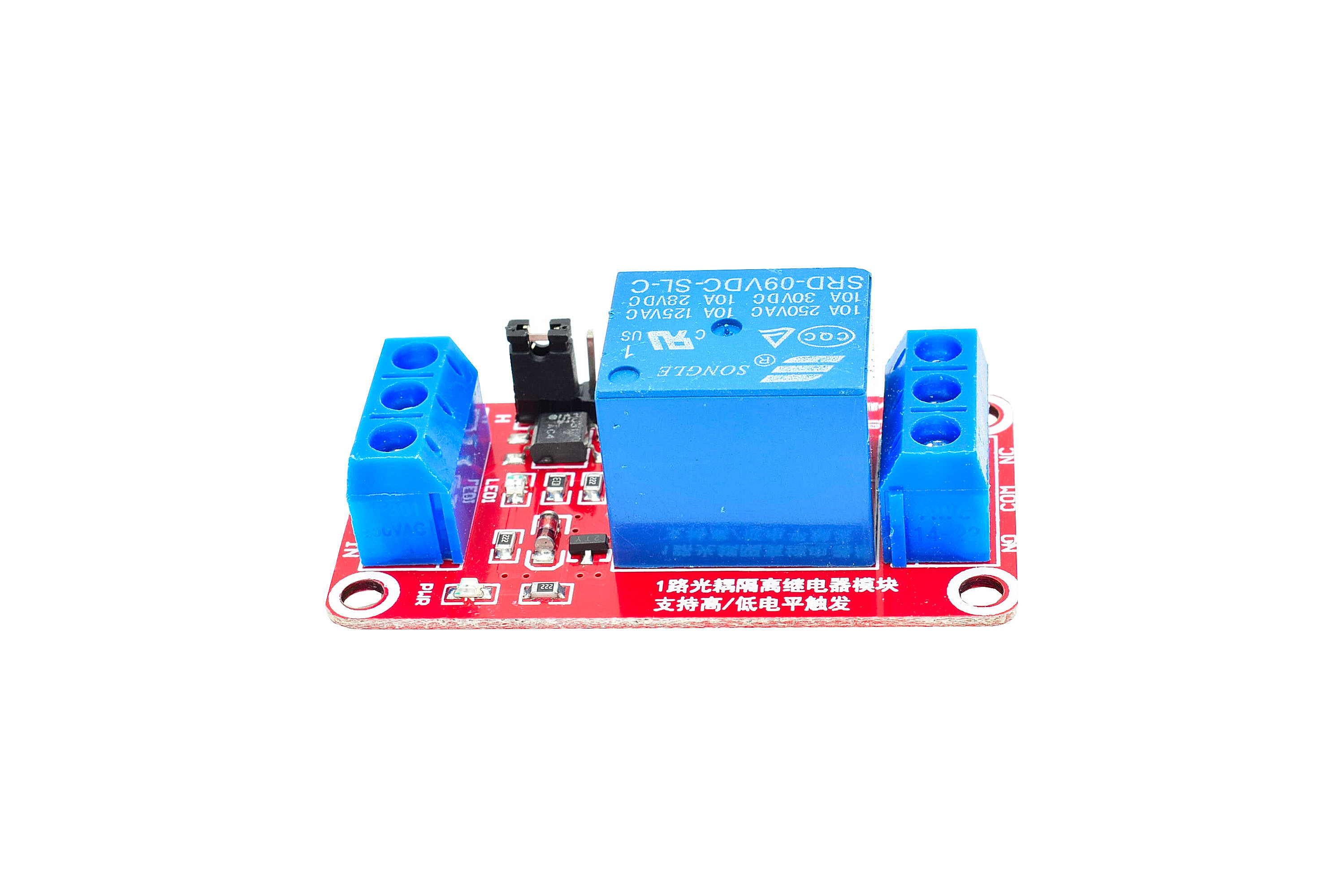

Relay 9V 1 channel 10A Red version

โมดูล รีเลย์ 1-way 9V relay 1 ช่อง isolation control Relay Module Shield  ทำงานแบบแยกช่องสัญญาณ สามารถเลือกโหมดการควบคุมได้ แบบ Active Hight  หรือ Active Low โดยการเปลี่ยนตำแหน่งจั๊มเปอร์ใหม่

Introduced a new 1-channel optocoupler isolation relay module that supports high and low level triggering.

A module Description:
1, using genuine quality relay module, normally open interfaces Maximum load: AC 250V / 10A, DC 30V / 1OA;
2, using SMD opto isolation, driving ability, stable performance; trigger current of 5mA;
3, the module voltage is 5V, 9,12V, 24V available;
4, module may be provided by high level or low-level triggered jumpers;
5, fault-tolerant design, even if the control line is broken, the relay will not operate;
6, Power indicator (green), relay status indicator (red)
7. The interface design is user-friendly. All interfaces can be directly connected through the terminal block. It is very convenient.
8. Module size: 50mm * 26mm* 18.5mm (length * width *High)
9, with 4 fixing bolt holes, hole 3.1mm, spacing 44.5mm*20.5mm
Two module interface:
1, DC+: connected to the positive pole of the power supply (voltage according to the relay requirements, there are 5V.9V.12V and 24V selection)
2, DC-: connected to the negative pole of the power supply
3, IN: high or low level control relay pull-in
relay Output:
1, NO: Relay normally open interface, the relay is suspended before the suction, after the pull-in and short with COM
2, COM: relay common interface
3, NC: relay normally closed interface, short-circuit with COM before the pull-in of the relay, after hanging and hanging

Third, technical parameters:
relay version quiescent current maximum current trigger current trigger voltage (low) high
  5V 5mA 190mA 2-4mA 0-1.5V 2.5-5V
  12V 5mA 80mA         2-4mA 0-4V 4.5-12V
  24V 5mA 50mA         2-4mA      0-8V 8.5-24V

High and low trigger selection:

1. When the jumper is shorted to LOW, it is triggered by low level;
2. When the jumper is shorted to high, it is triggered by a high level.
