Relay 5V 1 channel 10A High level trigger 5V

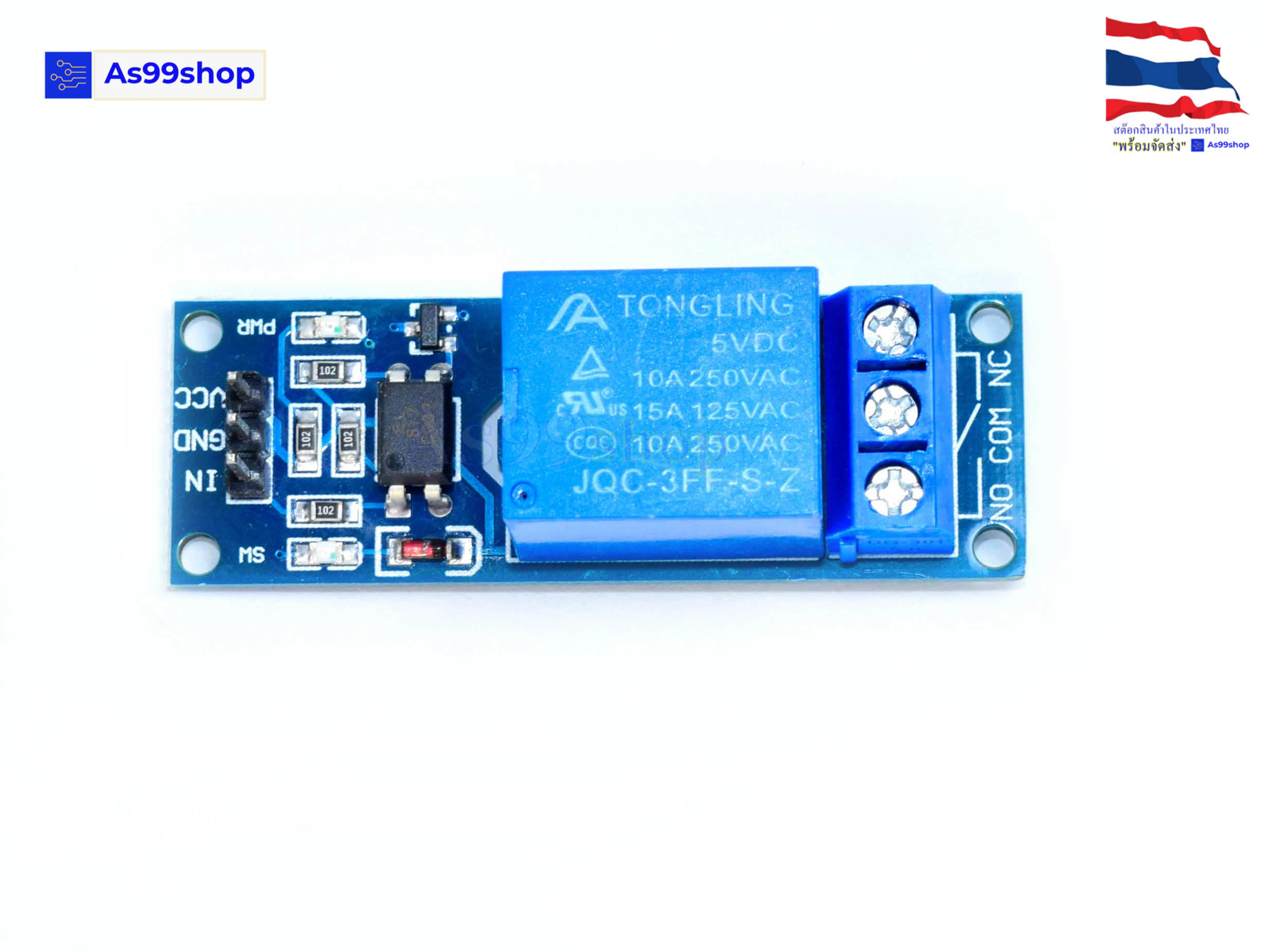

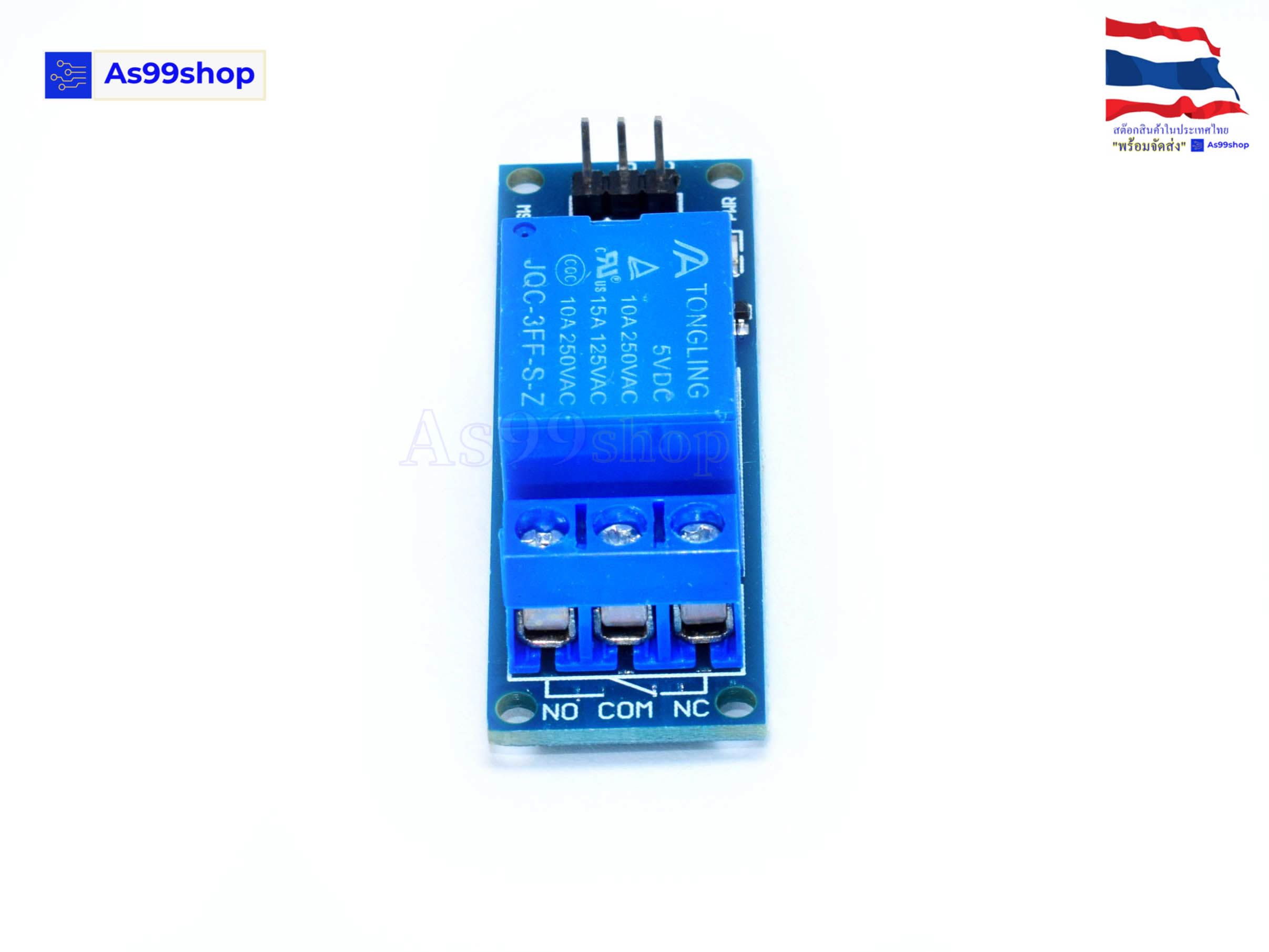

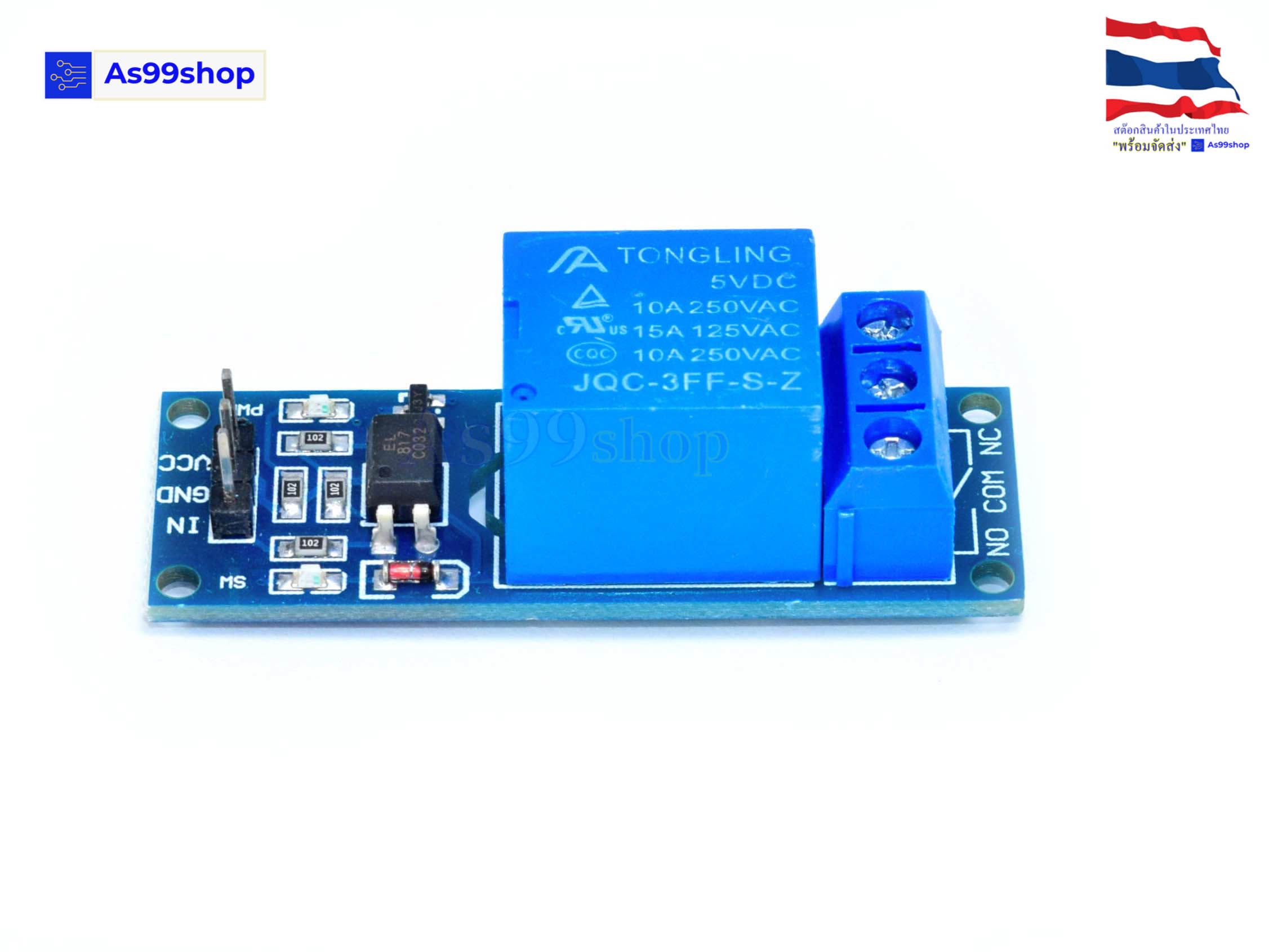

product description:

1. This module complies with the safety standard, and the control area and the load area have isolation slots;
2. The module is separated by optocoupler, the trigger is more reliable and more stable;
3. The double-sided FR-4 circuit board design is adopted, and the high-end patch process is produced;
4, using TONGLING-relay control;
5, with power and relay action indication, attracting light, disconnecting is not bright;
6, when the signal input has a high level signal , the common end and the normally open end will be turned on;
7, relay Can directly control a variety of equipment and load;
8, there is a normally open and a normally closed contact;
9, blue KF301 terminal is more convenient to connect the control line.
10, module size: 53x18x18.5mm; net weight: 16g

Module interface:

VCC: Connect the positive pole of the power supply (power supply according to the relay voltage)
GND: Connect the negative pole of the power supply
IN: Relay module signal trigger end (high level trigger valid)
High level and low level Meaning:
High level trigger refers to the VCC end A triggering method in which the positive voltage is connected to the trigger terminal. When the trigger terminal has a positive voltage or reaches a trigger voltage, the relay is attracted.
Low-level triggering refers to a trigger method that connects the negative voltage of the GND terminal to the trigger terminal. When the trigger terminal has 0V voltage or the voltage is low enough to trigger, the relay pulls in.

 Relay contact capacity: 250V 10A (AC) or 30V 10A (DC) (theoretical maximum load capacity)

 The power of the AC is recommended to be below 1500W, and the DC is below 200W.
