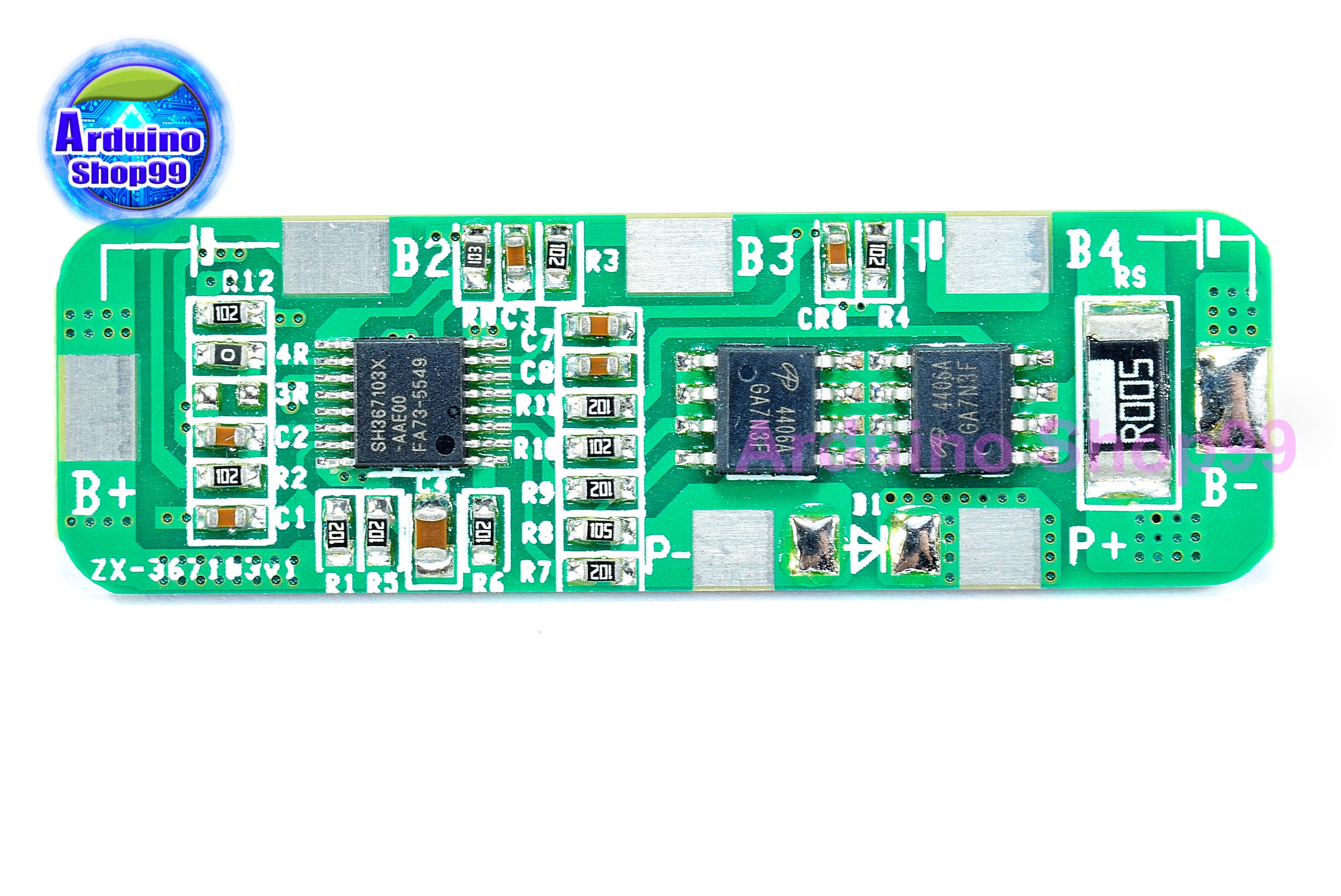

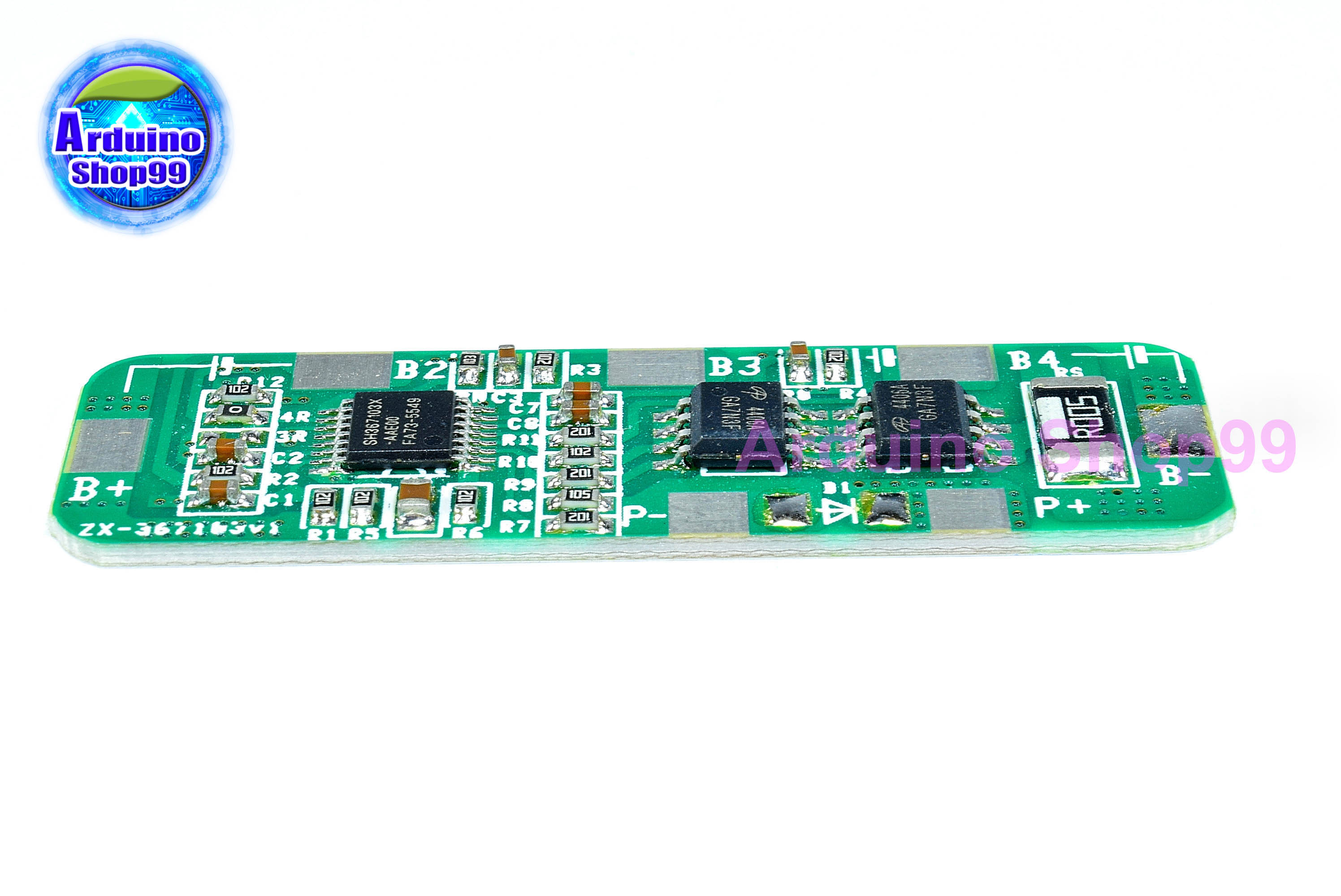

4 string 18650 lithium battery 3A protection board

4 string 18650  lithium battery 3A protection board polymer protection board 14.8V 16.8V charging board

The properties of the lithium battery protection board:

Model: HH-P3-10.8 Overcharge voltage range: 4.25-4.35v±0.05v

Size: 48*15*3.5mm Over-discharge voltage range: 2.5-3.0v±0.05v

Maximum working current: 3A Working temperature: -40---+50°C

Maximum instantaneous current: 4-6A Storage conditions: -40-- +80 °C

Quiescent current: less than 6uA effective life: more than 50,000 hours

Internal resistance: less than 45mΩ Short circuit protection: can protect the disconnected load or charge recovery

Equilibrium: Unbalanced Size: 48*15*3MM

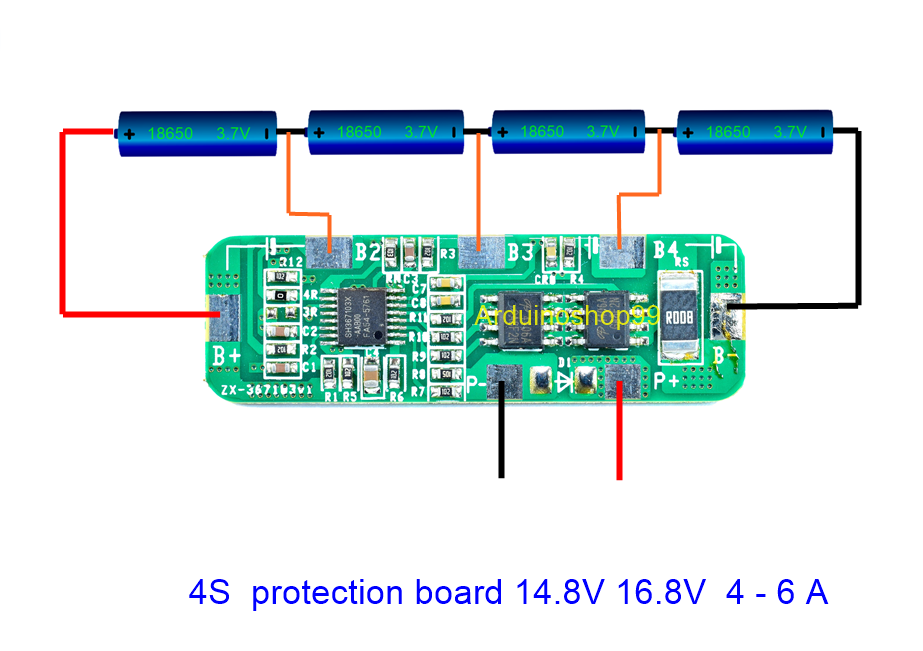

Note: If there is no voltage at the output after the battery is properly connected, please activate the protection board.
