3 string 11.1V lithium battery protection board 10A Working

3 string 18650 lithium battery 10.8V 11.1V 12V 12.6v protection board (can be used for 3 strings and more, maximum support 20)

note:

      This protection board can not be used for iron ion polymer batteries, electric fish battery packs, electric bicycle battery packs, customers who use the above combination purchase, please pay attention! .

The power range described applies to the following products:

     Low power inverter, massager battery pack, LED light backup power supply, 12V electronic products, solar street light battery pack, monitoring standby power supply, and other products.

Note: For discharge products above 3A, the discharge rate of the battery should be more than 3C.

Magnification calculation formula: 1C rate battery, 2000 capacity is equal to 2AH*1=2A maximum working current.

3C rate battery, 2000 capacity is equal to 2AH*3=6A maximum working current.

In the use of the battery will be hot, the battery rate is not applicable, this situation must not be used for a long time, the battery will be damaged quickly.

Description explanation:

3 strings (for 3 18650 batteries or polymer lithium batteries in series)

10.8V (rated voltage of polymer battery)

11.1V (rated voltage of 18650 or 3.7V lithium battery)

12.6V (voltage after the lithium battery is fully charged)

Discharge 20A (refers to the maximum discharge current limit)

The properties of the lithium battery protection board:

Model: HX-3S-D021 Overcharge voltage range: 4.25-4.35v±0.05v

Size: 51*23*4.0mm Over-discharge voltage range: 2.3-3.0v±0.05v

Maximum working current: 10A Working temperature: -40---+50°C

Maximum instantaneous current: 15-20A Storage conditions: -40-- +80 °C

Quiescent current: less than 50uA effective life: more than 30,000 hours

Internal resistance: less than 150mΩ Short circuit protection: protection, delay self-recovery.

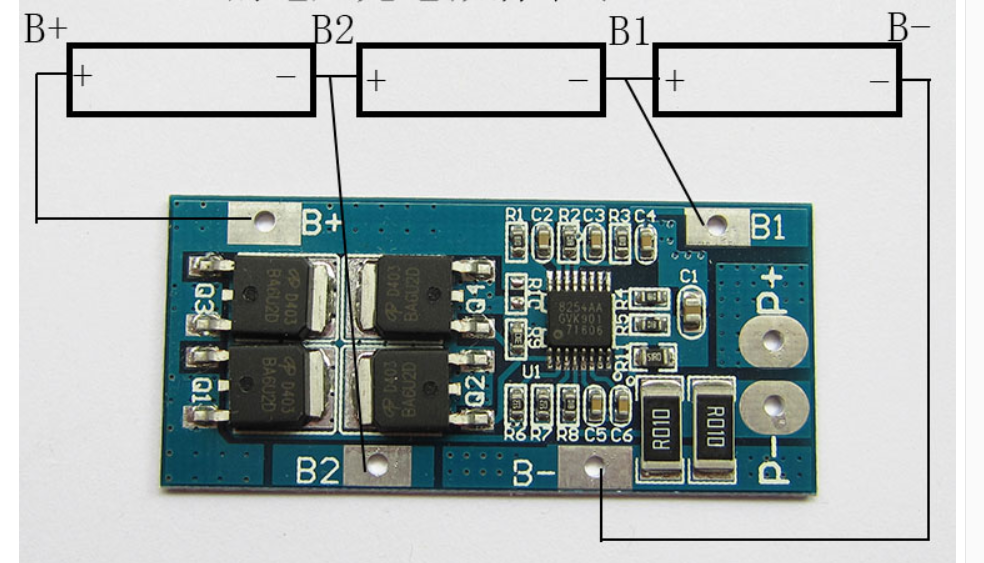

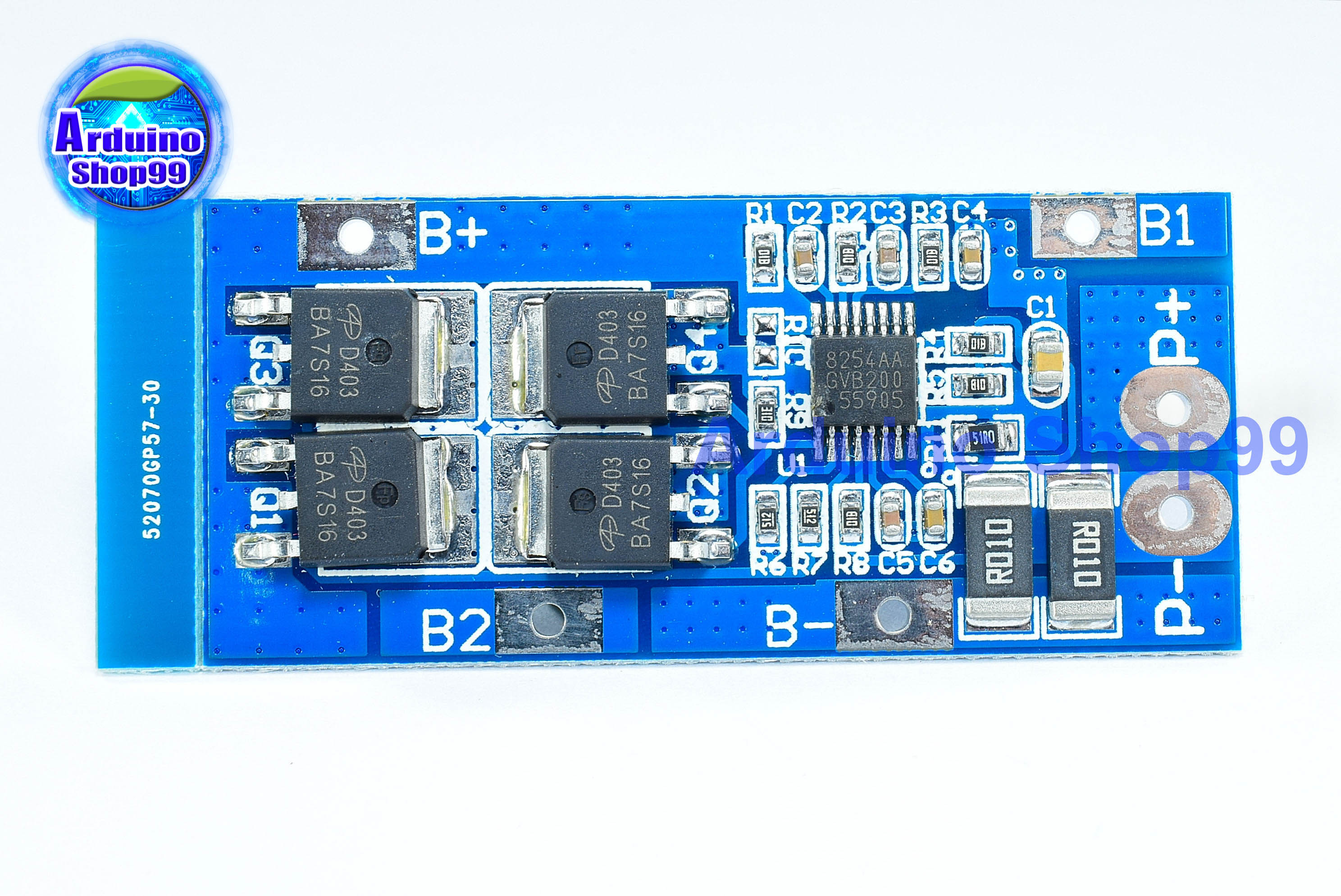

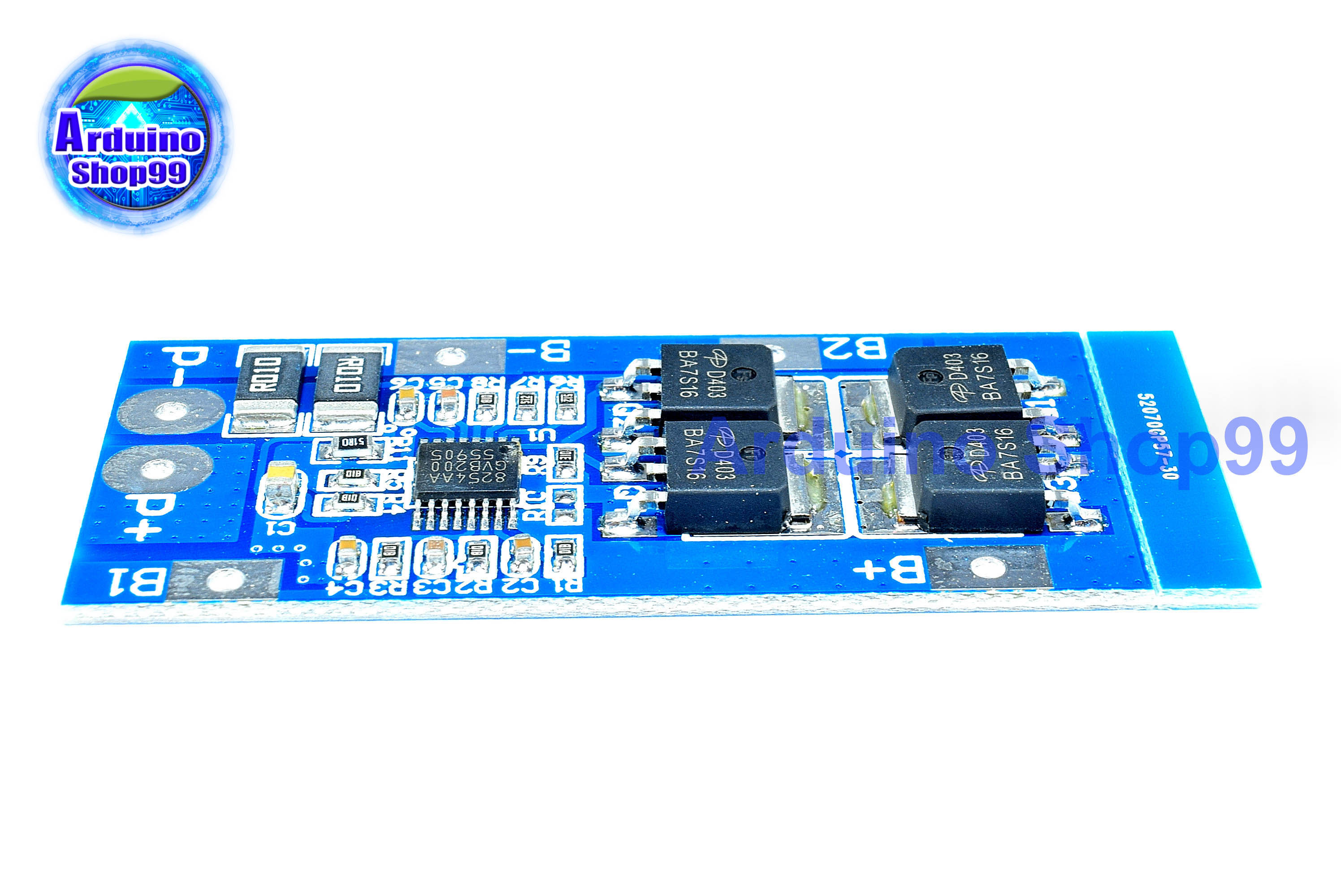

 The protection board size and device description;

 The size of the protection board is 51*23*4mm; the components are Seiko S-8254AA protection chip and D403*4 of genuine AOS;
