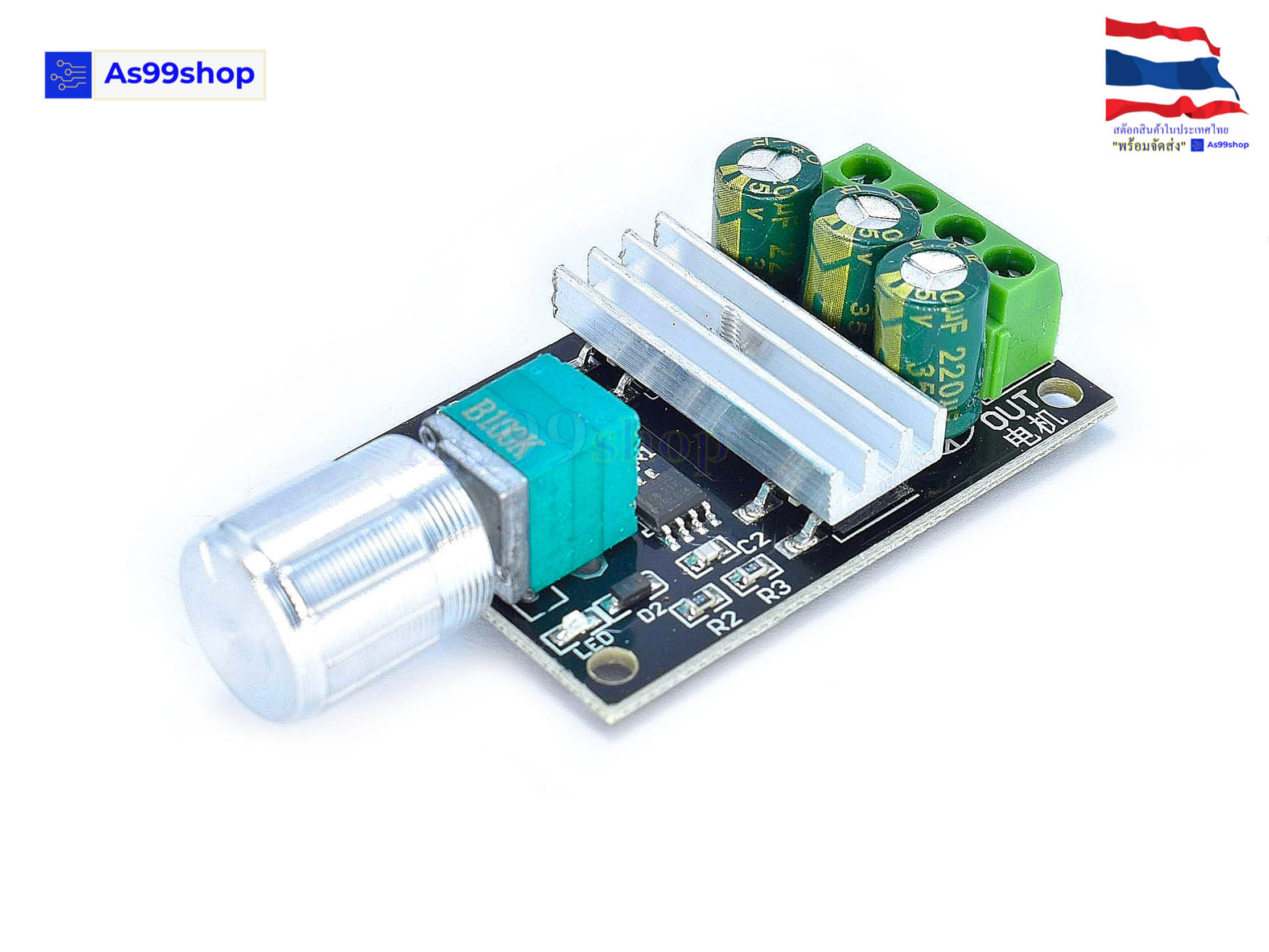

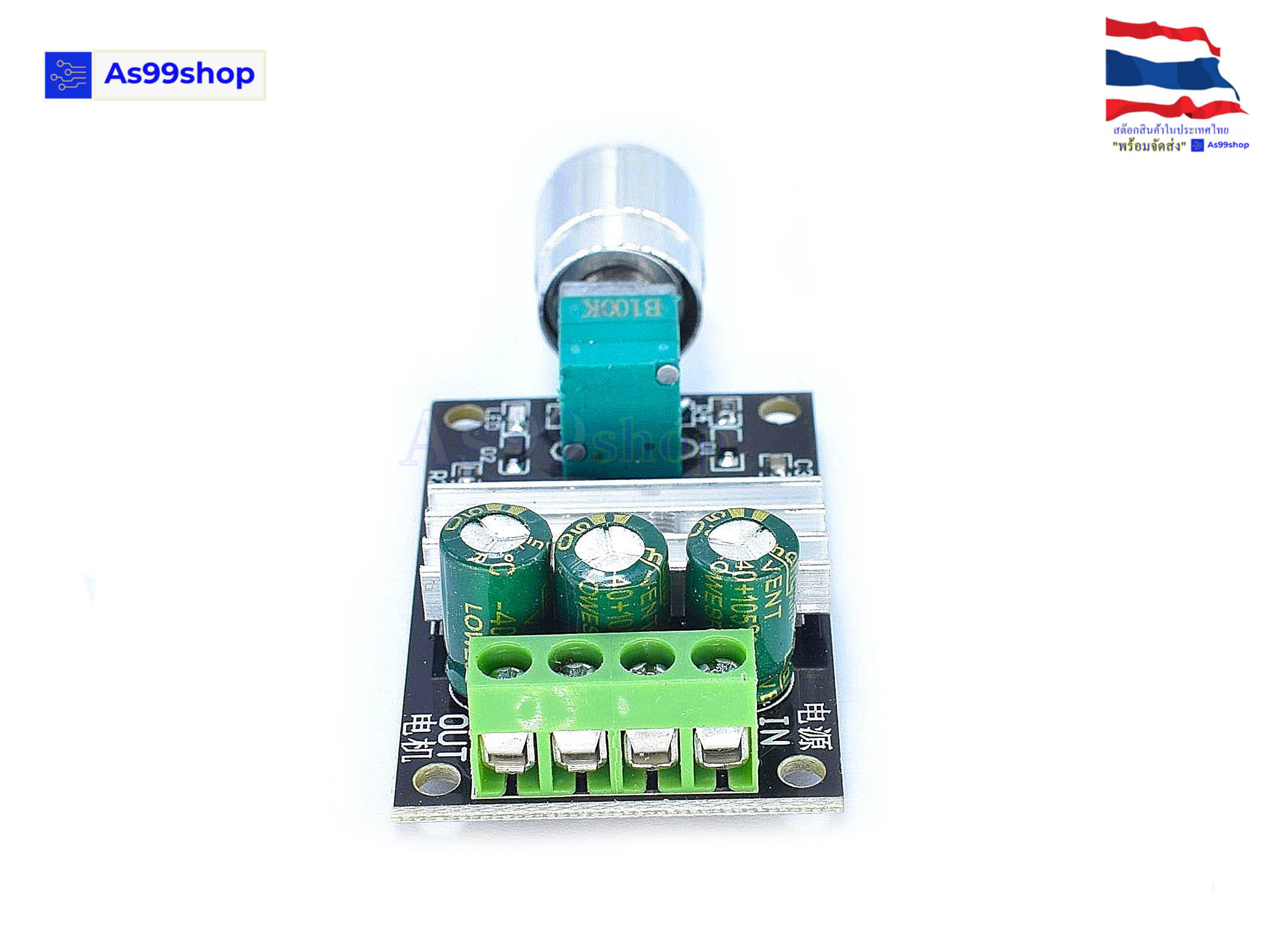

PWM DC motor speed controller 6V12V24V28V 3A

Main technical parameters:

• Input supply voltage:6V-28VDC
• The maximum output power: 80W
• The maximum continuous output current :3A
• Duty Cycle adjustable:5%-100%

Operating instruction:

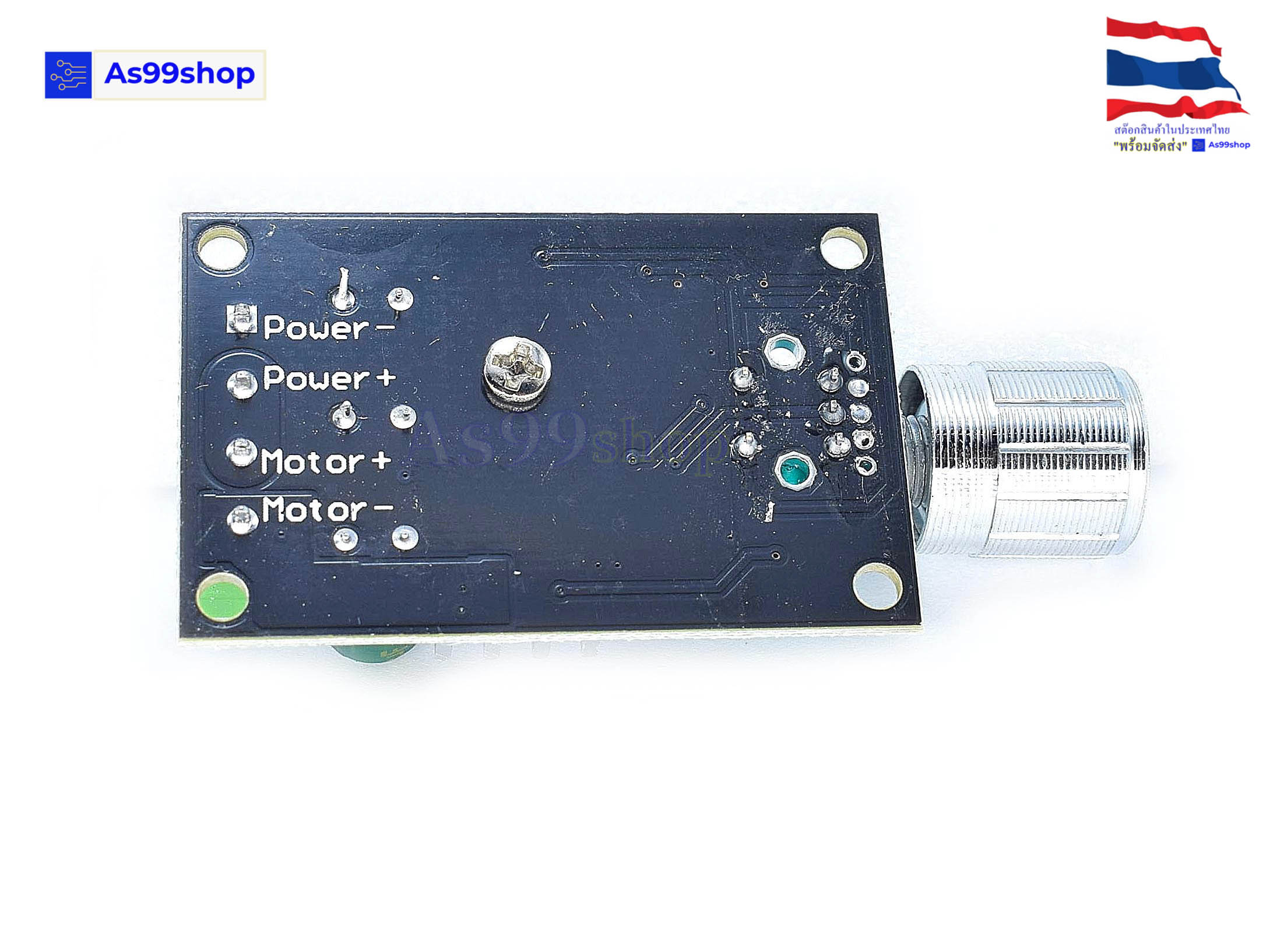

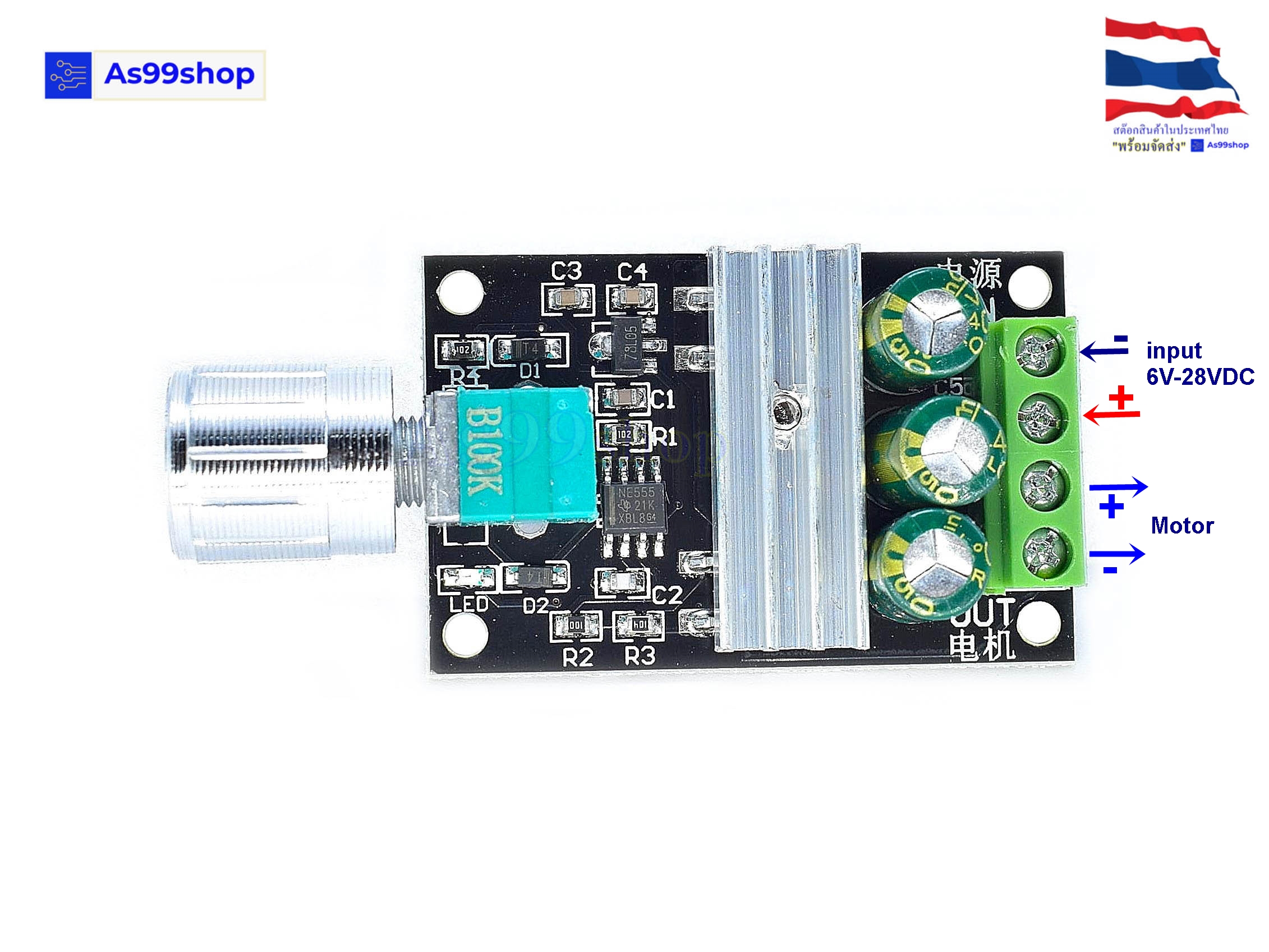

1. PWM dc 6v 12v 24v 28v 3a motor speed controller  Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
2. ConnectPWM dc 6v 12v 24v 28v 3a motor speed controller  a voltage of 10V-36V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits.
3. You can now control the speed of the motor through potential meter
