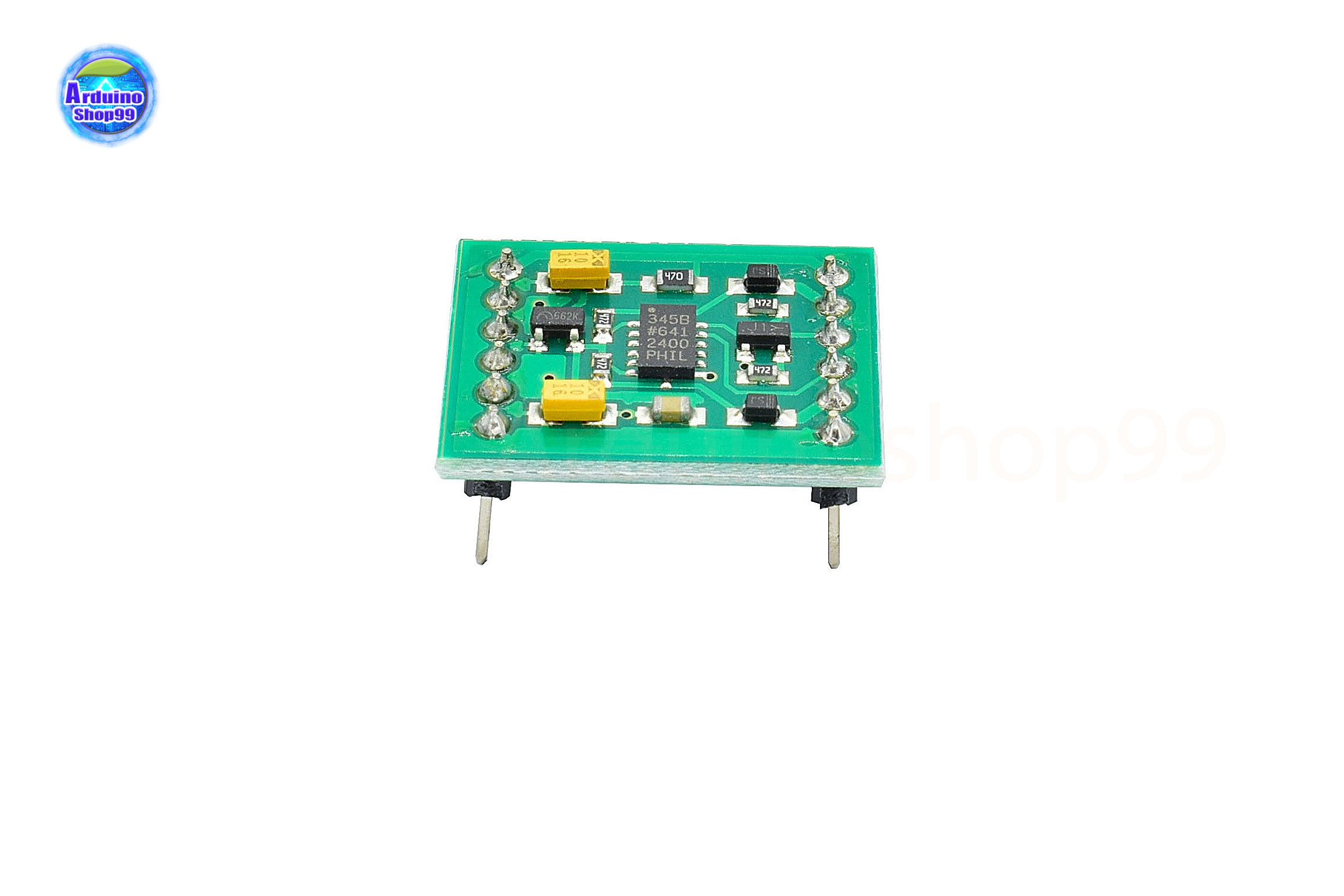

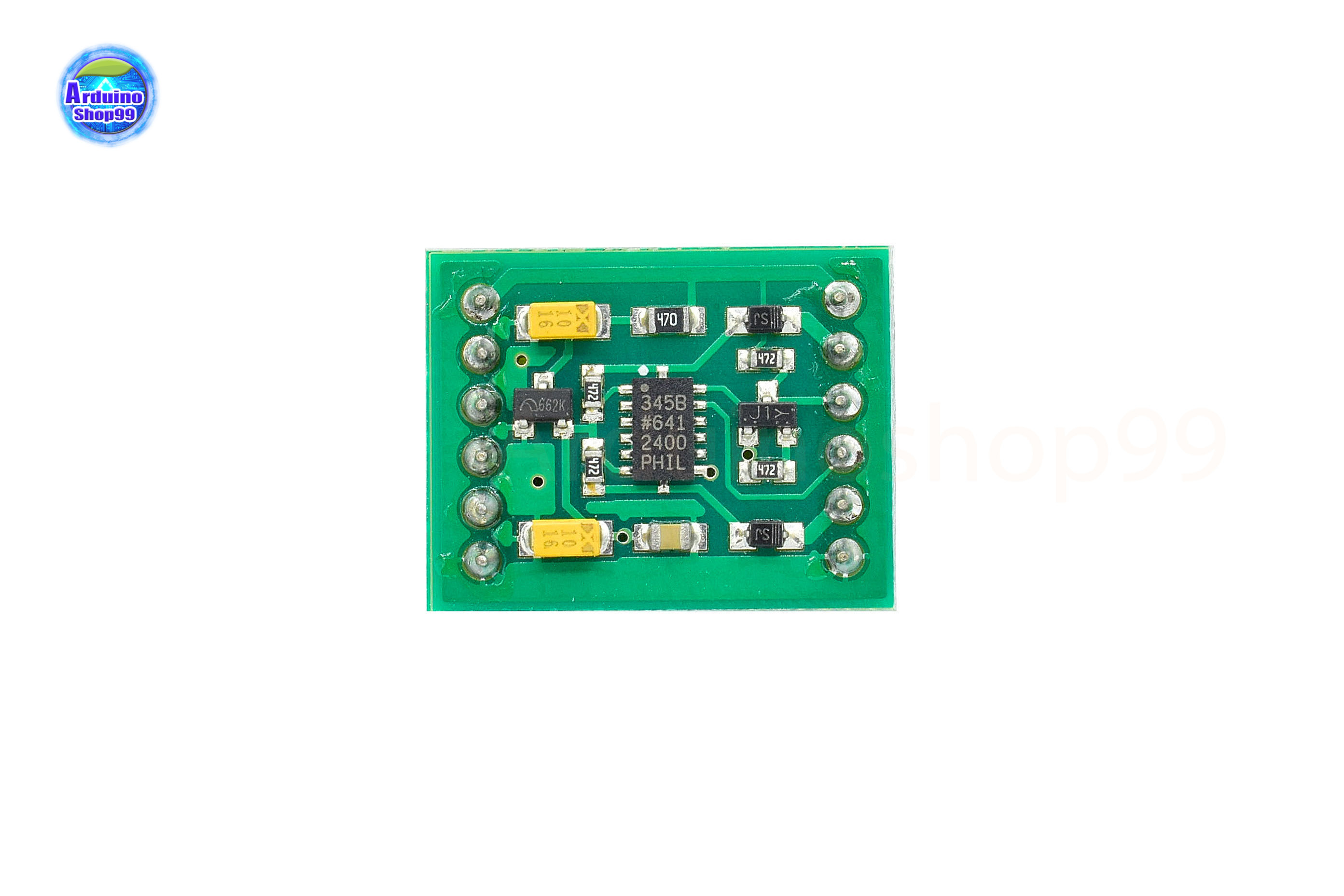

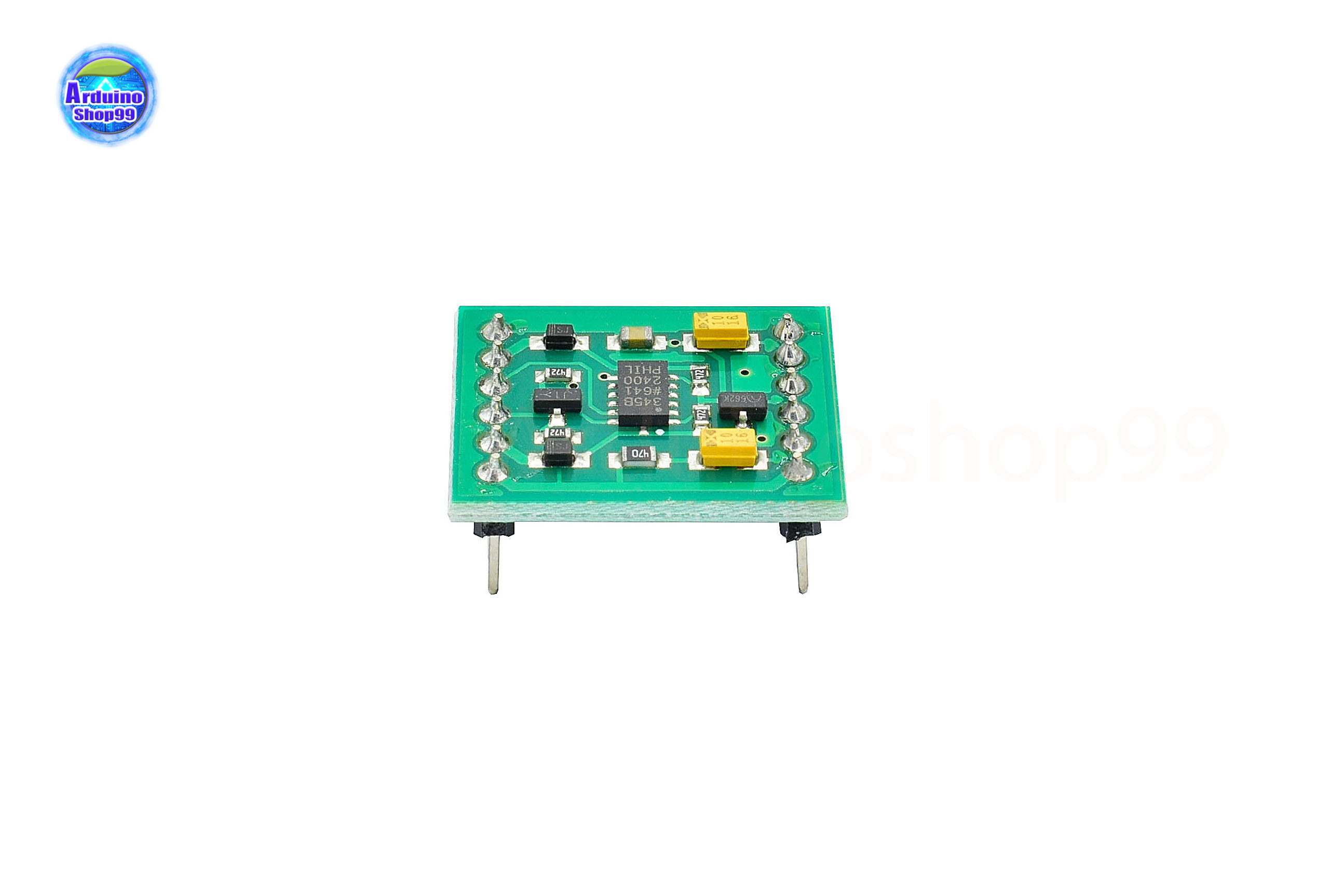

GY-29 three-axis digital tilt angle module ADXL345 module gravity angle sensor

เซนเซอร์ GY-29 3-axis  สามารถวัดได้ 3 แกน ได้แก่
Accelerometer วัดความเร่ง 3 แกน

GY-29  Digital Accelerometer

 FEATURES

Ultralow power: as low as 23 μA in measurement mode and

0.1 μA in standby mode at VS = 2.5 V (typical)

Power consumption scales automatically with bandwidth

User-selectable resolution

Fixed 10-bit resolution

Full resolution, where resolution increases with g range,

up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB

scale factor in all g ranges)

Patent pending, embedded memory management system

with FIFO technology minimizes host processor load

Single tap/double tap detection

Activity/inactivity monitoring

Free-fall detection

Supply voltage range: 2.0 V to 3.6 V

I/O voltage range: 1.7 V to VS

SPI (3- and 4-wire) and I

2C digital interfaces

Flexible interrupt modes mappable to either interrupt pin

Measurement ranges selectable via serial command

Bandwidth selectable via serial command

Wide temperature range (−40°C to +85°C)

10,000 g shock survival

Pb free/RoHS compliant

Small and thin: 3 mm × 5 mm × 1 mm LGA package

 Pin Function Descriptions

Table：
