GY-MLX90614-DCI long-distance 50 cm โมดูลเซ็นเซอร์วัดอุณหภูมิอินฟราเรด 50 เซนติเมตร

GY-MLX90614-DCI long-distance 50 cm โมดูลเซ็นเซอร์วัดอุณหภูมิอินฟราเรด 50 เซนติเมตร(ผ่านการทดสอบจากร้านค้า)

D ---- 3V medical application accuracy
C –---temperature gradient compensation*
I –---- 3° FOV (angle)

-----------------------------------------------

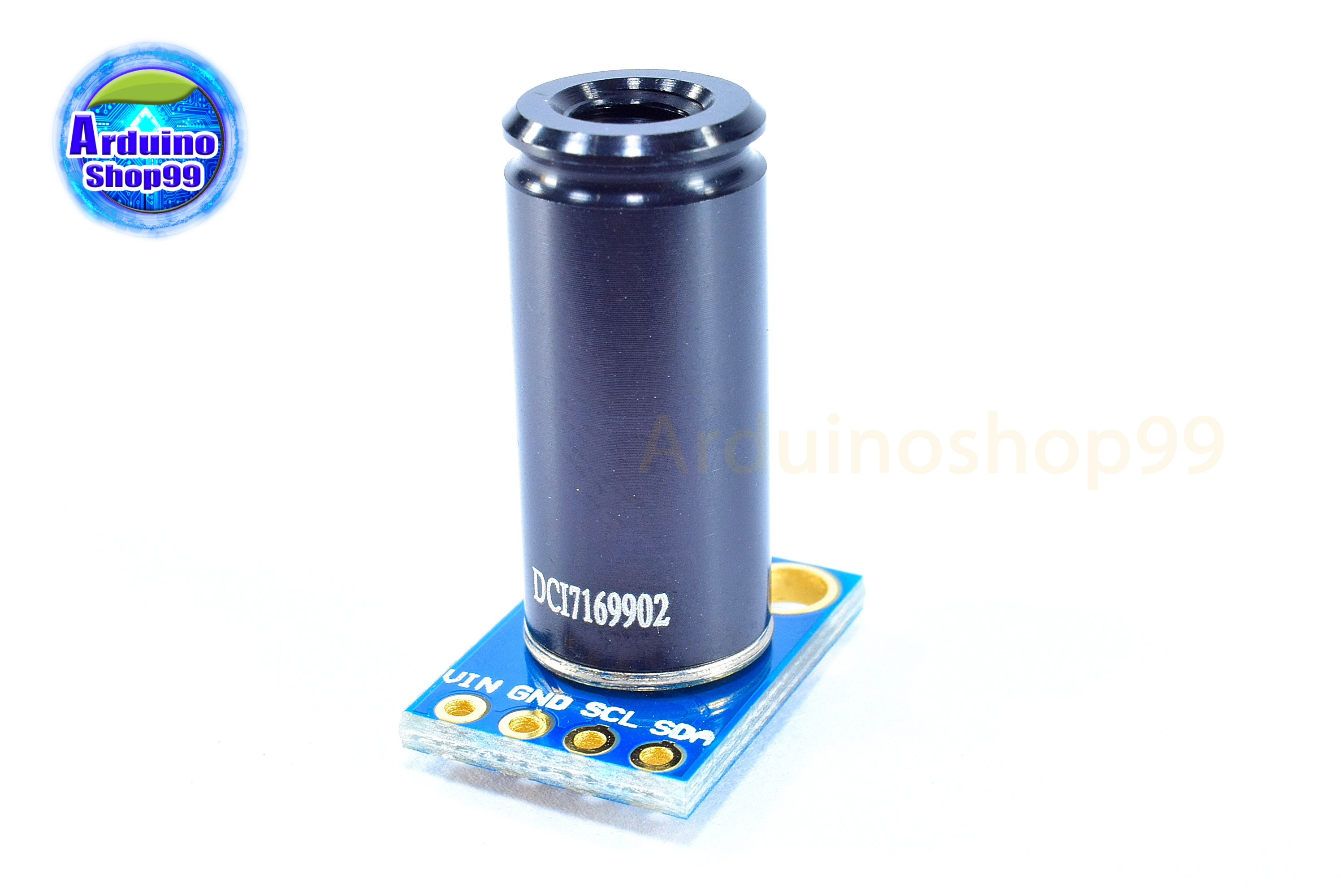

Module model : GY-906-DCI

Using the chip: MLX90614 - DCI

Power supply: 3-5v (internal low dropout voltage regulation)

Communication method: standard IIC communication protocol

High quality immersion gold pcb,

Size: 11.5*16.5mm

Weight: 2g each

Spot, shoot directly

  Features and benefits

* Small size and low cost

* Easy to integrate

* Factory calibration settings over a wide temperature range:

Sensor temperature range -40...+125 °C

Object temperature range -70...+380 °C

* Ta and To from 0 to +50 ° C temperature range, the accuracy can reach 0.5 ° C

*(medical) high precision calibration

* Measurement resolution up to 0.02 ° C

* Single and dual view versions

* Compatible with SMBus digital interface

* PWM continuous reading output

* 3V and 5V supply voltage

*The power supply voltage can be adjusted from 8...16V

* Energy saving mode

*Multiple packaging methods and measurement methods for different application areas

* Car level standard



Applications

* High precision contactless measurement

* Temperature comfort sensor for automotive air conditioning control system

* Air conditioning temperature sensing components for residential, commercial and industrial buildings

* Windshield anti-fog application

* Automobile view dead angle detection

* Industrial mobile component temperature control

* Printer, copier temperature control

* Home appliance temperature control

* Health care

* livestock monitoring

* Moving object detection

* Multi-zone temperature control – up to 100 sensors can be supported in two-wire communication

* Thermal relay / alarm

* Body temperature measurement

 Sheet : https://ciiva.com/manufacturer/melexis-3228

Data Sheet: http://melexis.com/Assets/IR-sensor-thermometer-MLX90614-Datasheet-5152.aspx

ติดตั้ง Library ก่อนใช้งาน

ESP8266 for OLED :https://github.com/ThingPulse/esp8266-oled-ssd1306

Library MLX90614 :https://github.com/adafruit/Adafruit-MLX90614-Library

 /*

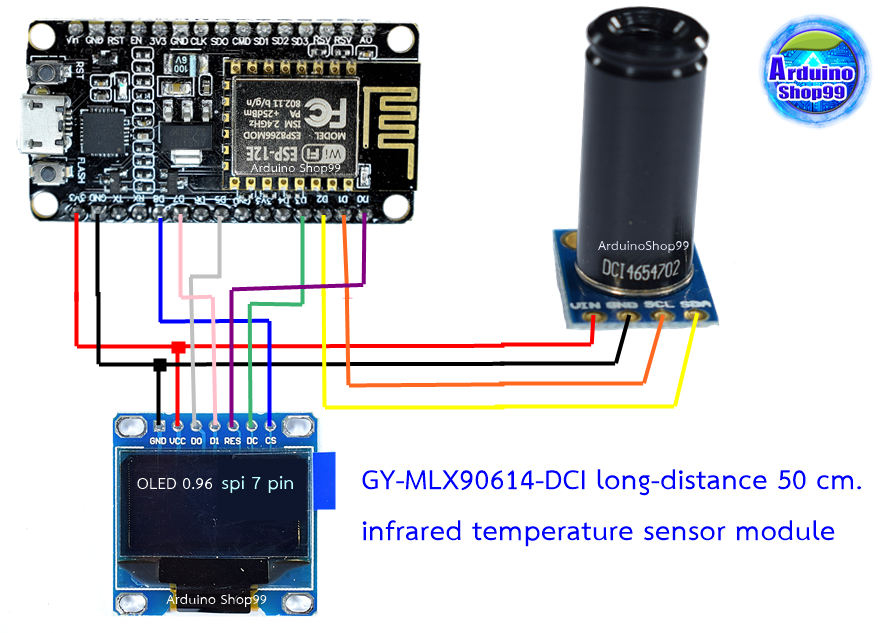

    Arduino with Test เซนเซอร์วัดอุณหภูมิแบบใช้อินฟาเรด GY-MLX90614-DCI long-distance 50 cm.
infrared temperature sensor module  For complete project details, visit:Arduinoshop99

*/



#include "SPI.h"

#include "SSD1306Spi.h"

#include "Adafruit_MLX90614.h"



Adafruit_MLX90614 mlx = Adafruit_MLX90614();

// Initialize the OLED display using SPI

// D5 -> CLK

// D7 -> MOSI (DOUT)

// D0 -> RES

// D2 -> DC

// D8 -> CS

SSD1306Spi  display(D0, D3, D8);



//--------------------------------

void setup() {

  Serial.begin(115200);

   // Initialising the UI will init the display too.

  display.init();

  mlx.begin();

   display.flipScreenVertically();

  display.setFont(ArialMT_Plain_10);

 }

//-------------------------------

void loop() {

 float c;

 float f;

  Serial.print("Ambient = "); Serial.print(mlx.readAmbientTempC());

  Serial.print("*C\tObject = "); Serial.print(mlx.readObjectTempC()); Serial.println("*C");

  Serial.print("Ambient = "); Serial.print(mlx.readAmbientTempF());

  Serial.print("*F\tObject = "); Serial.print(mlx.readObjectTempF()); Serial.println("*F");

    Serial.println();

     c= mlx.readObjectTempC();

     f= mlx.readObjectTempF();

      String Data = String(c);

      String Data2 = String(f);

  display.clear();

     display.setFont(ArialMT_Plain_16);          //TempC

    display.drawString(10, 0, "Temperature");

    display.setFont(ArialMT_Plain_24);

    display.drawString(10, 20, Data);

    display.setFont(ArialMT_Plain_10);

    display.drawString(85, 18, "o");

    display.setFont(ArialMT_Plain_24);

    display.drawString(85, 20, " C");



      display.setFont(ArialMT_Plain_16);       //TempF

    display.drawString(30, 45, Data2);

    display.setFont(ArialMT_Plain_10);

    display.drawString(80, 40, "o");

    display.setFont(ArialMT_Plain_16);

    display.drawString(85, 45, " F");

  display.display();

   delay(100);

}

คลิปทดสอบ
//www.youtube.com/embed/ekUhoU3pMZU
