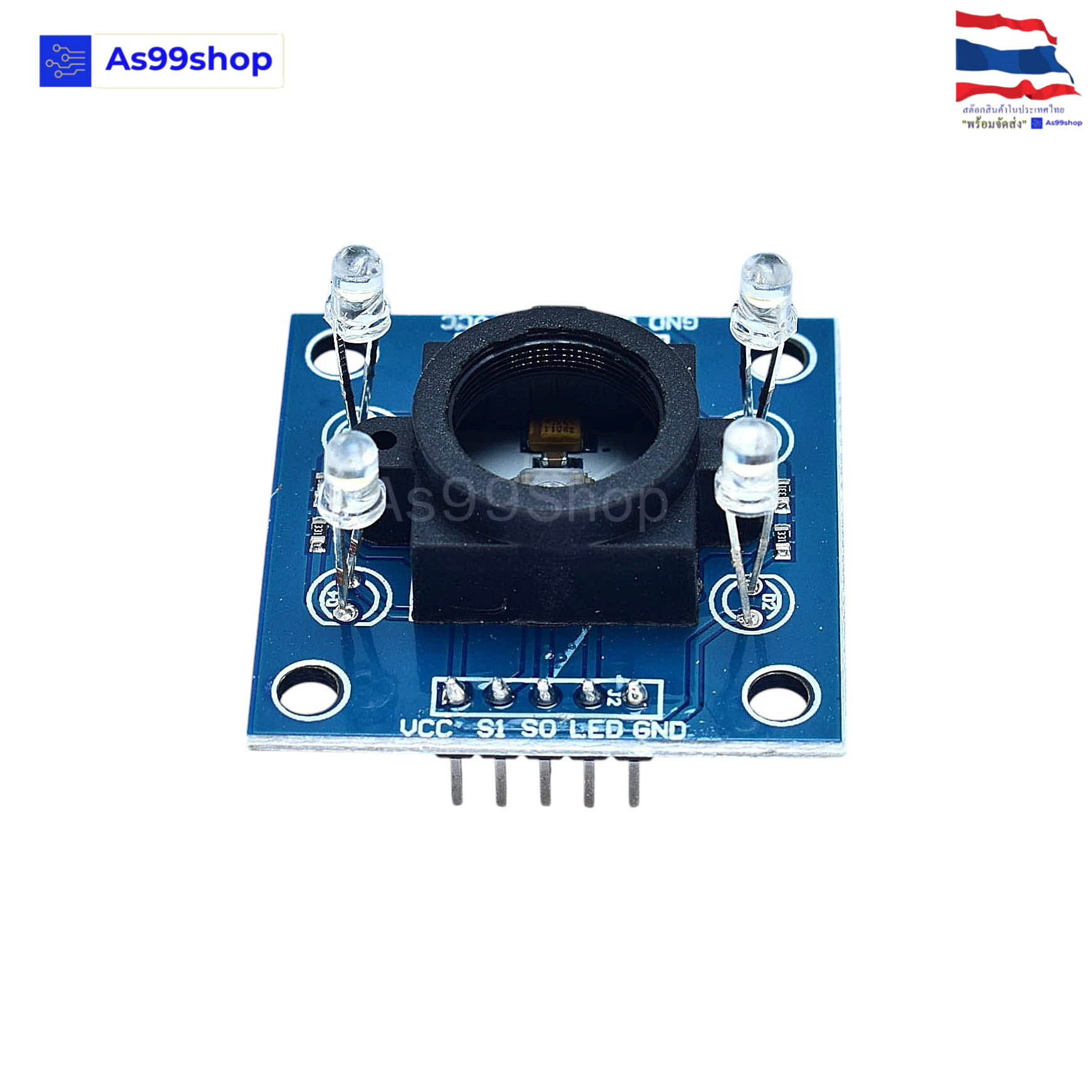

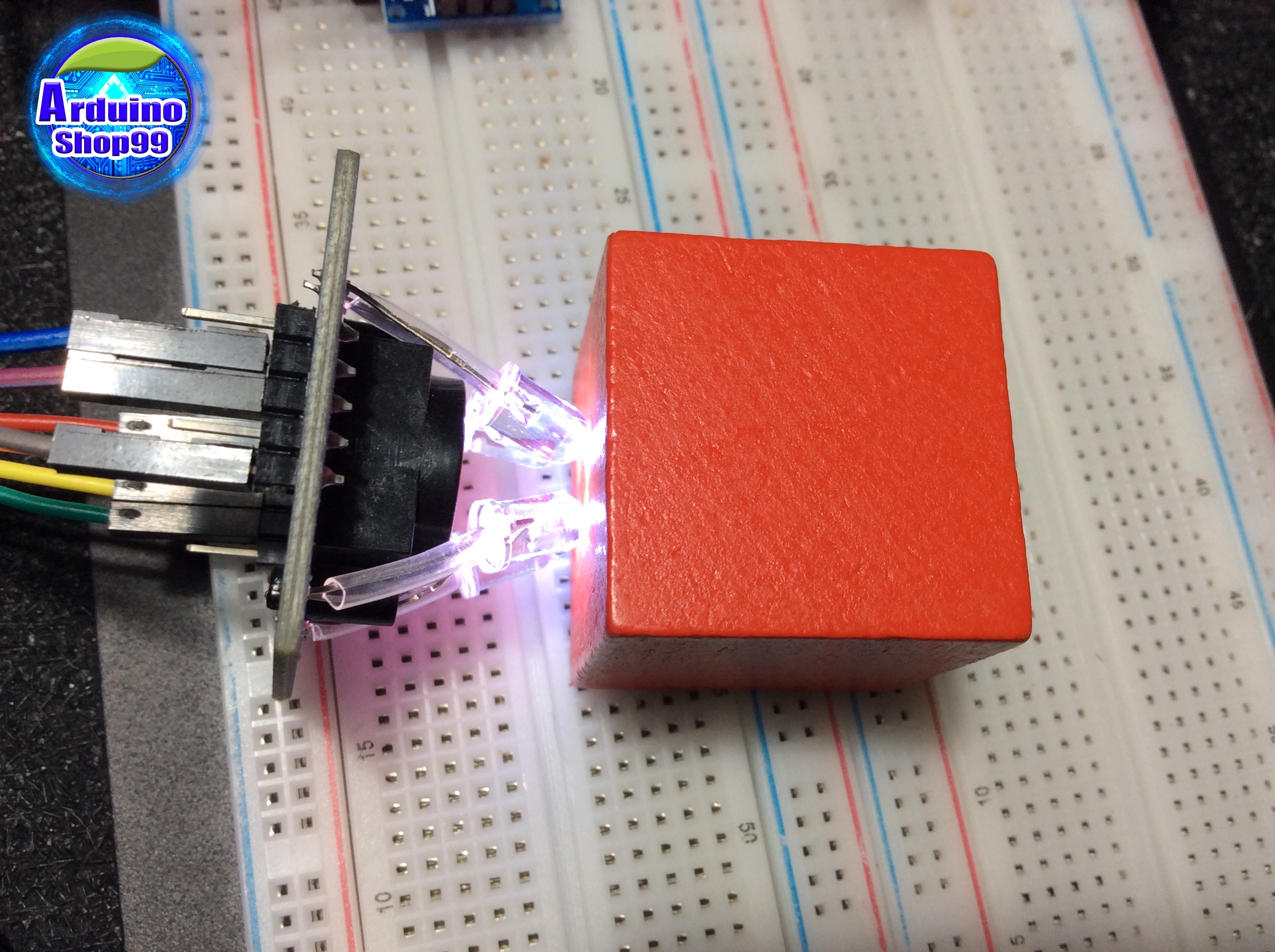

GY-31 TCS230 TCS3200 color sensor

เซนเซอร์อ่านค่าสี GY-31 TCS230 TCS3200 color sensor color recognition module color sensing module

Power supply pins:

• 2x GND

• 2x VCC

• 5V

The pins in the control unit:

• S0

• S1

• S2

• S3

• OUT

• LED

Code:

// TCS230 pins connected to Arduino

//int s0 = D3; esp8266

//int s1 = D4;

//int s2 = D5;

//int s3 = D6;

//int out = D7;

int s0 = 2; //nano

int s1 = 3;

int s2 = 4;

int s3 = 5;

int out = 6;

// Variables

int red = 0;

int green = 0;

int blue = 0;

void setup()

{

  Serial.begin(115200);

  pinMode(s0, OUTPUT);

  pinMode(s1, OUTPUT);

  pinMode(s2, OUTPUT);

  pinMode(s3, OUTPUT);

  pinMode(out, INPUT);

  digitalWrite(s0, HIGH);

  digitalWrite(s1, HIGH);

}

void loop()

{

  color();

  Serial.print(" R");

  Serial.print(red, DEC);

  Serial.print(" G");

  Serial.print(green, DEC);

  Serial.print(" B");

  Serial.print(blue, DEC);

delay(600);

  if (red < blue && red < green && red <= 13)

  {

      if (red <=10 && green <=10 && blue <=10){

     Serial.println("WHILE");

  } else{

   Serial.println(" -> (Red Color)");

  }

}

else if (blue < red && blue <=10 )

  {

      if (red <=10 && green <=10 && blue <= 10){

     Serial.println("WHILE");

  }else {

   Serial.println(" -> (Blue Color)");   }

  }

  else if (red > green && green > blue && green > 11 )

  {

    if (red <= 10 && green <=10 && blue <= 10){

     Serial.println("WHILE");

  } else{

   Serial.println(" -> (Green Color)");  }

  }

  else{

  Serial.println();

  }

}

void color()

{

  digitalWrite(s2, LOW);

  digitalWrite(s3, LOW);

  //count OUT, pRed, RED

  red = pulseIn(out, digitalRead(out) == HIGH ? LOW : HIGH);

  digitalWrite(s3, HIGH);

  //count OUT, pBLUE, BLUE

  blue = pulseIn(out, digitalRead(out) == HIGH ? LOW : HIGH);

  digitalWrite(s2, HIGH);

  //count OUT, pGreen, GREEN

  green = pulseIn(out, digitalRead(out) == HIGH ? LOW : HIGH);

}

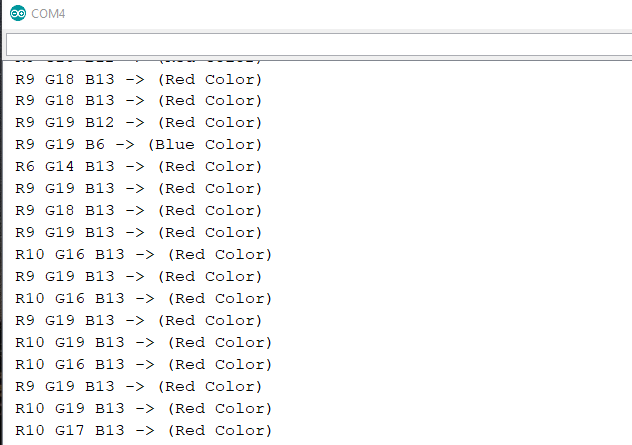

:ค่าสีที่อ่านได้ แต่ละตัวอย่างแต่ละที่ จะต่างกันไปเล็กน้อย ตามสีที่อ่าน
