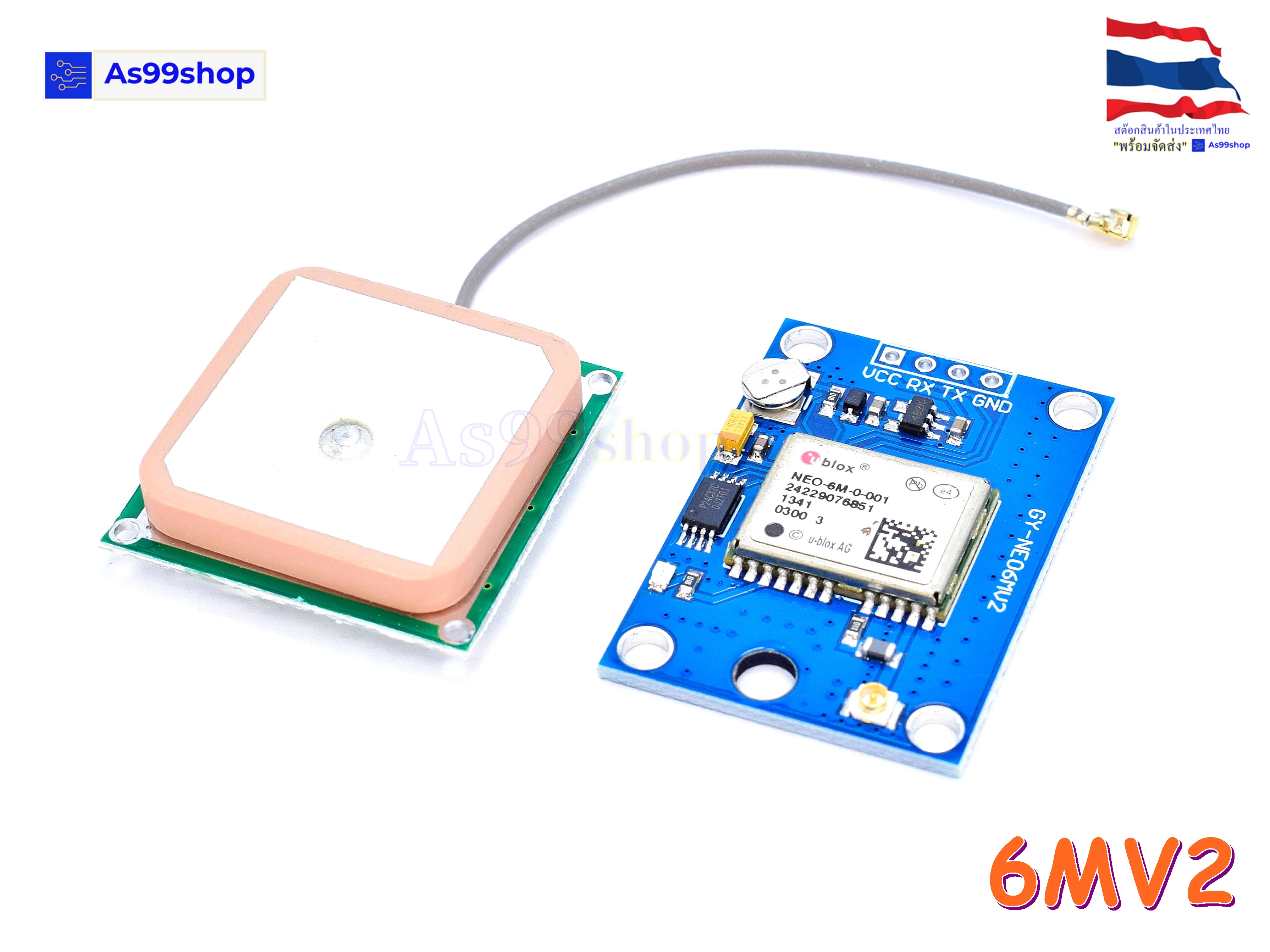

GY-NEO6MV2 GPS module NEO6MV2 with antenna

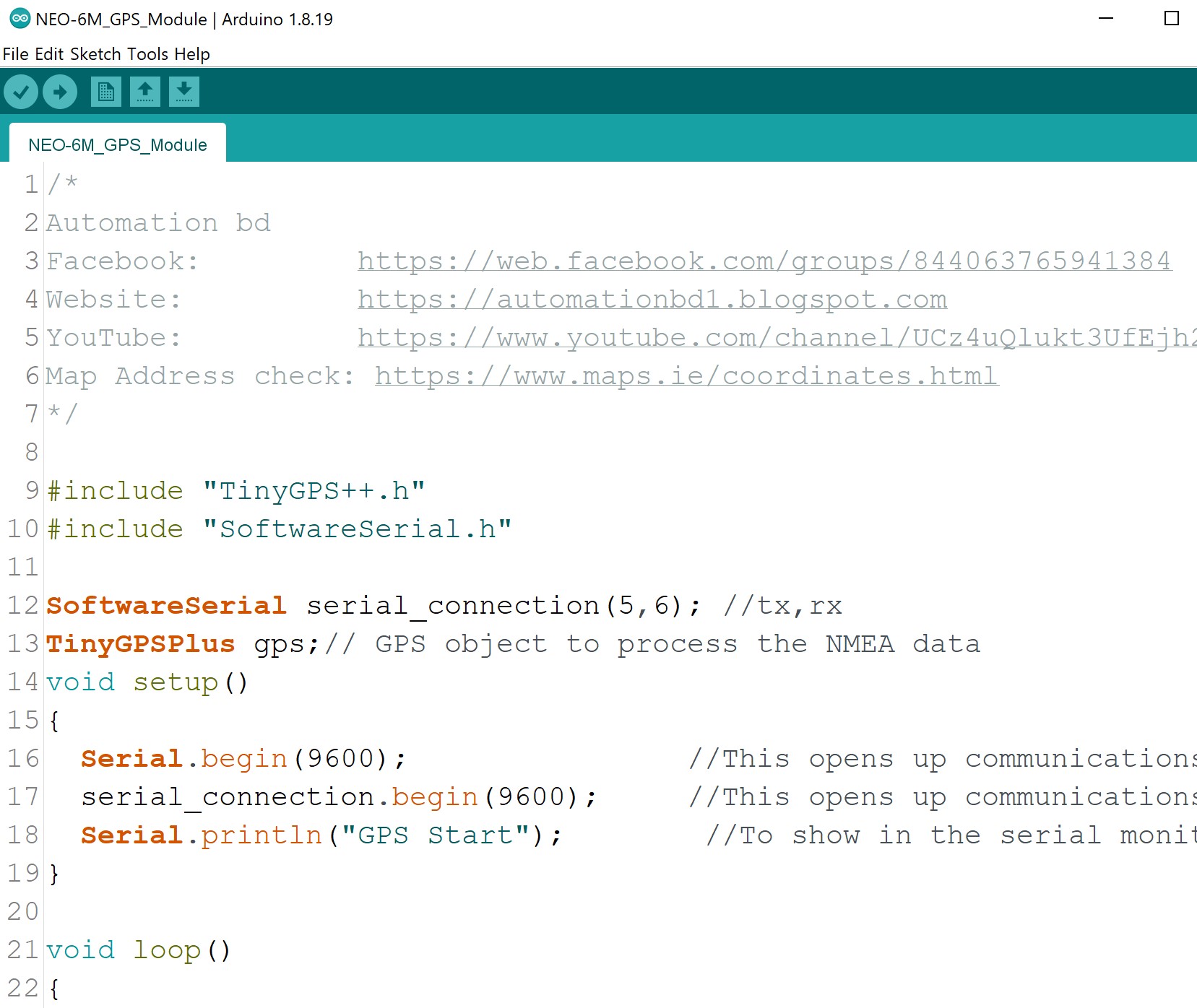

**หลังจาก GPS Start จะใช้เวลา1-5 นาที ในการหาตำแหน่ง รอจนไฟ LED สีแดงกระพริบถึงจะได้ตำแหน่ง( source code drive.)
(มีสต็อกสินค้าในประเทศไทยพร้อมจัดส่ง)
Features:

• Based on u-blox NEO-6M GPS module with on-board backup battery and built-in EEPROM.
• Comes with external U.FL ceramic antenna for better reception.
• It is compatible with various flight controller boards designed to work with a GPS module, APM2.0 and APM2.5 just to name a few.
• This module have built-in voltage regulator and it is sometime referred as GY-GPS6MV2.
• Operating voltage: 3.3V to 5VDC.
• Communication interface: UART TTL, 9600bps.
• LED signal indicator.
• Pin-out for power and interface
  • VCC:      3.3 to 5VDC
  • RX:         Data receive in ( 6 input to GPS module)
  • TX:          Data transmit out ( 5 Out from GPS module)
  • GND:     Ground (Logic and power ground)
• Dimension: 36 x 26 mm.
• Weight: 22g.
• https://drive.google.com/file/d/1fYtc5O6ZedOwyYj42iH60yV5AELvB01x/view
