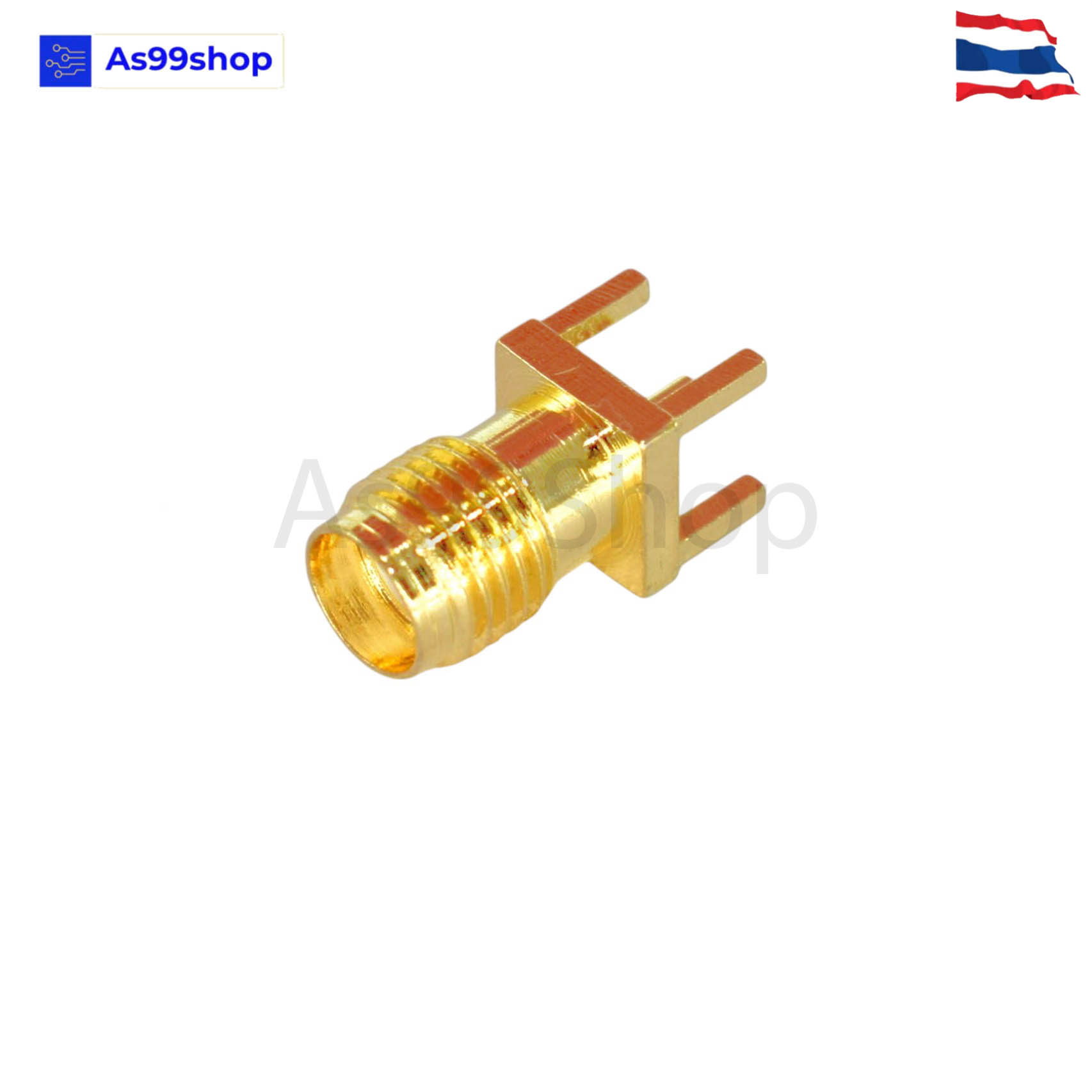

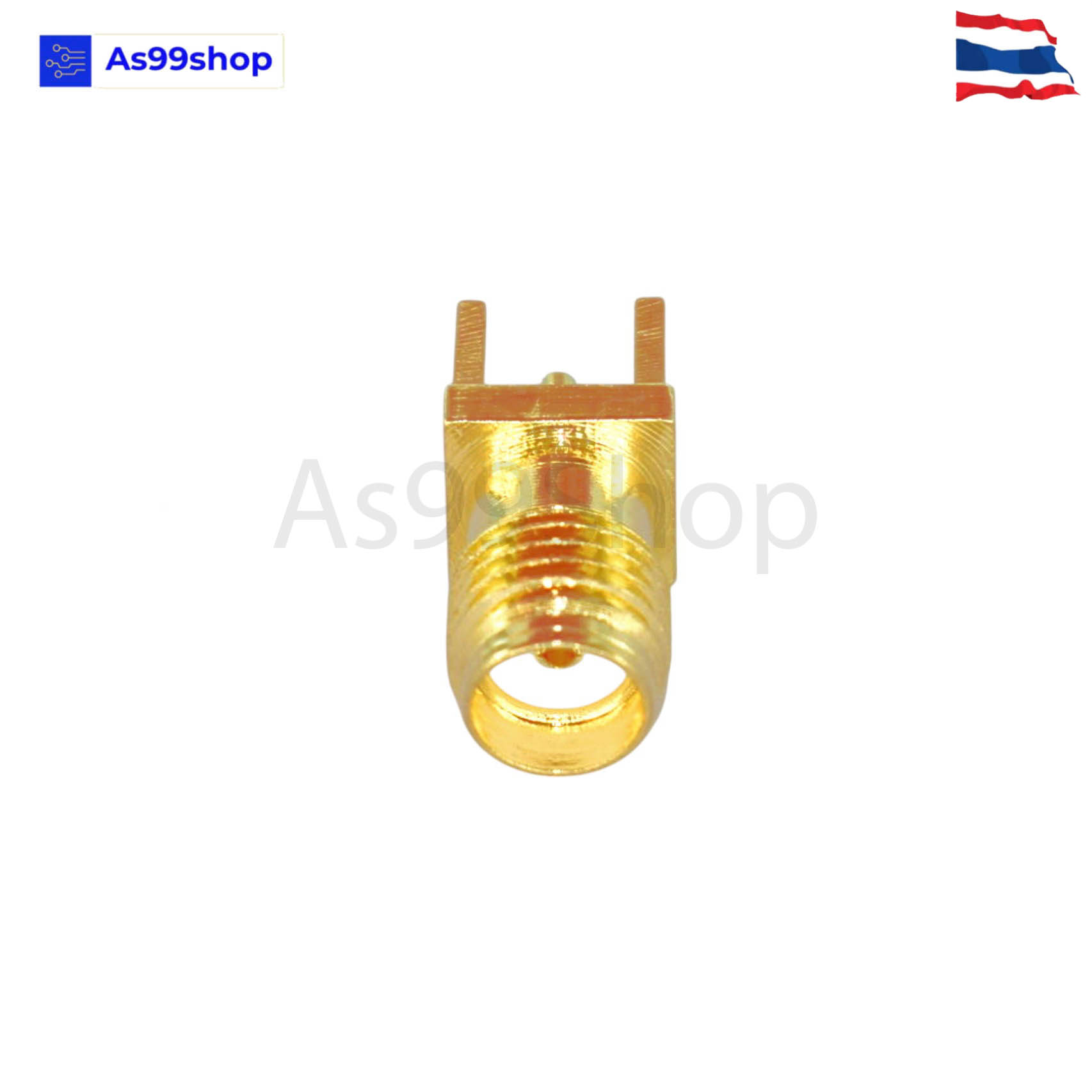

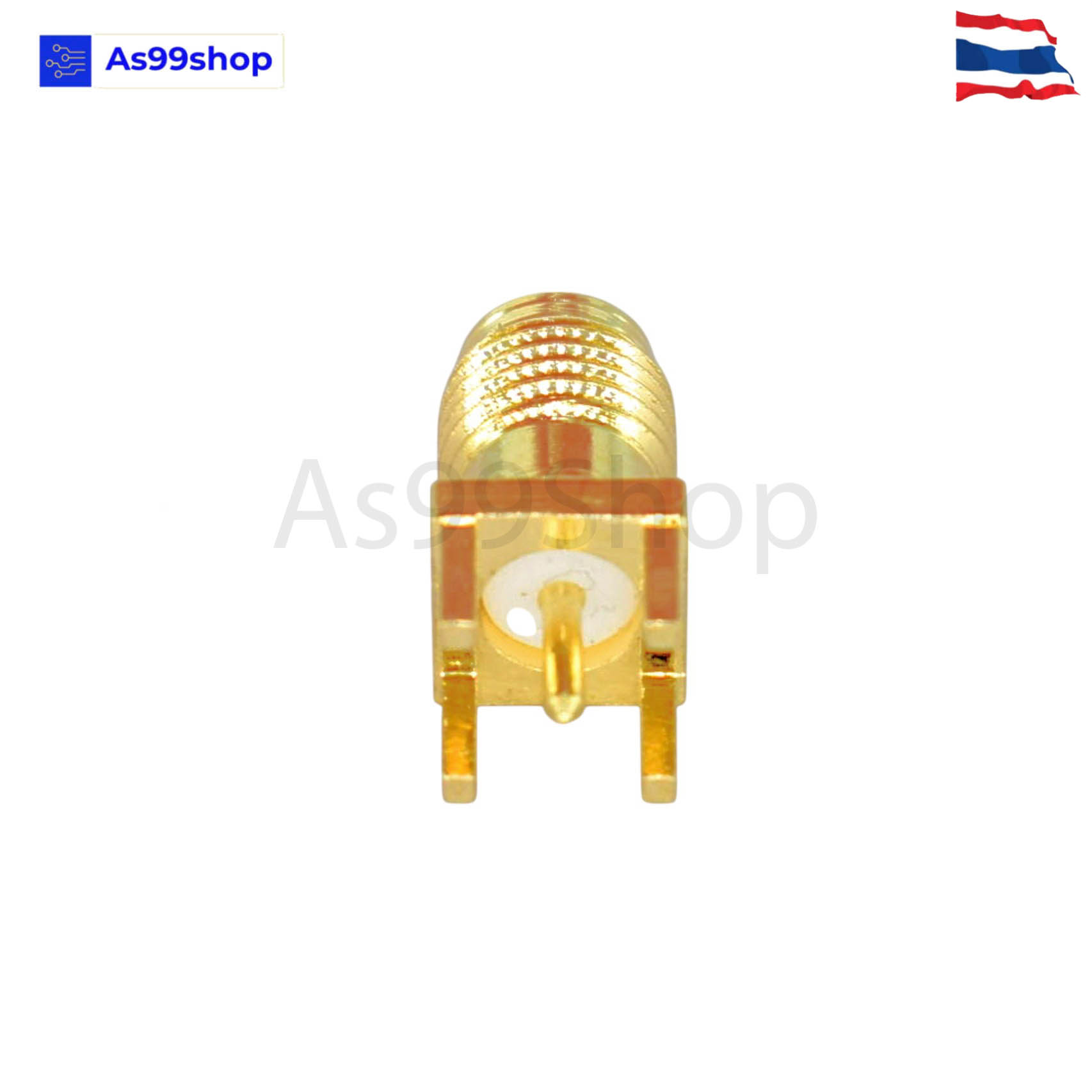

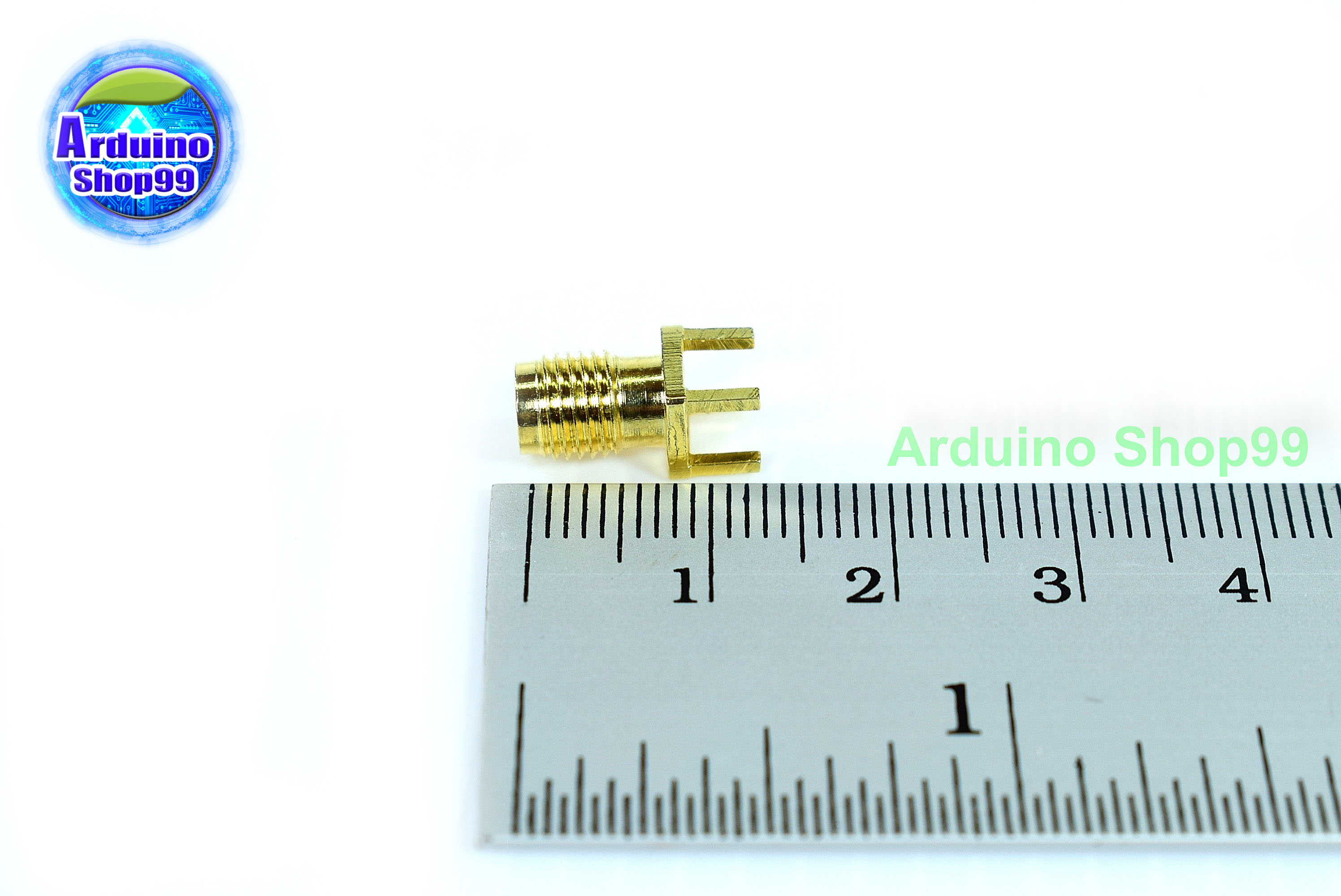

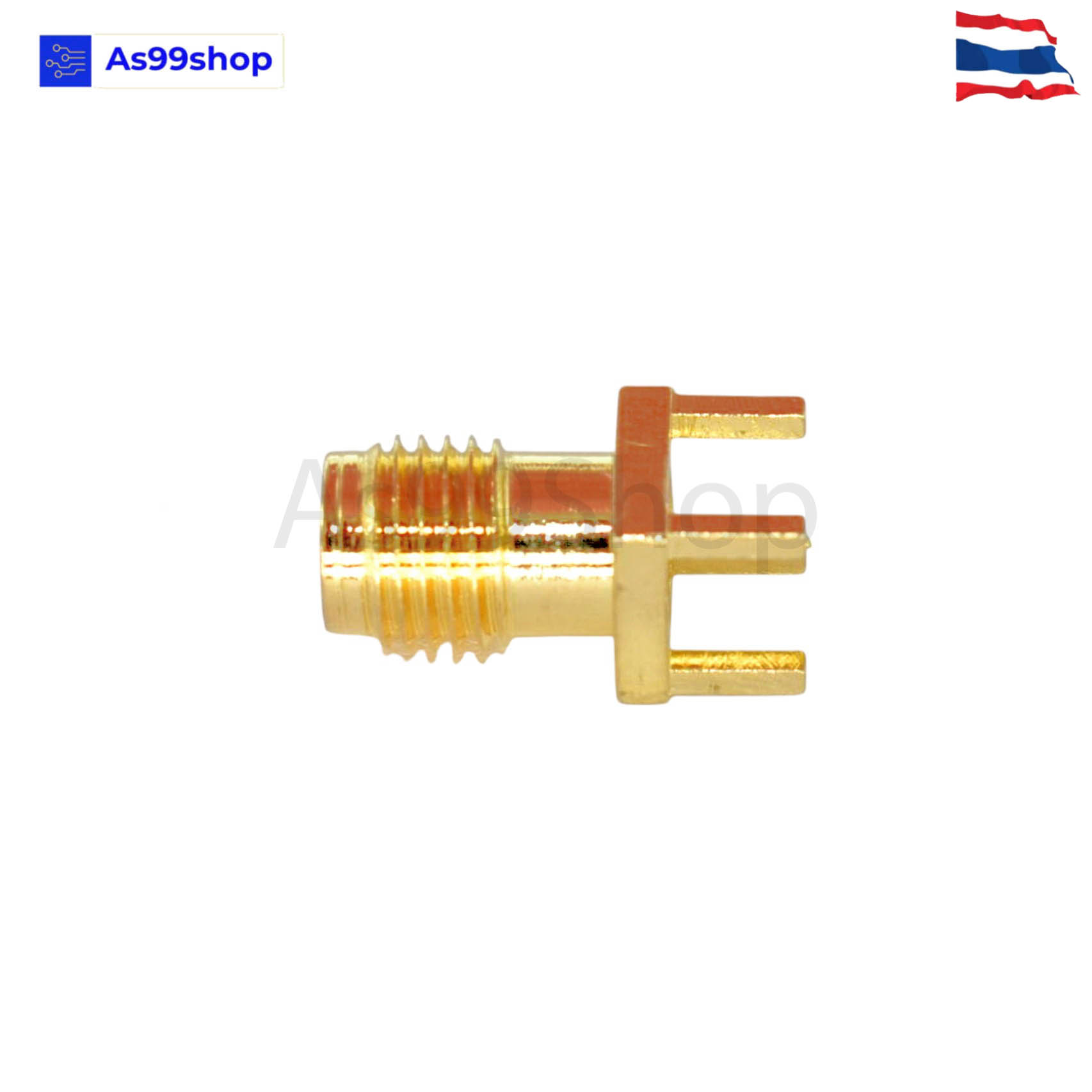

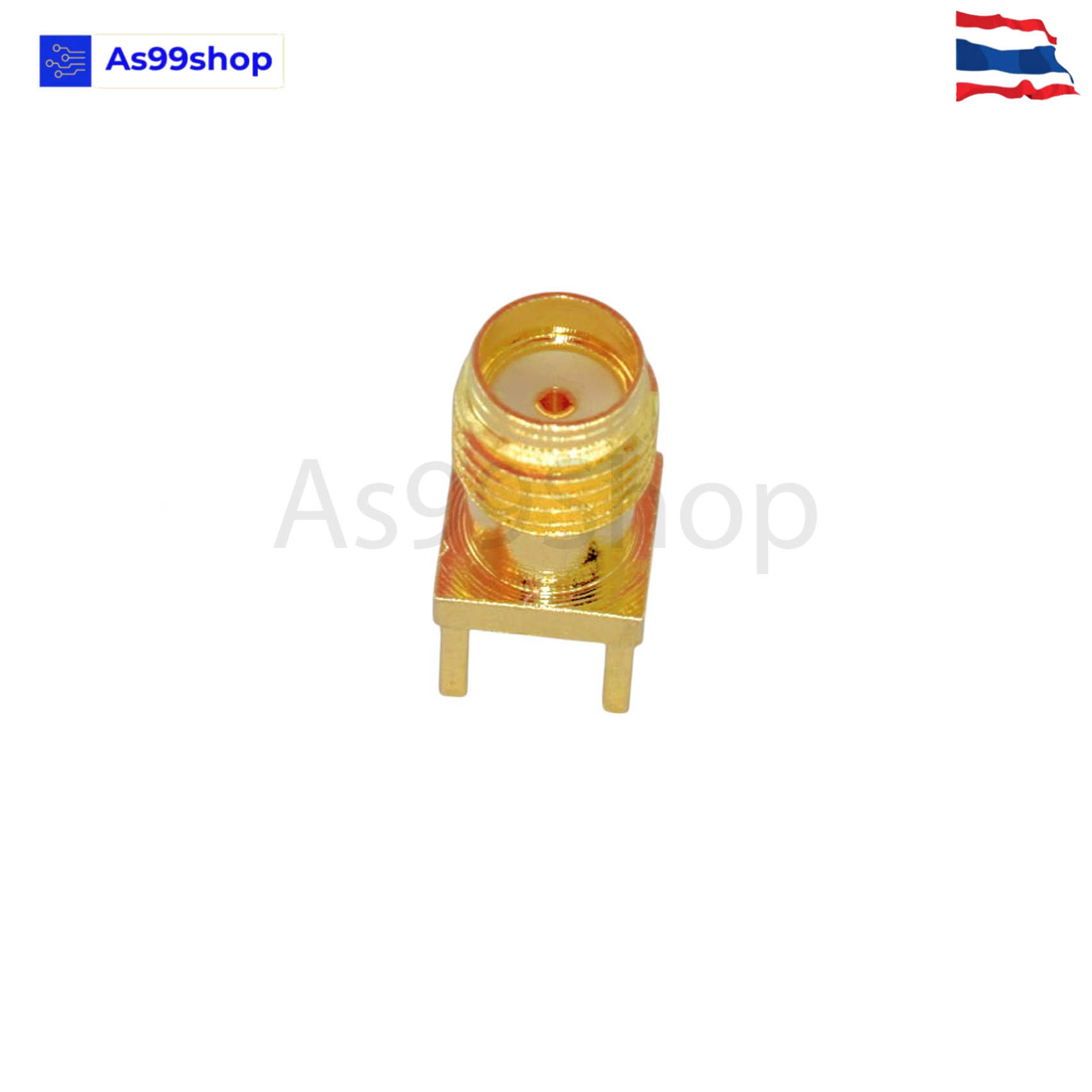

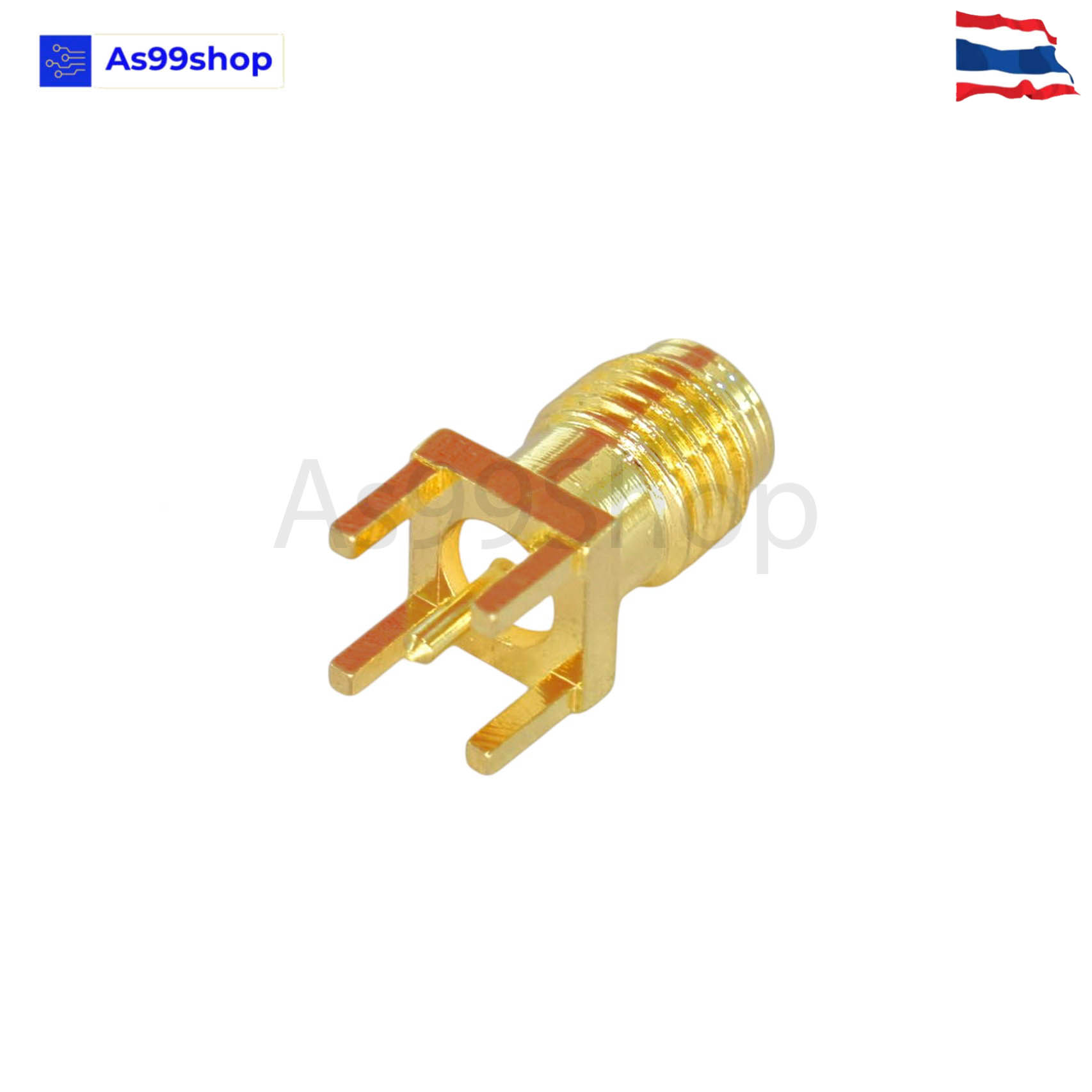

หัวต่อเสาอากาศ Antenna SMA Female Jack 1.6mm

SMA Female Jack 1.6mm Spacing Edge Solder PCB Straight Mount RF Connector Gold Plated สำหรับต่อลง PCB.

Specification:

Temp.range: -65～ +165 (PE Cable -～ +85)

Vibration: MIL-STD-202,Method 213

Impedance: 50Ω

Working Voltage: 335V max

Withstand Voltage: 1000V rms

Contact resistance:Center Contact≤3mΩ

Outer Contact≤2mΩ

Insulation resistance:≥5000 mΩ

Insertion loss: ≥0.15 dB/6GHz

VSWR Straight: ≤1.10+0.002f

≤1.05+0.001f

Right angle:≤1.20+0.00

≤1.10+0.001f

Durability(mating): ≥ 500 (cycles)
