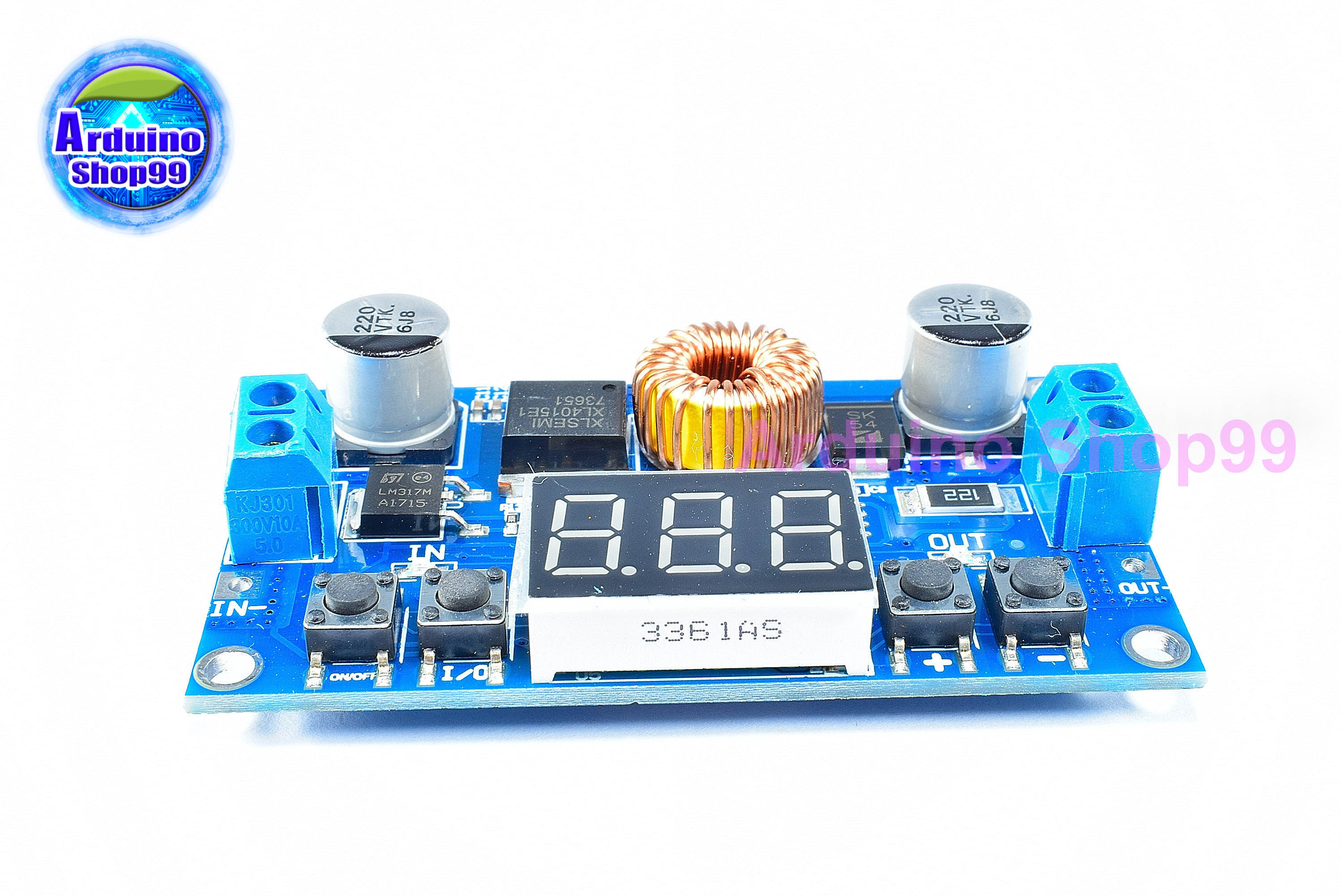

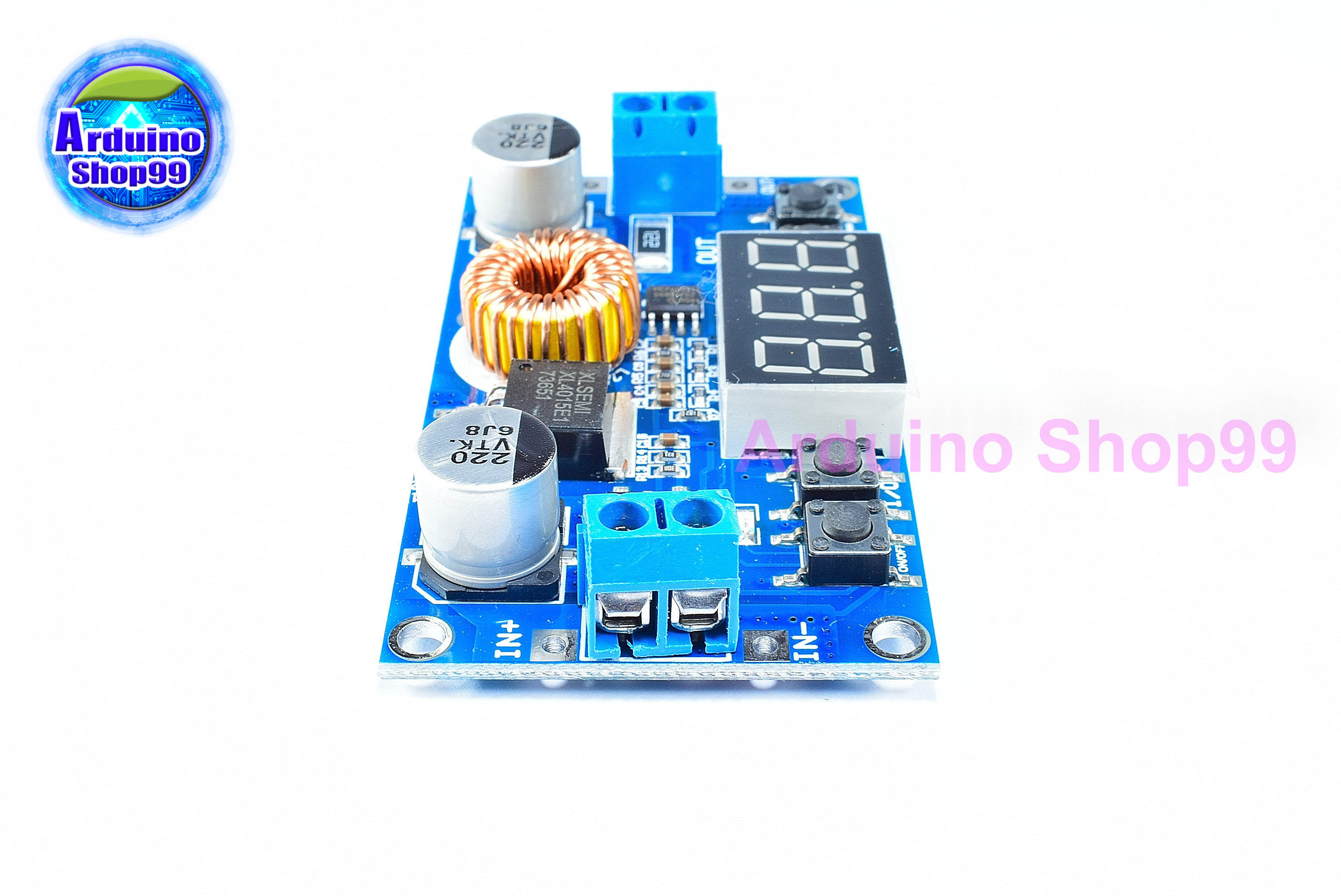

step-down module CNC power supply digital control step-down แปลงไฟจาก 5.0~36V to 1.2V-32V 5A

step-down module CNC power supply digital control step-down แปลงไฟจาก 5.0~36V to 1.2-32V 5A with voltmeter DC-DC adjustable buck module high power

5A CNC step-down module

Very good performance, very functional

The operation is very simple and the design is very user-friendly

Module highlights:

5A digital control power supply , voltage adjustment can be easily realized by 2 buttons , easy to use.

On-board voltmeter with input and output voltage indicators for a clear view of the status.

One button emergency stop. ( One button to turn off the power output )

The default boot output status can be set. (The default " ON " status or " OFF " status)

All set parameters are not lost when power is lost.

5A , high power, high efficiency, low ripple.

special function:

“ ON/OFF ” button: Press the button to turn off the power output. Press and hold the button for 2 seconds to release. You can set the default power-on output status. “ ON ” has power-on output, and “ OFF ” power-on has no output.

Module performance:

● Input voltage is 5.0~36V . (The input voltage must be at least 1V higher than the output voltage )

● Adjustable output voltage range from 1.2V to 32V continuously adjustable.

● Output current up to 5A , it is recommended to use within 4.0A .

● The output power can reach 75W . It is recommended to use it within 50W . If it exceeds 50W , please strengthen the heat dissipation .

● High conversion efficiency, up to 96% . (Efficiency is related to input and output voltage, current, and voltage difference)

● Load regulation S ( I ) ≤ 0.8% , voltage regulation S ( u ) ≤ 0.8% .

● With overheat protection and short circuit protection.

● Size  66*39*18mm .

● Weight 33g.

[ON/OFF] key: One button turns off the output voltage, long press to set the default boot output state.

[I/O] key: One button switches the input and output voltage value display, long press to close the digital tube.

[+] button: The output voltage of the touch button is increased by 0.1V, and the long press is raised by 1V.

[-] button: The output voltage of the touch button is reduced by 0.1V, and the long press is reduced by 1V.
