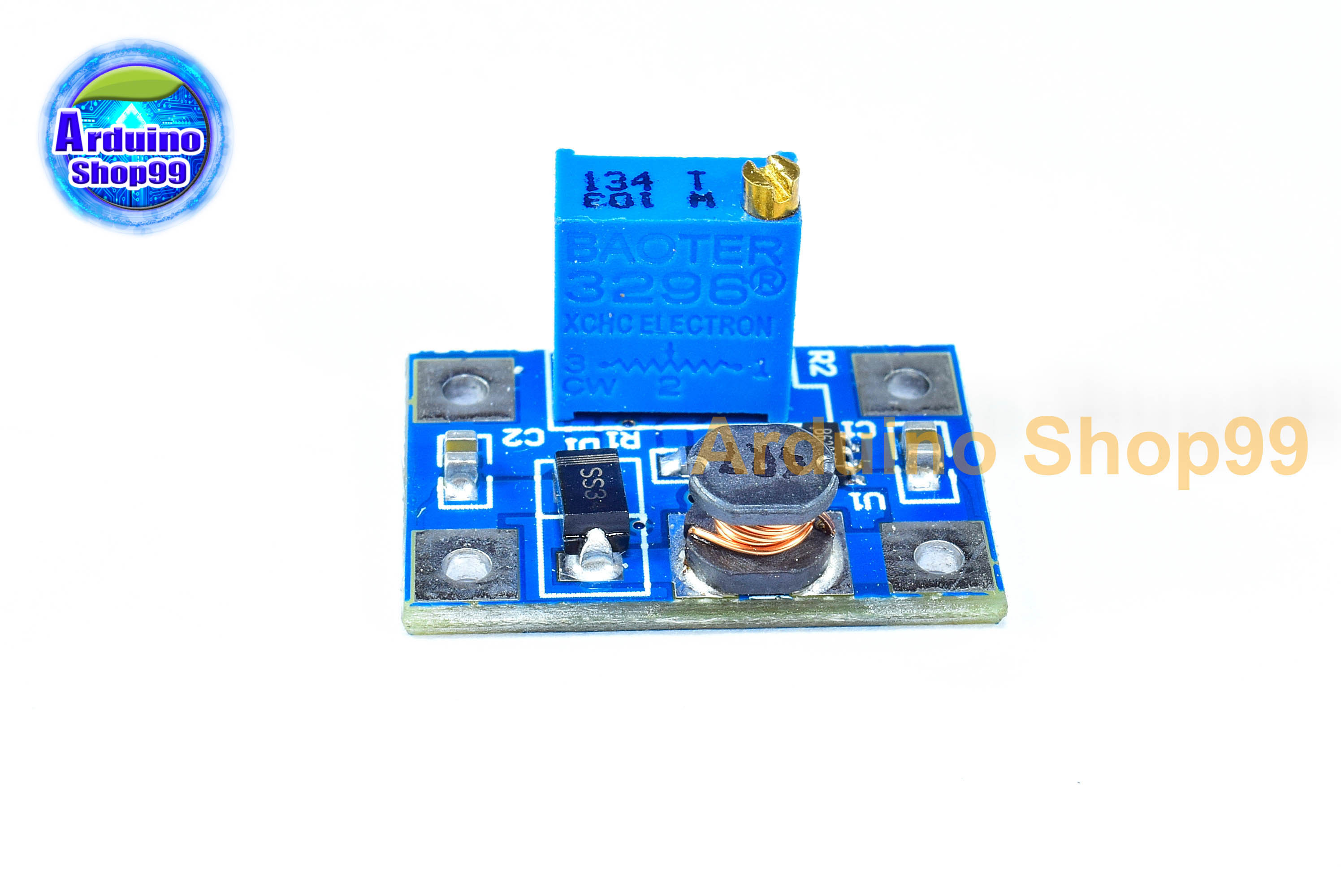

High Current 2A SX1308 DC-DC Adjustable Boost Module แปลงไฟจาก 2-24V to 2-28V

Description:



Booster module containing the chip SX1308 SX1308 offers high performance and small size. Power output is adjustable up to 28V, and the interior can include transition of complementary metal oxide semiconductor solvent resistance with the lowest RDS 100mΩ, which can power up to 2A.

property:

1. vibration frequency 1.2MHz

2. High efficiency up to 95%

3. circuit, short circuit protection system to prevent overheating.

4. 10k adjust the voltage to adjust the voltage output.

5. Network products used in 3G, digital products, mobile power supply, power supply, batteries, accessories, etc.

Technical parameters:

1. Maximum input voltage: DC 2-24V.

2. Maximum output voltage: DC 2-28V.

3. Switching Frequency: 1.2MHz.

4. Output Power Max: 2A.

In combination with:

Module Booster 1 x SX1308
