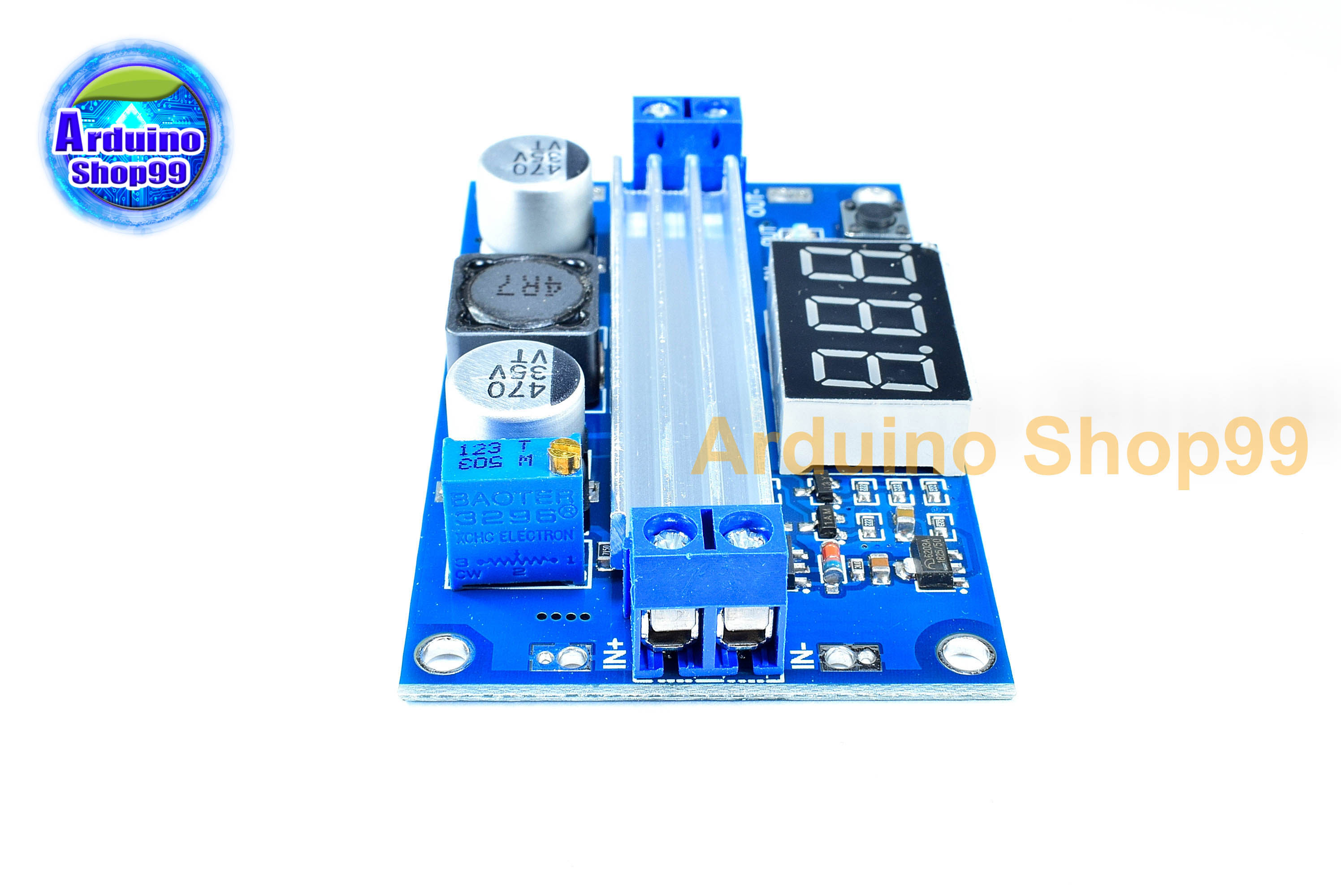

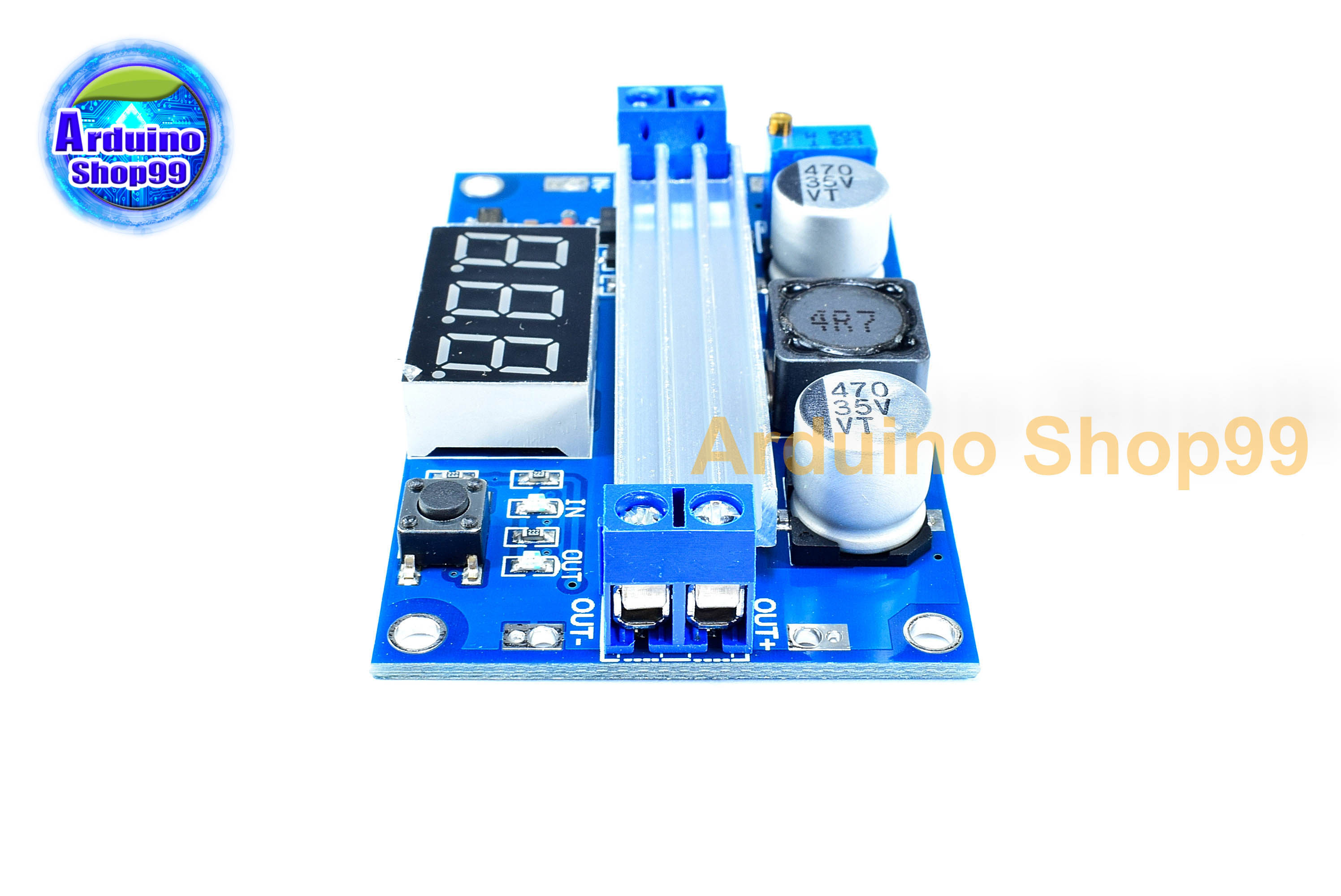

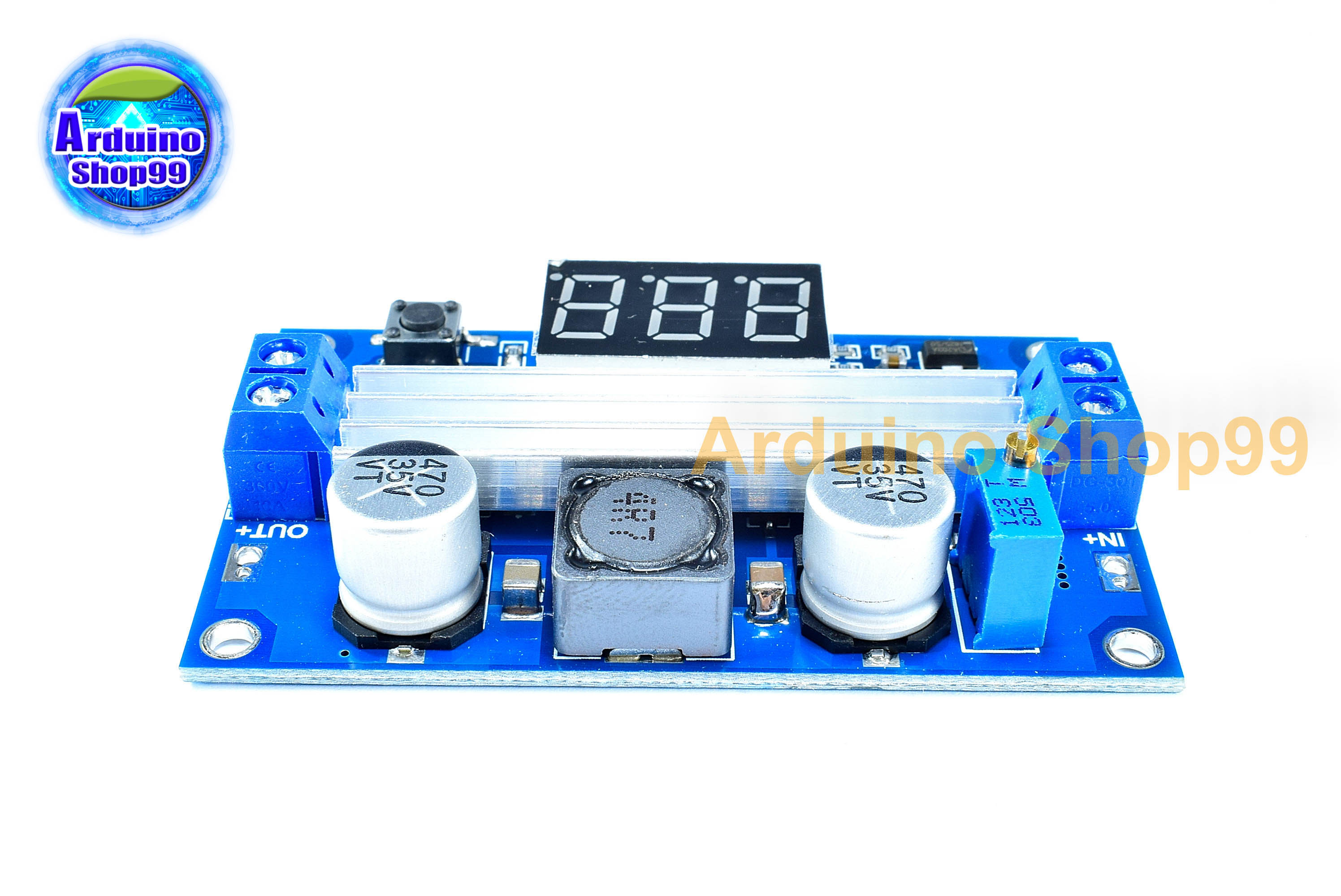

DC-DC high power adjustable boost module 3.0~35V liter 3.5~35V 100W with digital voltmeter(step up)

DC-DC high power adjustable boost module แปลงไฟจาก 3.0~35V liter 3.5~35V 100W 6A with digital voltmeter

 Performance parameters:

1 , input voltage: 3 ~ 35V DC ( Note: input voltage is less than 4V , the onboard voltmeter is invalid )

2 , input current: 9A ( max )

3 , the output voltage: 3.5 ~ 35V DC ( this board is the booster board, the output voltage should be >= input voltage )

4 , output current: 6A ( max )

5 , output power: 75W , (when the input and output voltage are greater than 20V , it can reach 128W )

6 , conversion efficiency: 96.7% (highest)

7 , output ripple: 24mV (TYP)

8 , onboard voltmeter range: 4 ~ 40V , error +-0.1V

9 , short circuit protection: there (limited current 14A ) . Tips: When accessing a high-power load, it is recommended to start the power and then connect to the load because the surge current is very high.

10 , input reverse connection protection: none (if necessary, please input a large current diode in the input string).

11 , length x width x height = 67*43*12MM (without copper posts)
