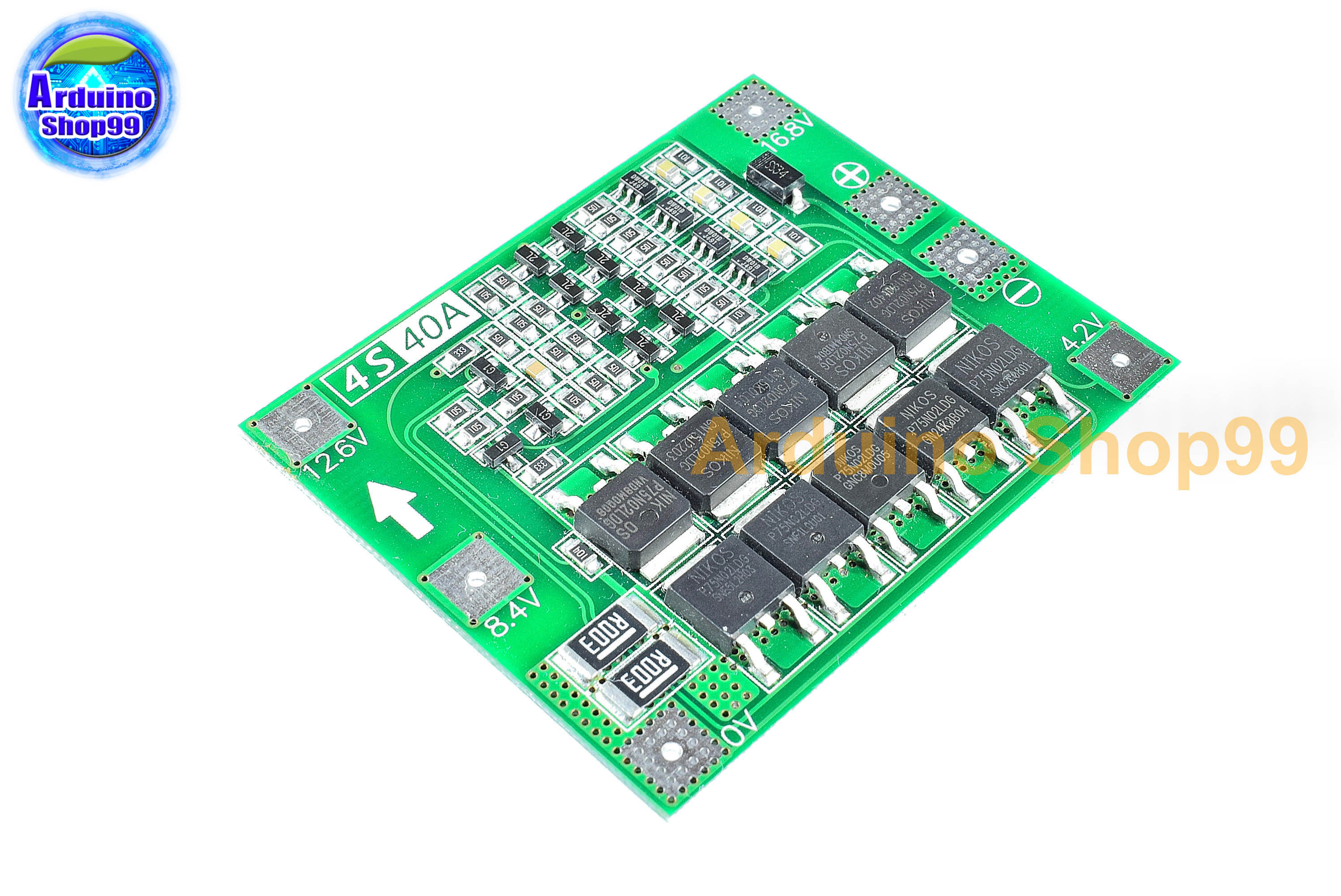

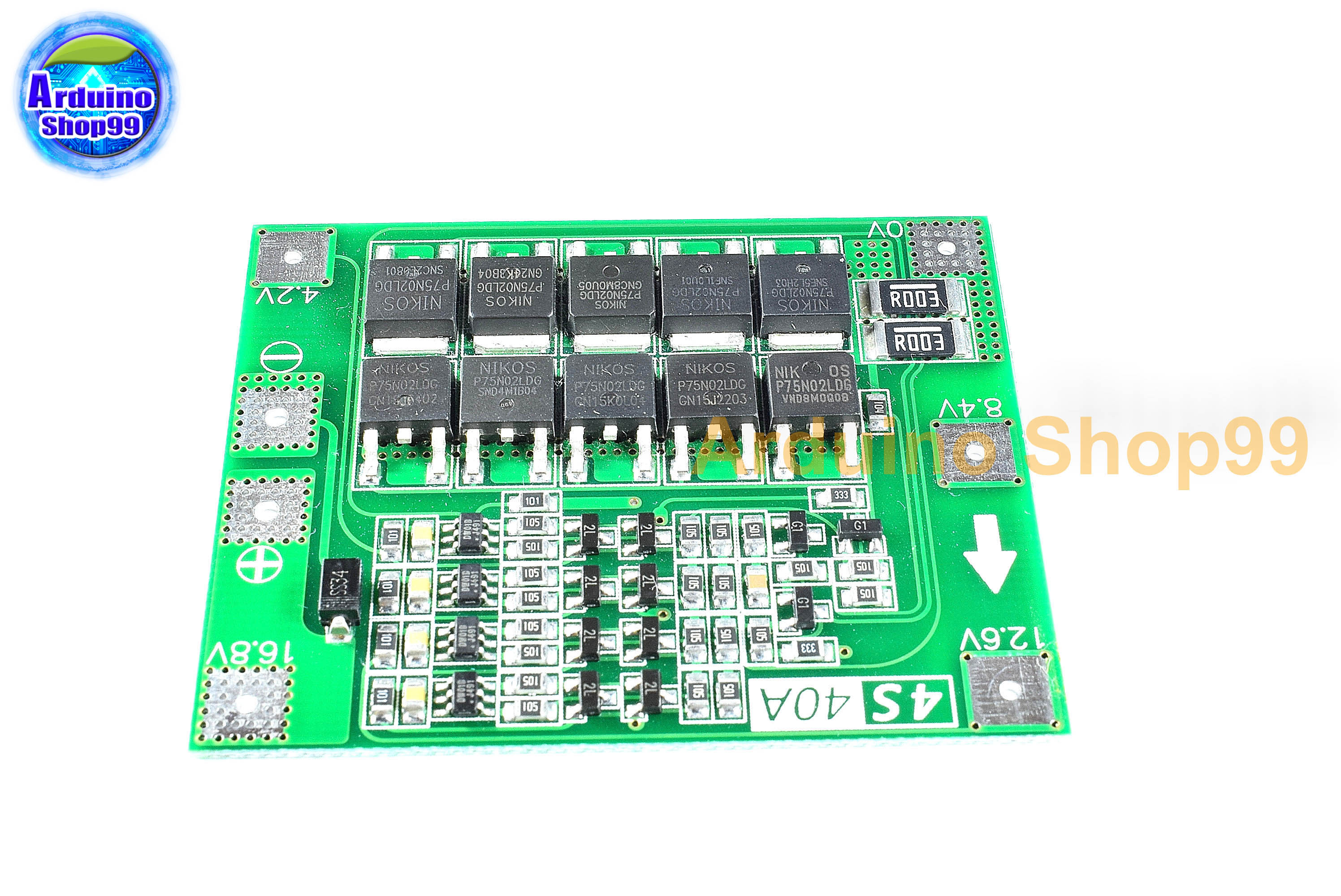

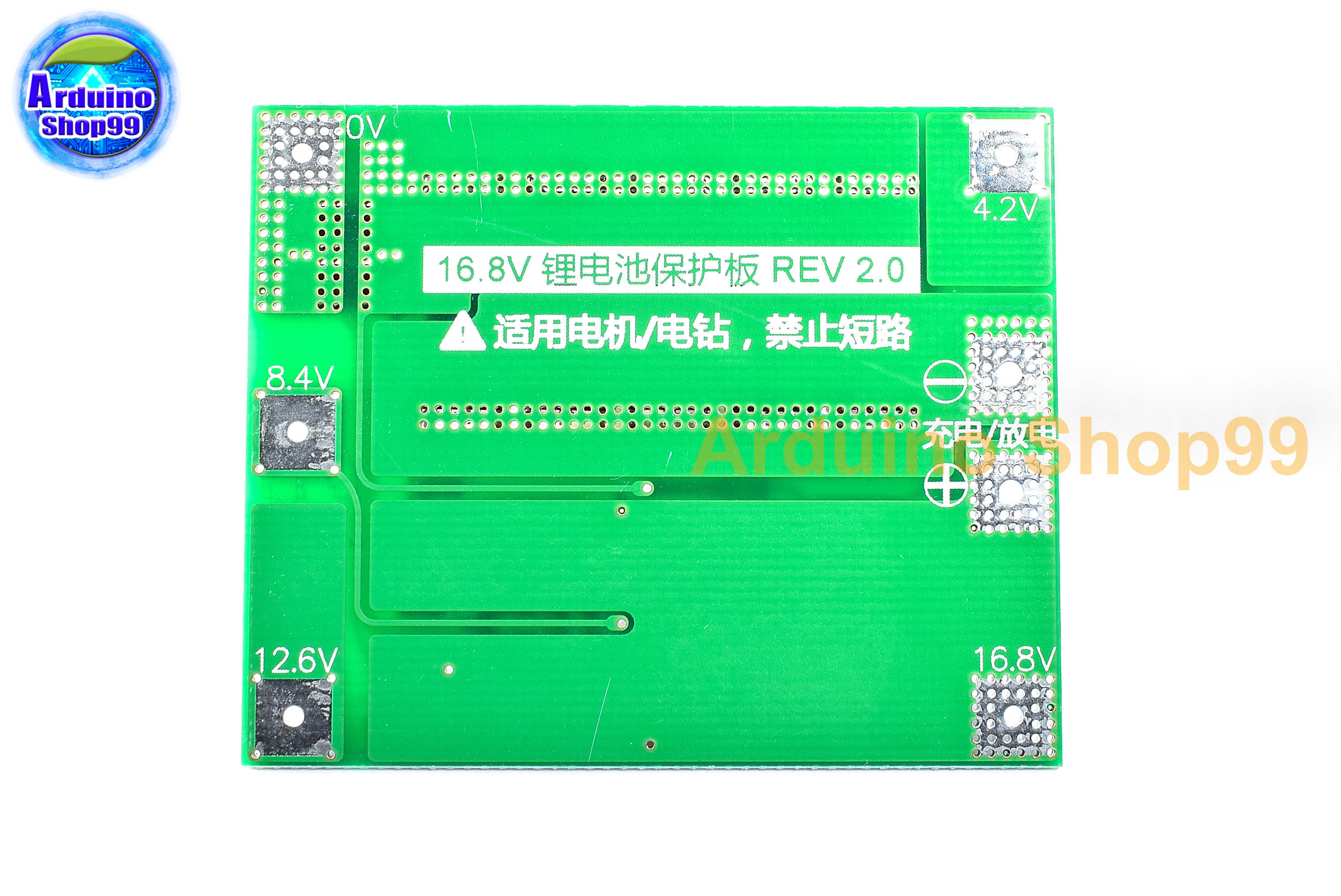

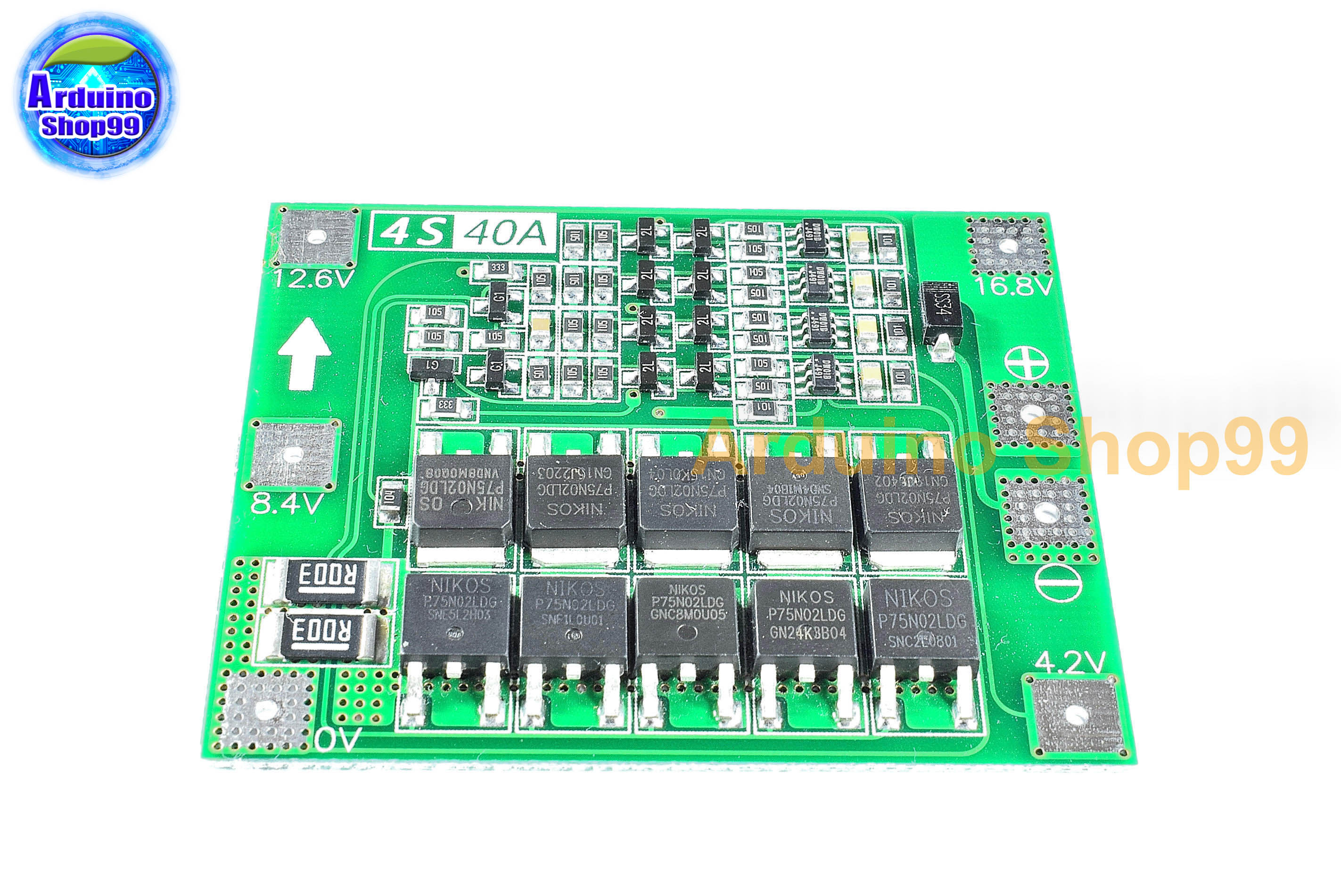

4S 40A Li-ion Lithium Battery 18650 Charger PCB BMS Protection Board with Balance For Drill Motor 14.8V 16.8V Lipo Cell Module

Integrated 10 low load resistance MOS tube, continuous discharge 40A, 100mA balanced current, for electric drill/sprayer/ LED lights/low power inverter.

4S 16.8V 40A lithium battery protection board

Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, polymer lithium battery)

 Charging voltage: 16.8V - 18.1V

Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use)

 Continuous charge current (upper limit): 20A

 Note:this item is  Balanced version .If you need other Version,please contact us.The 3 version price is different

 Standard version: suitable for starting current below 60A, power 100W below the drill.(Not balanced function)

 Enhanced version: for starting current below 80A, power 135W below the drill.(Not balanced function)

 Balanced version: suitable for starting current below 80A, power 220W below the drill.(with balance)

Enhanced version Purchase link：Please click here

Note 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill!!).

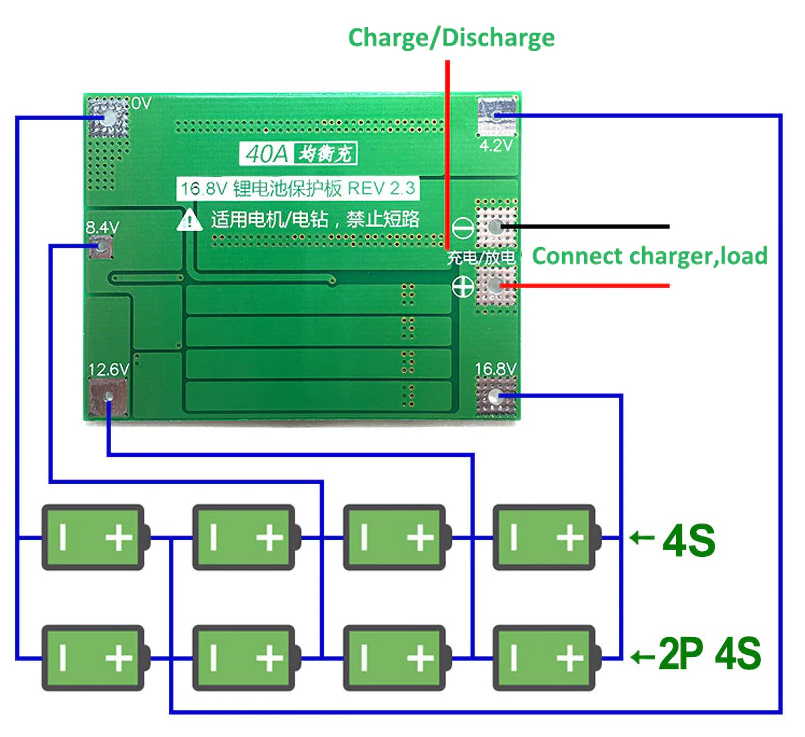

Note 2: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short circuit.

Note 3: When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.

Note 4: 4 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster battery that group is poor battery.
