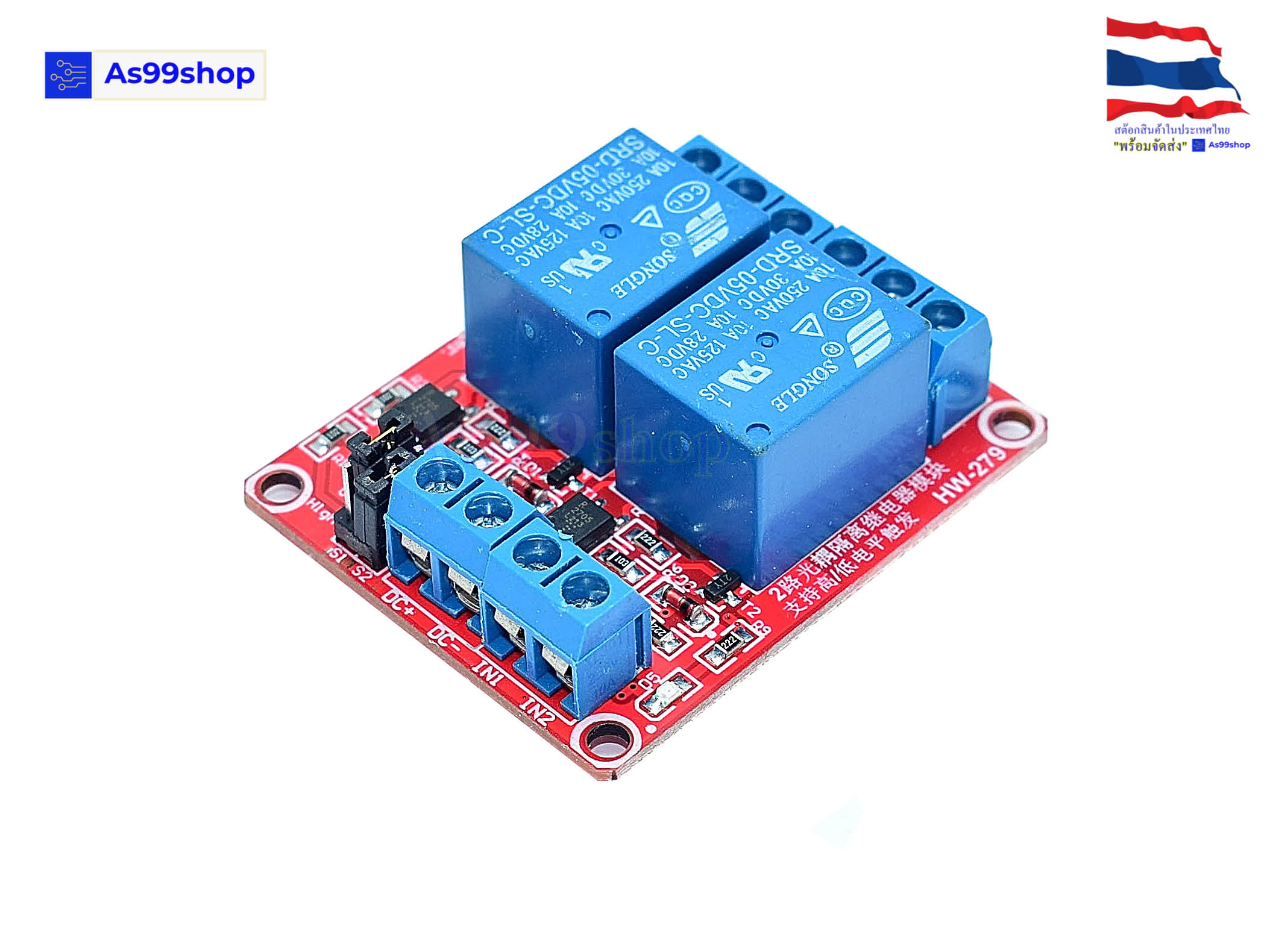

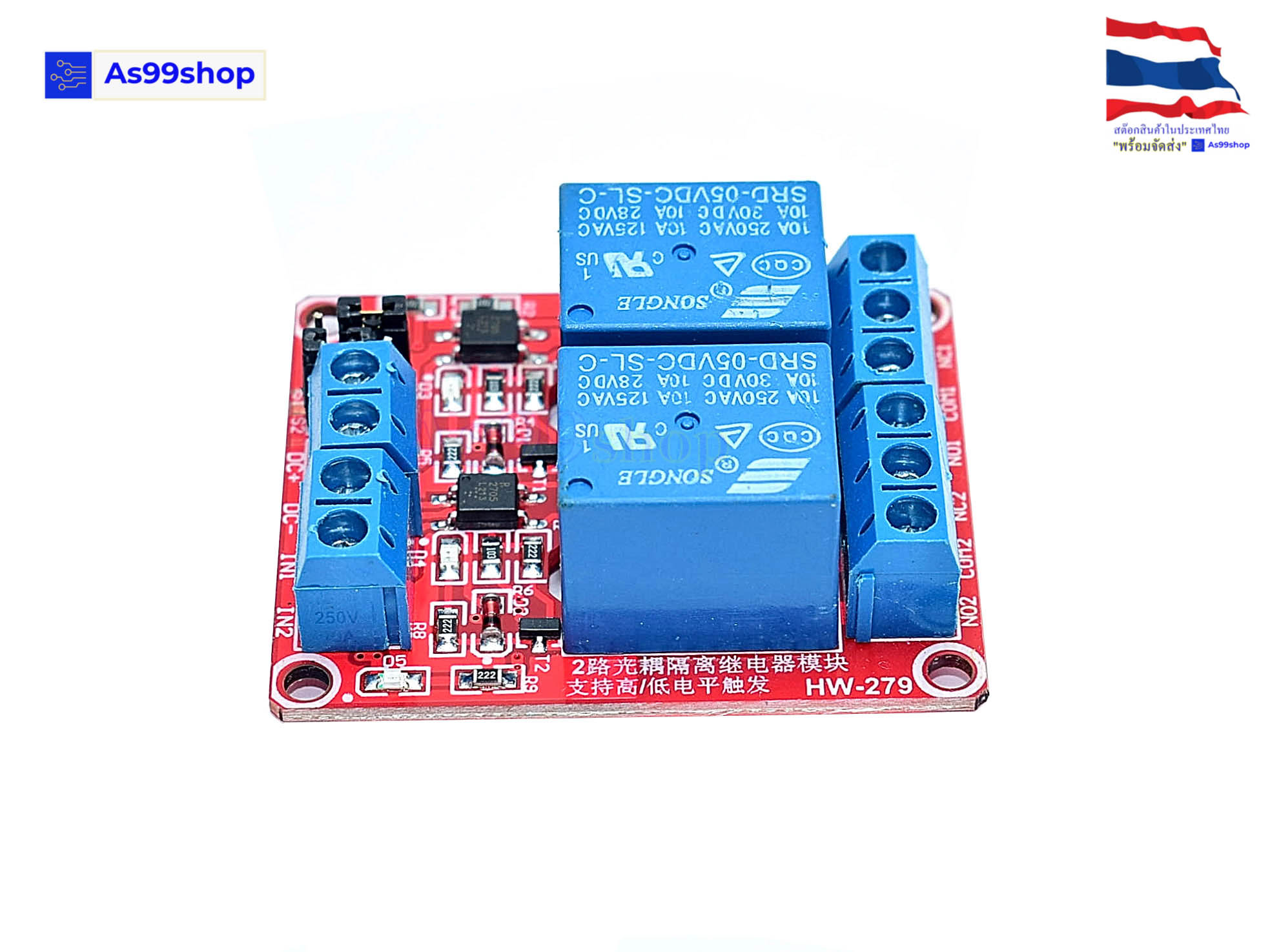

Relay 5v 2 Channel 10A 250V แบบ Active High/Low



Description:



1) the module uses the original loose music relay, normally open interfaces Maximum load: AC 250V / 10A, DC 30V /. 10A

2) using the original Toshiba SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA

3) Operating voltage 5V

4) the power indicator (green), relay status indicator (red) 7 , the power indicator light (green), the relay status indicator (red) 7 , the module can be set by the jumper high or low level trigger

5) fault-tolerant design, even if the control line break, the relay will not move;

6) the module size: 50mm * 41mm * 18.5mm (length * width * height)

7) with four fixed bolt holes, holes 3.1, the interface design is user-friendly, all interfaces can be directly connected through the terminal leads, very convenient

8) Mm, spacing 44.5mm * 35.5mm



Interfaces:



1) DC +: then the power supply positive (voltage according to the relay requirements 5V)

2) DC-: then the power supply negative

3) IN1: 1 signal trigger side, you can set the high or low level control relay pull

4) IN2: Trigger side, you can set the high or low level control relay pull



Relay output:



1) NO1: 1-way relay normally open interface, the relay before the pull-off, after the connection with COM1 short

2) COM1: 1 relay common interface

3) NC1: 1 relay normally closed interface, the relay before the convergence with COM1 short, pull after the floating

4) NO2: 2 relay normally open interface, the relay before the suspension, after absorbed and COM2 shorted

5) COM2: 2 relay common interface

6) NC2: 2-way normally closed relay interfaces, relay before and COM2 short, after the pull-vacant
